HEIDENHAIN MANUALplus 620 75
2.5 Units—Drilling in C axis

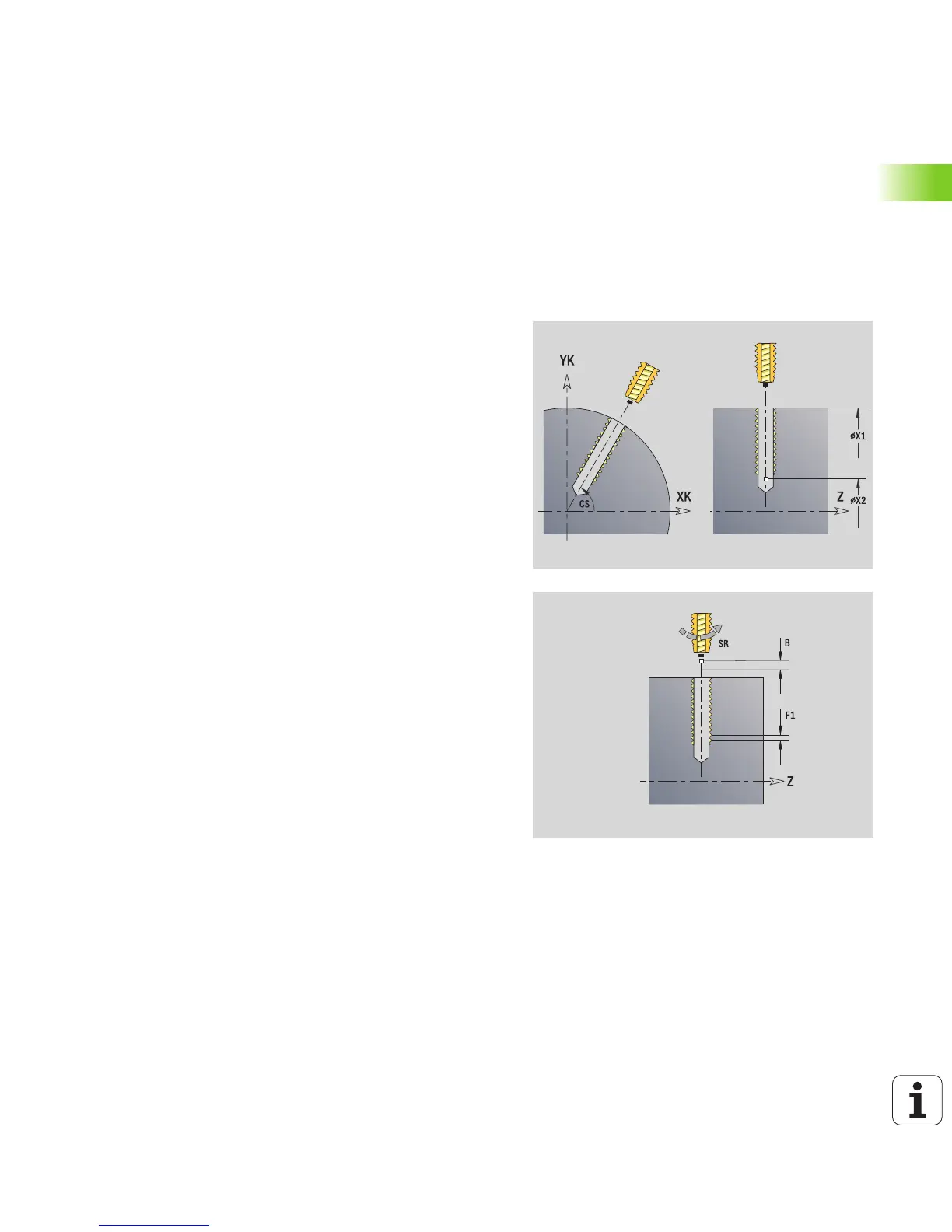

"Tap hole, lateral surface" unit
This unit machines a tap hole on the lateral surface of the workpiece.
Unit name: G73_Gew_Mant_C / Cycle: G73 (see page 296)
Use the retraction length for floating tap holders. The cycle
calculates a new nominal pitch on the basis of the thread depth, the
programmed pitch, and the retraction length. The nominal pitch is
somewhat smaller than the pitch of the tap. During tapping, the tap is
pulled away from the chuck by the retraction length. With this method
you can achieve higher service life from taps.
B Retraction distance
RI Internal safety clearance: Distance for reapproach inside
the hole (default: safety clearance SCK).
RB Return plane (default: return to the starting position or to
the safety clearance)
Further forms: see page 46
Access to the technology database:
 Machining operation: Tapping
 Affected parameter: S
Pattern form
CS Spindle angle
APP Approach see page 51
DEP Departure see page 51
Cycle form
X1 Start point drill (starting point of hole; diameter value)
X2 End point drill (end point of hole; diameter value)
F1 Thread pitch
B Run-in length
L Retraction length when using floating tap holders
(default: 0)
SR Return speed (default: Tapping speed)
Further forms: see page 46
