146 smart.Turn Units for the Y Axis
3.1 Units—Drilling in Y Axis
"ICP boring/countersinking, Y axis" unit

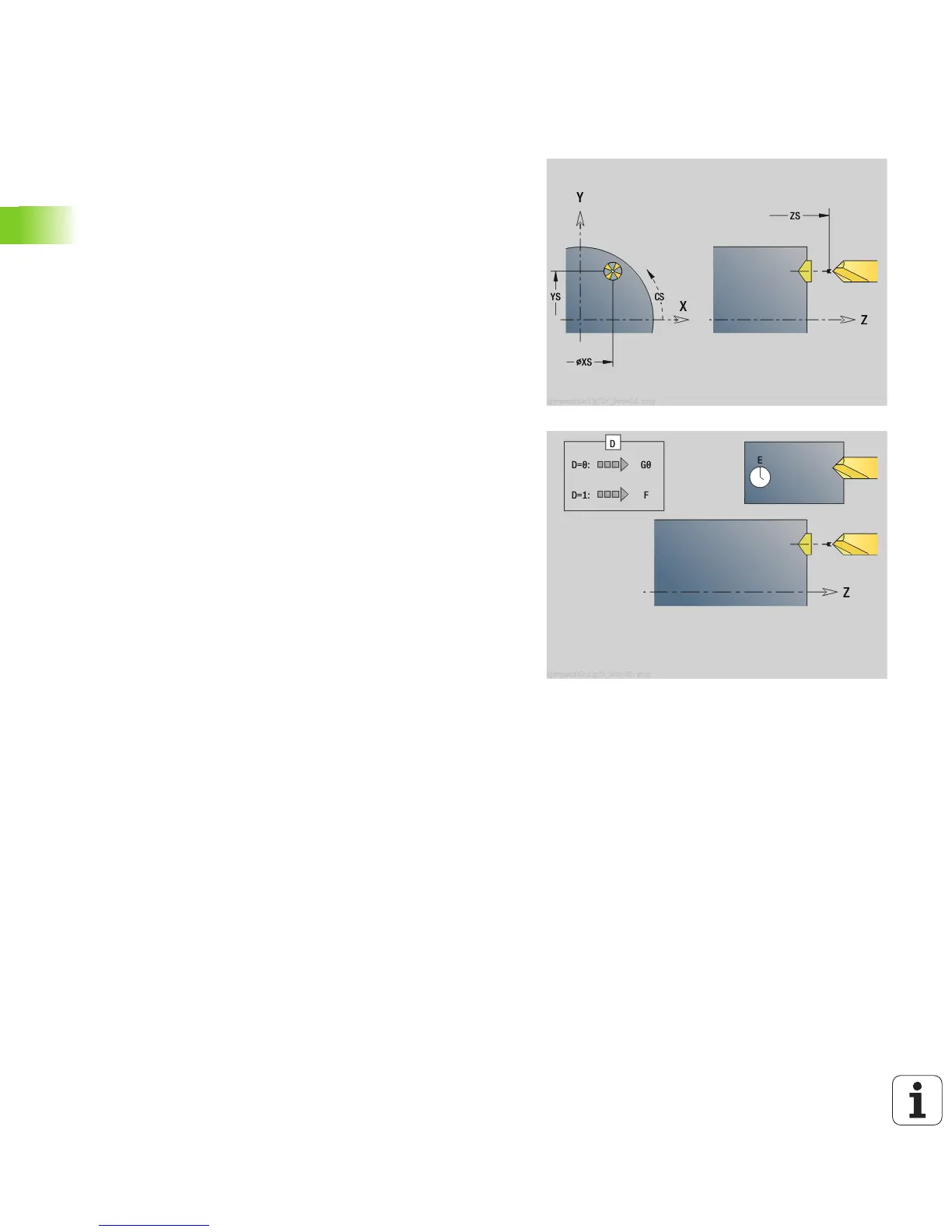

The unit machines a single hole or a hole pattern in the XY or YZ plane.
Using ICP, you define the hole positions as well as further details for
boring or countersinking.
Unit name: G72_ICP_Y / Cycle: G72 (see page 295)
Access to the technology database:
 Machining mode: Drilling
 Affected parameters: F, S
Parameters on the Pattern form
FK see page 48
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
E Delay (dwell time at end of hole) (default: 0)
D Retraction at
 0: Rapid traverse
 1: Feed rate
RB Return plane (default: return to the starting position or to
the safety clearance)
Further forms: see page 46
