HEIDENHAIN MANUALplus 620 207

4.7 Front and Rear Face Contours

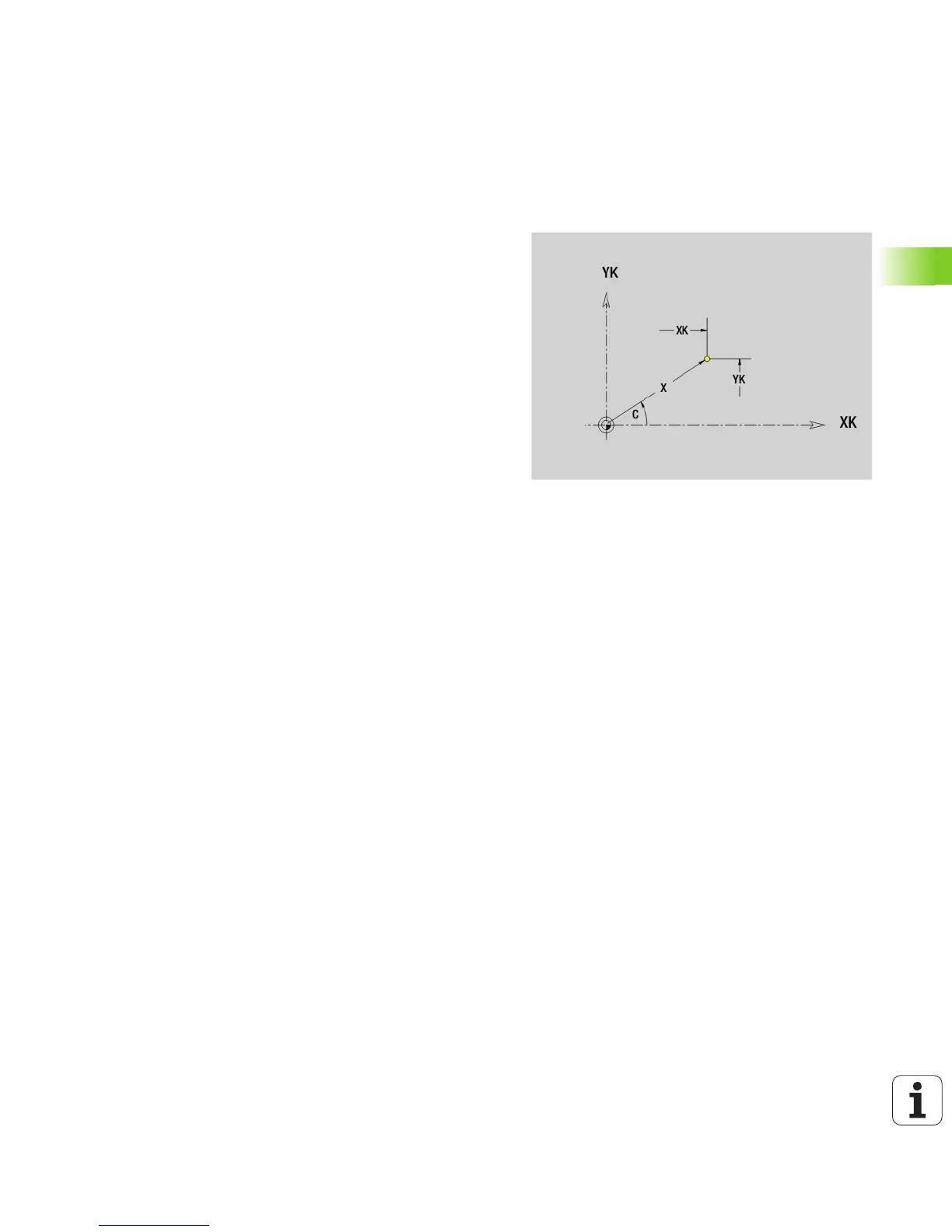

Starting point of front/rear face contour G100-

Geo

G100 defines the starting point of a front or rear face contour.

Parameters

X Starting point in polar coordinates (diameter)

C Starting point in polar coordinates (angular dimension)

XK Starting point in Cartesian coordinates

YK Starting point in Cartesian coordinates
