HEIDENHAIN MANUALPLUS 620 User Manual

HEIDENHAIN MANUALplus 620 221
4.8 Lateral Surface Contours

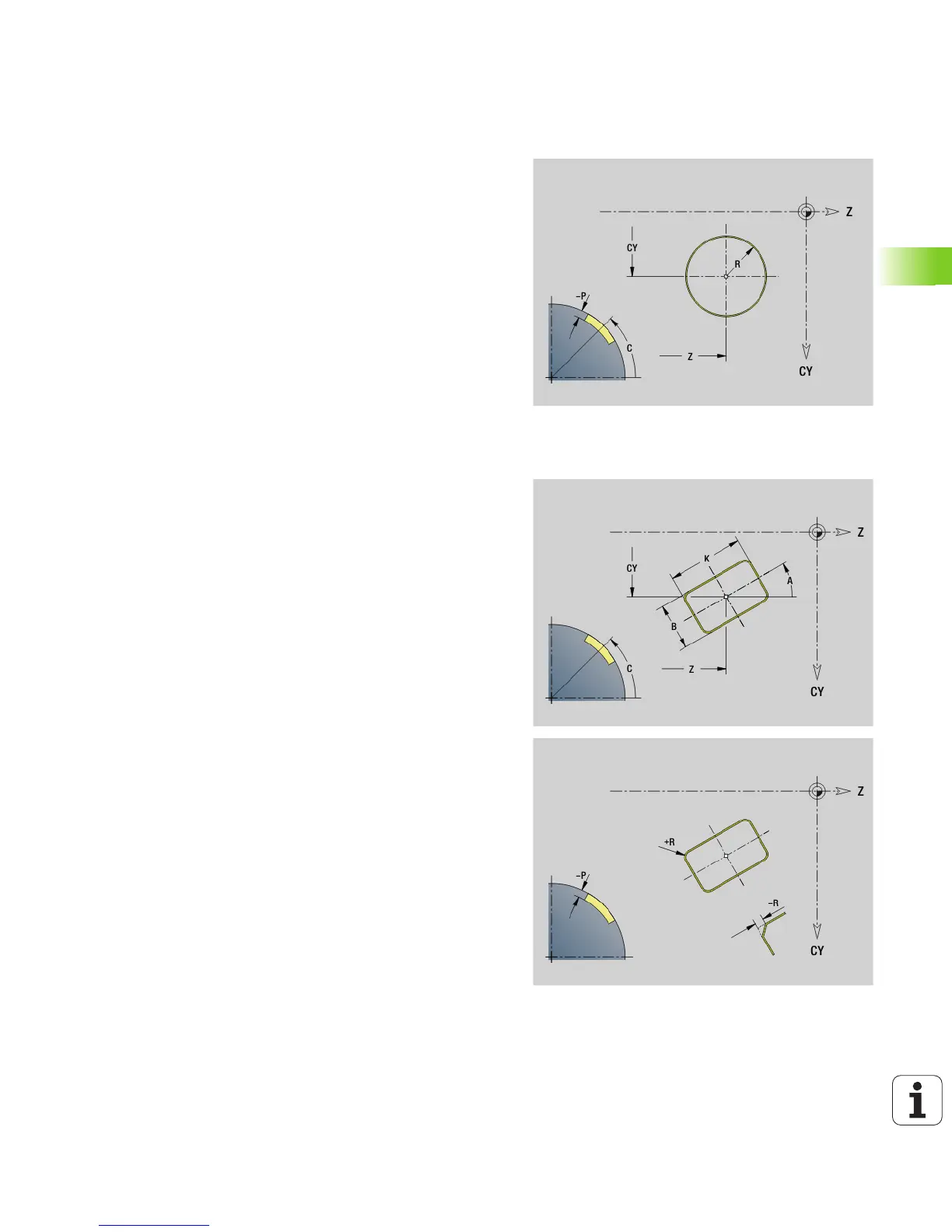

Full circle on lateral surface G314-Geo
G314 defines a full circle in a lateral-surface contour.
Rectangle on lateral surface G315-Geo
G315 defines a rectangle in a lateral-surface contour.
Parameters
Z Center
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
R Radius
P Pocket depth (default: “P” from G308)
Parameters
Z Center
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
A Angle to Z axis (default: 0°)
K Length
BWidth
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Pocket depth (default: “P” from G308)
