HEIDENHAIN MANUALplus 620 261
4.17 Contour-Based Turning Cycles

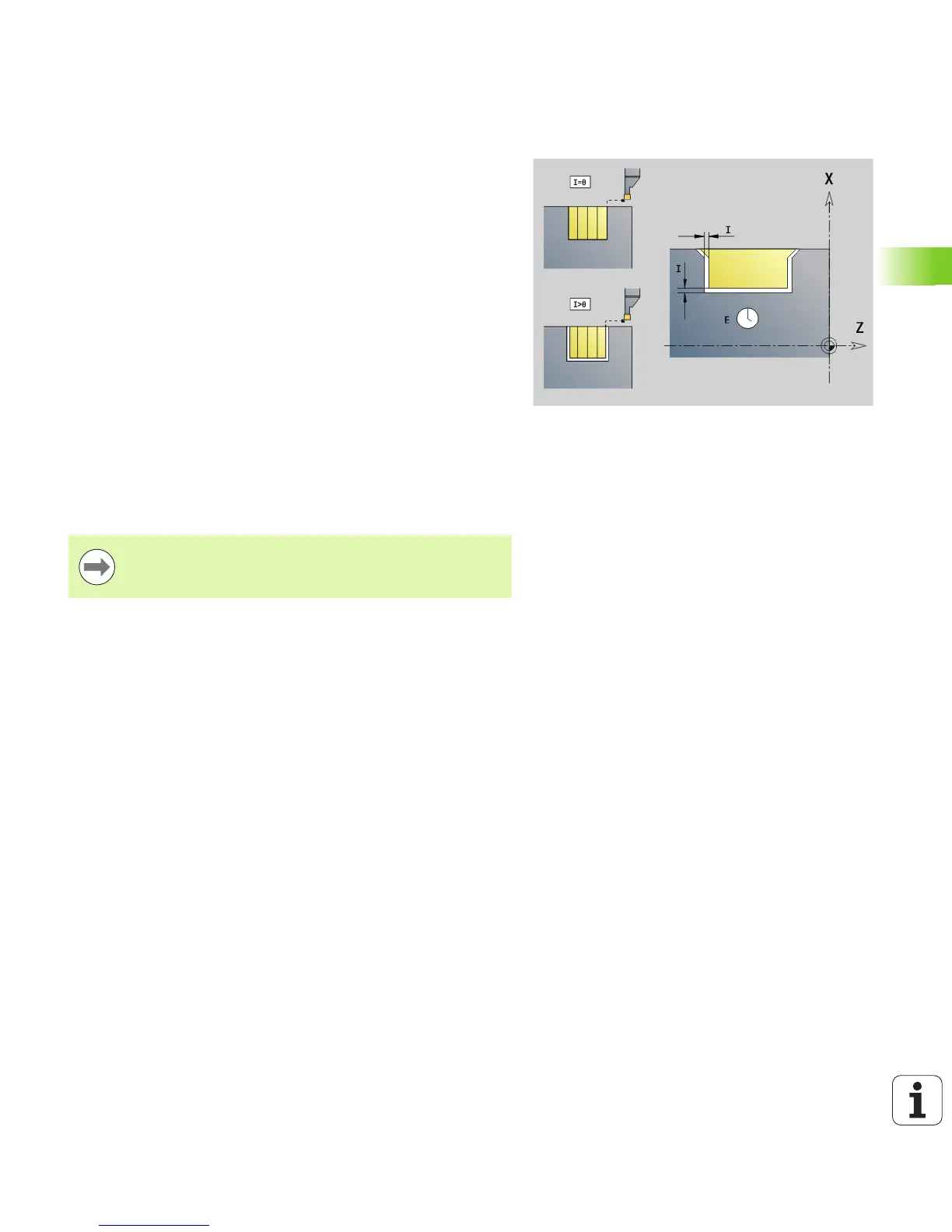

Recessing cycle G870
G870 generates a recess defined by G22-Geo. The MANUALplus uses
the tool definition to distinguish between external and internal
machining, or between radial and axial recesses.
Parameters
ID Auxiliary contour—ID number of the contour to be machined
NS Block number (reference to G22-Geo)
I Oversize for roughing (default: 0)
 I=0: Recess is made in one work step.
 I>0: The first operation is roughing, the second finishing.
E Dwell time (default: Time for one spindle revolution)
 If I=0: For every recess
 If I>0: Only for finishing
Calculation of cutting segmentation:
Maximum offset = 0.8 * cutting width
 The tool radius compensation: is active.
 An Oversize is not taken into account.
Cycle run
1 Calculates the number of cutting passes.
2 Approaches workpiece from starting point for first pass.
 Radial recess: First Z, then X direction
 Axial recess: First X, then Z direction
3 Executes the first cut according to I.
4 Returns at rapid traverse and approaches for next pass.
5 If I=0: Dwells for time E
6 Repeats 3 to 4 until the complete recess has been machined.
7 If I>0: Finish machines the contour
