HEIDENHAIN MANUALplus 620 125
2.10 Units—Milling, Lateral Surface

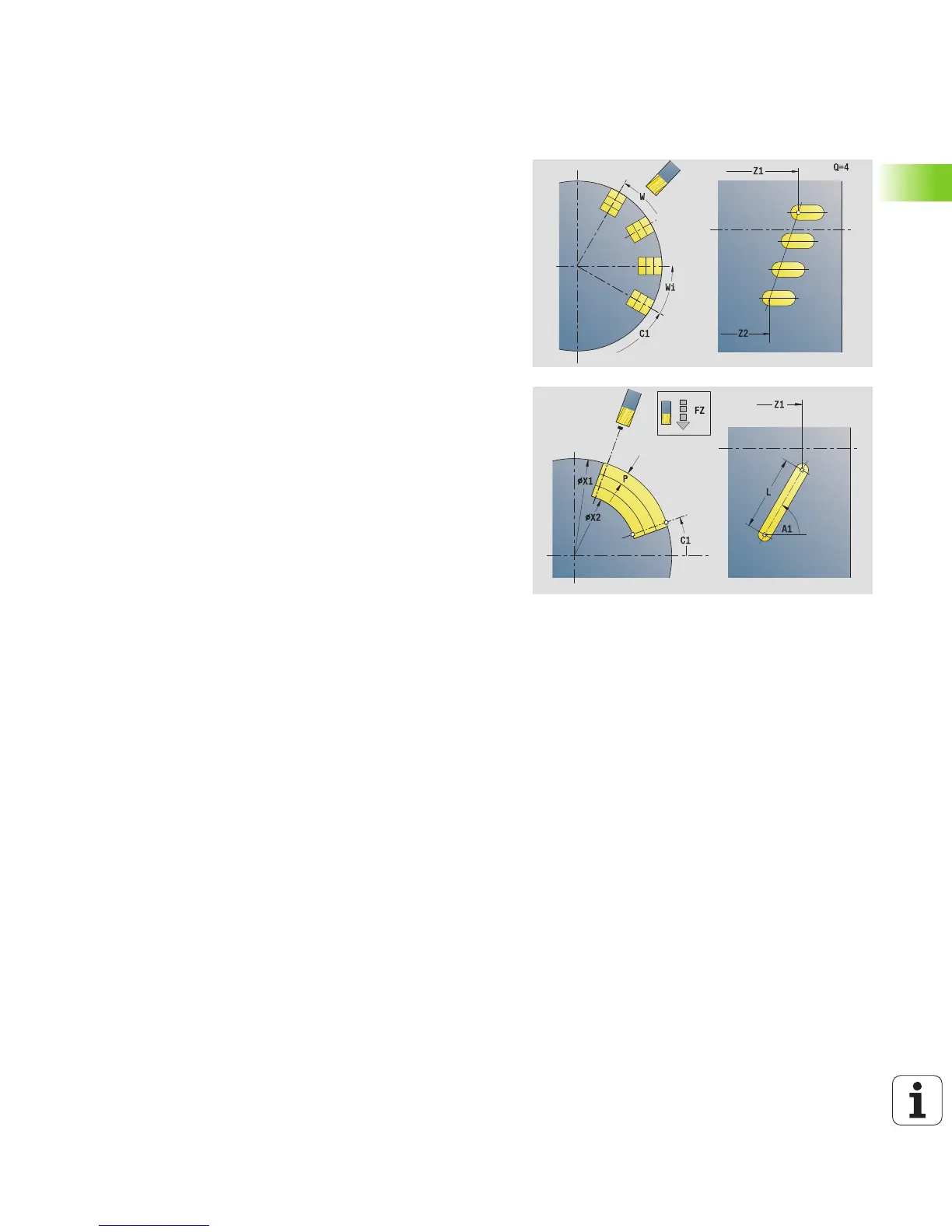

"Linear slot pattern, lateral surface" unit
The unit machines a linear slot pattern in which the individual features
are arranged at a regular spacing on the lateral surface. The starting
points of the slots correspond to the pattern positions. You define the
length and the position of the slots in the unit. The slot width equals
the diameter of the milling cutter.
Unit name: G792_Lin_Mant_C / Cycle: G792 (see page 318)
Access to the technology database:
 Machining operation: Milling
 Affected parameters: F, S, FZ, P
Pattern form
Q Number of slots
Z1, C1 Starting point of pattern
Wi Angle increment
W Final angle
Z2 End point of pattern
Cycle form
X1 Milling top edge (diameter value)
X2 Milling floor (diameter)
L Slot length
A1 Angle to Z axis
P Maximum infeed
FZ Infeed rate
Further forms: see page 46
