122 smart.Turn Units
2.9 Units—Milling, Face
"Engraving, face" unit

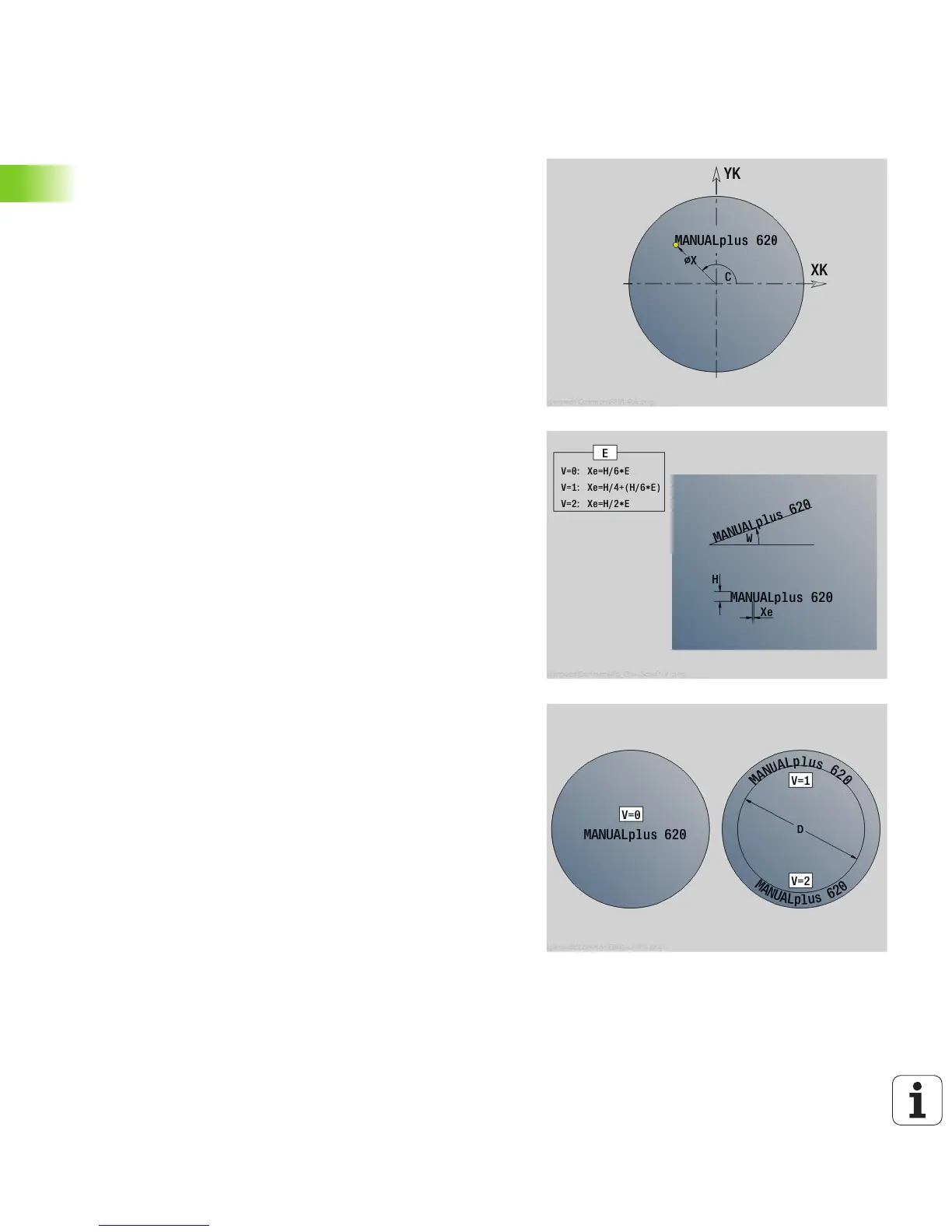

The unit engraves character strings in linear or polar layout on the face
of the workpiece. Diacritics and special characters that you cannot
enter in the smart.Turn editor can be defined, character by character,
in NF. If you program "Continue from last text" (Q=1), tool change and
pre-positioning are suppressed. The technological data of the previous
engraving cycle apply.
Unit name: G801_GRA_STIRN_C / Cycle: G801 (see page 346)
Character set: see page 345
Access to the technology database:
Machining operation: Engraving
Affected parameters: F, S
Position form
X, C Polar starting point
XK, YK Cartesian starting point
Z Final point. Z position, infeed depth during milling.
RB Return plane
APP Approach: see page 51
DEP Departure: see page 51
Cycle form
TXT Text to be engraved
NF Character number (character to be engraved)
H Font height
E Distance factor (for calculation see figure)
W Inclination angle
V Execution
0: Linear
1: Arched above
2: Arched below
D Reference diameter
Q Continue from last text
0 (No): Engraving starts at the starting point
1 (Yes): Engraving starts at the tool position
Further forms: see page 46
