5.3 Contours in the YZ Plane

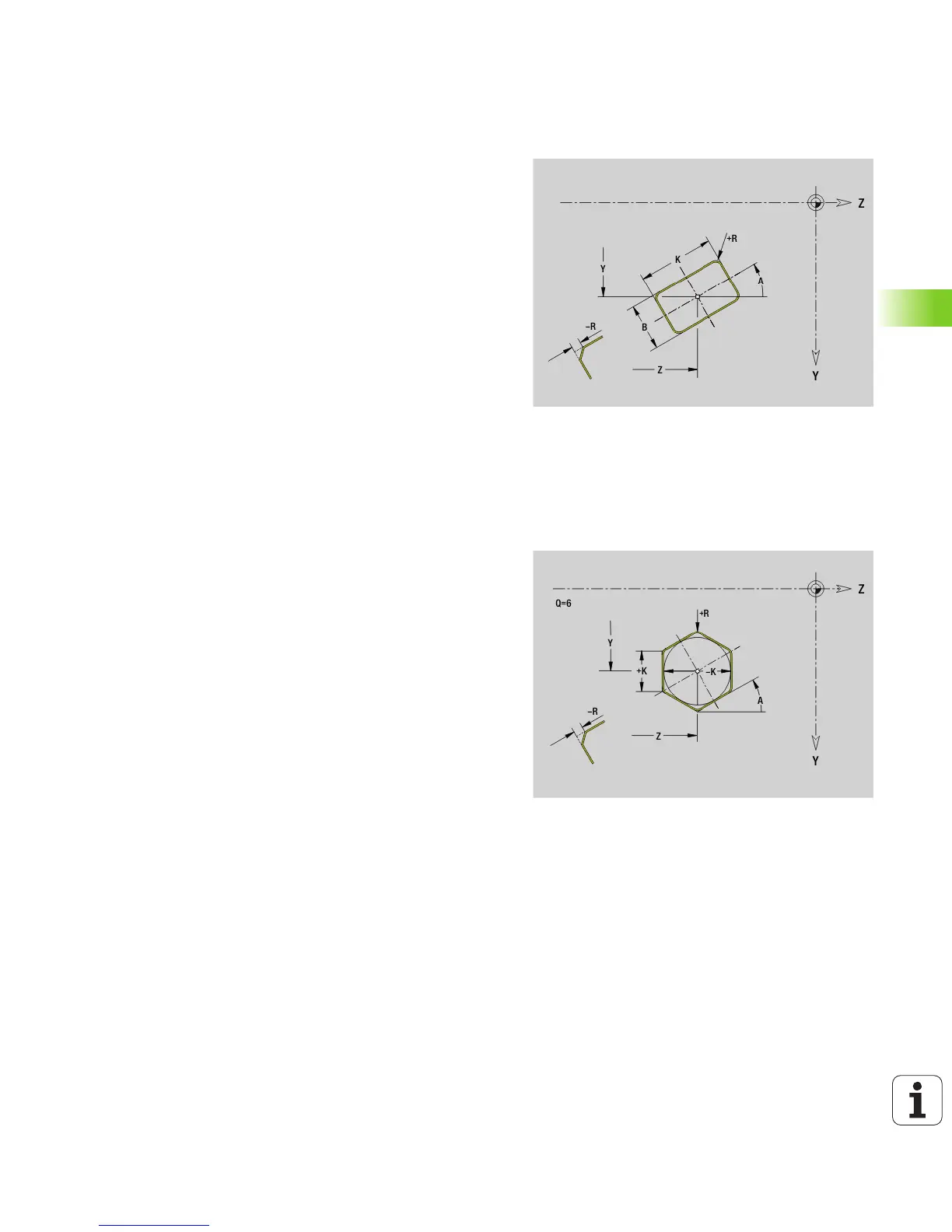

Rectangle in YZ plane G385-Geo
G385 defines a rectangle in the YZ plane.
Eccentric polygon in YZ plane G387-Geo
G387 defines the contour of an eccentric polygon in the YZ plane.
Parameters
Y Center of rectangle
Z Center of rectangle
X Reference diameter
 No entry: “X” from section code
 “X” overwrites “X” from section code
A Position angle (reference: positive Z axis; default: 0°)
K Length of rectangle
B Width of rectangle
R Chamfer/rounding (default: 0)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Pocket depth (default: “P” from G308)
Parameters
Y Center point of polygon
Z Center point of polygon
X Reference diameter
 No entry: “X” from section code
 “X” overwrites “X” from section code
Q Number of corners (Q >= 3)
A Position angle (reference: positive Z axis; default: 0°)
K Edge length / width across flats
 K>0: Edge length
 K<0: Width across flats (inside diameter)
R Chamfer/rounding—default: 0
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Pocket depth (default: “P” from G308)
