HEIDENHAIN MANUALPLUS 620 User Manual

212 ISO Programming
4.7 Front and Rear Face Contours

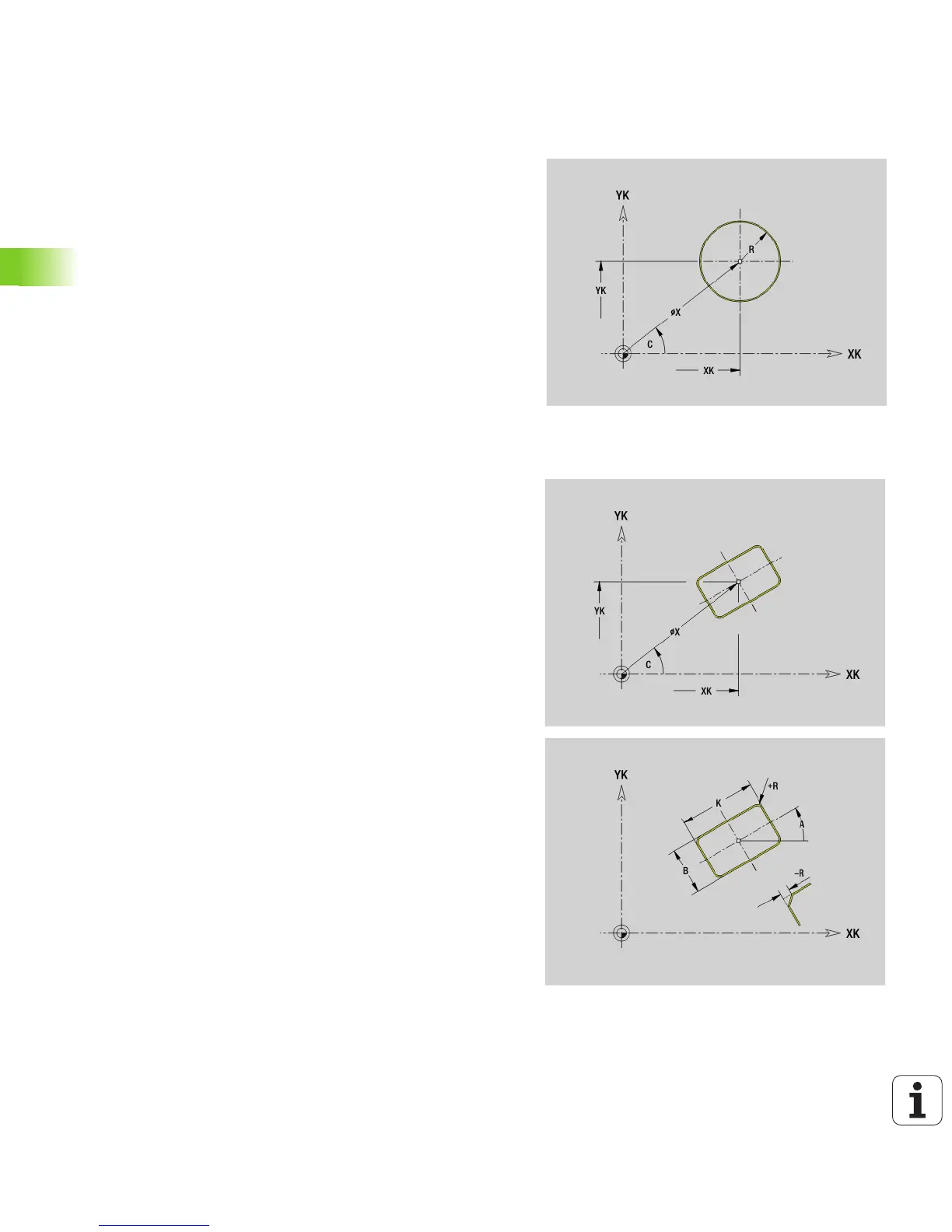

Full circle on front/rear face G304-Geo
G304 defines a full circle in a contour on the front face/rear face.
Rectangle on front/rear face G305-Geo
G305 defines a rectangle in a contour on the front face/rear face.
Parameters
XK Center in Cartesian coordinates
YK Center in Cartesian coordinates
X Diameter (center point in polar coordinates)
C Angle (center point in polar coordinates)
R Radius
P Depth/height (default: “P” from G308)
 P<0: Pocket
 P>0: Island
Parameters
XK Center in Cartesian coordinates
YK Center in Cartesian coordinates
X Diameter (center point in polar coordinates)
C Angle (center point in polar coordinates)
A Angle to XK axis (default: 0°)
K Length
B (Height) width
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Depth/height (default: “P” from G308)
 P<0: Pocket
 P>0: Island
