HEIDENHAIN MANUALplus 620 309
4.24 Front/Rear-Face Machining
4.24 Front/Rear-Face Machining

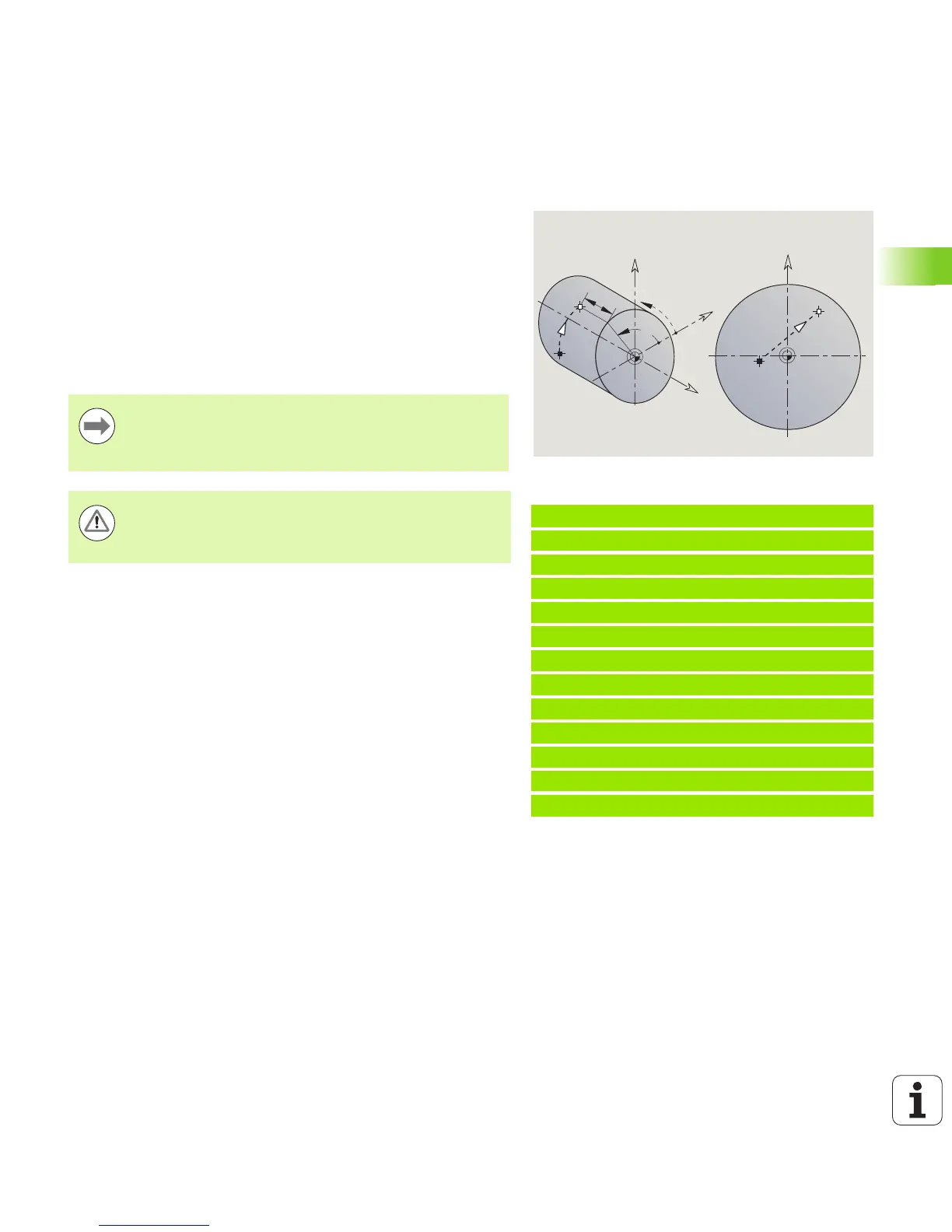

Rapid traverse on front/rear face G100
G100 moves at rapid traverse along the shortest path to the end point.
Example: G100
. . .
N1 T7 G197 S1200 G195 F0.2 M104
N2 M14
N3 G110 C0
N4 G0 X100 Z2
N6 G100 XK20 YK5 [rapid traverse on face]
N7 G101 XK50
N8 G103 XK5 YK50 R50
N9 G101 XK5 YK20
N10 G102 XK20 YK5 R20
N11 G14
N12 M15
. . .
G100
G110
YK
XK
Z
C
CY
Z
YK
Parameters
X Final point (diameter)
C Final angle—for angle direction, see help graphic
XK Final point (Cartesian)
YK Final point (Cartesian)
Z Final point (default: current Z position)
Programming:
 X, C, XK, YK, Z: Absolute, incremental or modal
 Program either X–C or XK–YK
Danger of collision!
During G100 the tool moves on a linear path. To position
the workpiece to a defined angle, use G110.
