390 DIN Programming for the Y Axis
5.2 Contours in the XY Plane

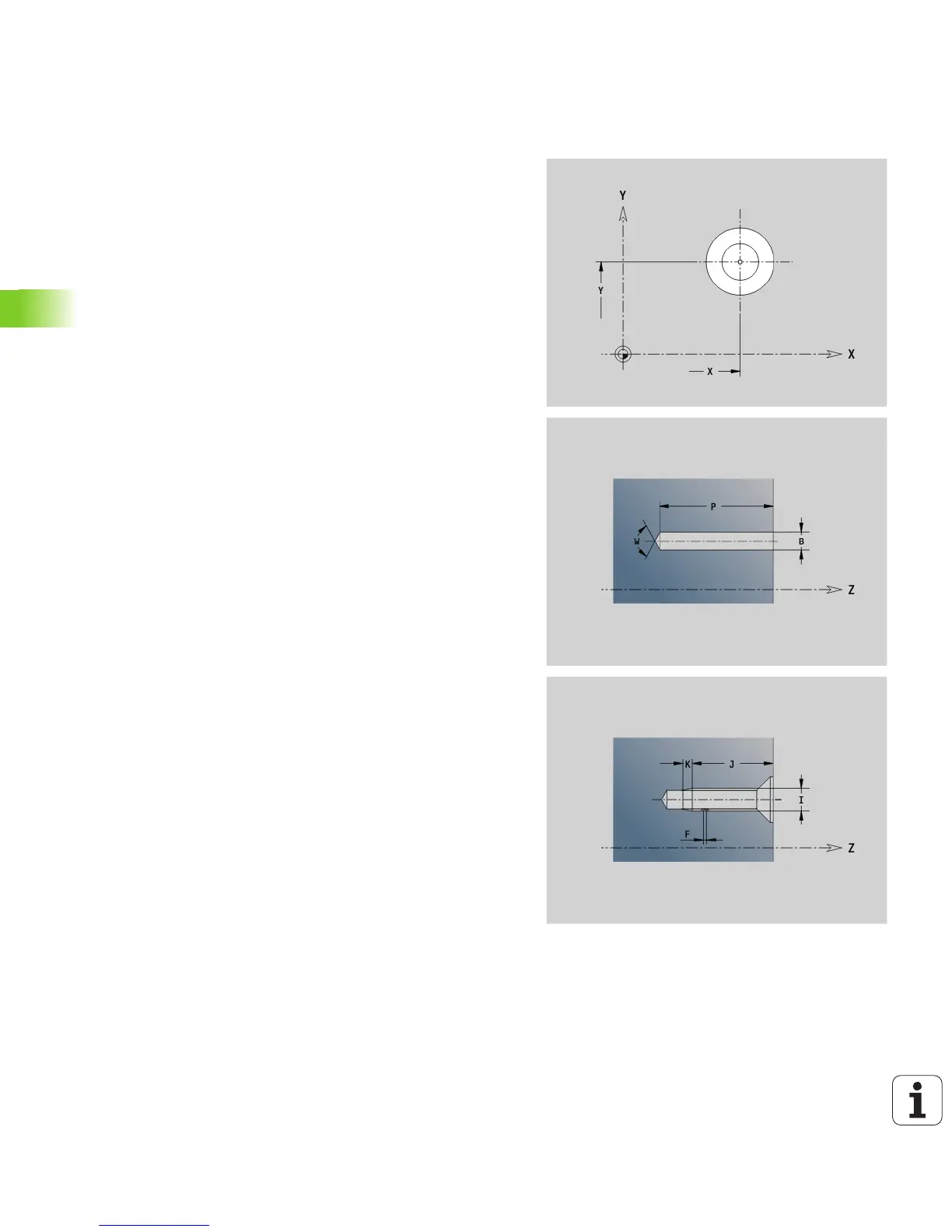

Hole in XY plane G370-Geo
G370 defines a hole with countersinking and thread in the XY plane.
Parameters
X Center of hole (radius)
Y Center of hole
B Diameter of hole
P Depth of hole (excluding point)
W Point angle (default: 180°)
R Sinking diameter
U Sinking depth
E Sinking angle
I Thread diameter
J Thread depth
K Start of thread (runout length)
F Thread pitch
V Left-hand or right-hand thread (default: 0)
0: Right-hand thread
1: Left-hand thread
A Angle to Z axis. inclination of the hole
Front face (range: –90° < A < 90°, default: 0°)
Rear side (range: 90° < A < 270°, default: 180°)
O Centering diameter
