HEIDENHAIN MANUALplus 620 347
4.27 Engraving Cycles

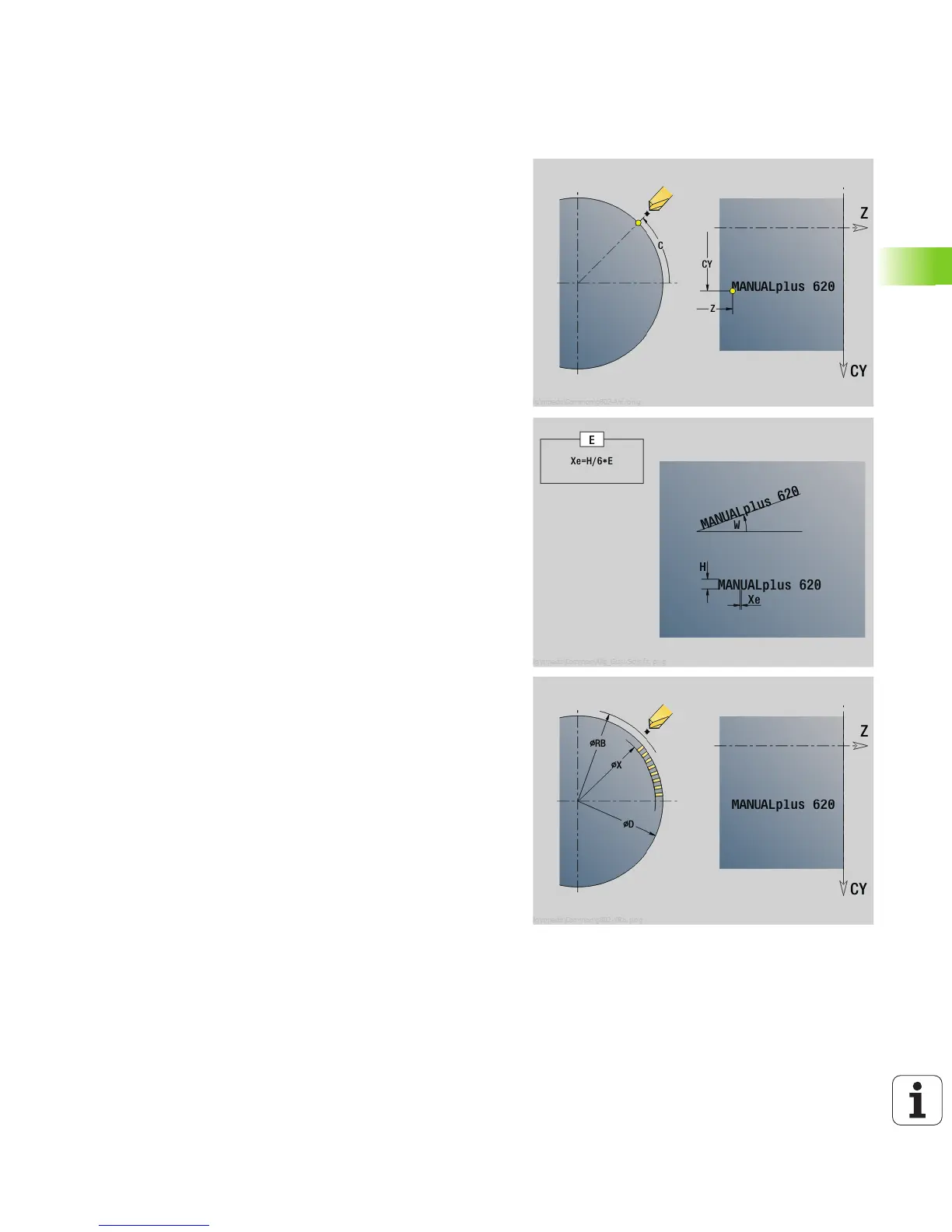

Engraving on lateral surface G802
G802 engraves character strings aligned linearly on the lateral surface.
For character table and more information, see page 345
The cycles start engraving from the starting position or from the
current position, if no starting position is defined.
Example: If a character string is engraved with several calls, define the
starting position in the first call. All other calls are programmed without
a starting position.
Parameters
Z Start point
C Start angle
CY Start point
X Final point (diameter). X position, infeed depth during milling.
RB Return plane. X position retracted to for positioning.
ID Text to be engraved
NF Character number. ASCII code of the character to be
engraved
W Inclination angle
H Font height
E Distance factor (for calculation see figure)
D Reference diameter
