HEIDENHAIN MANUALPLUS 620 User Manual

400 DIN Programming for the Y Axis
5.3 Contours in the YZ Plane

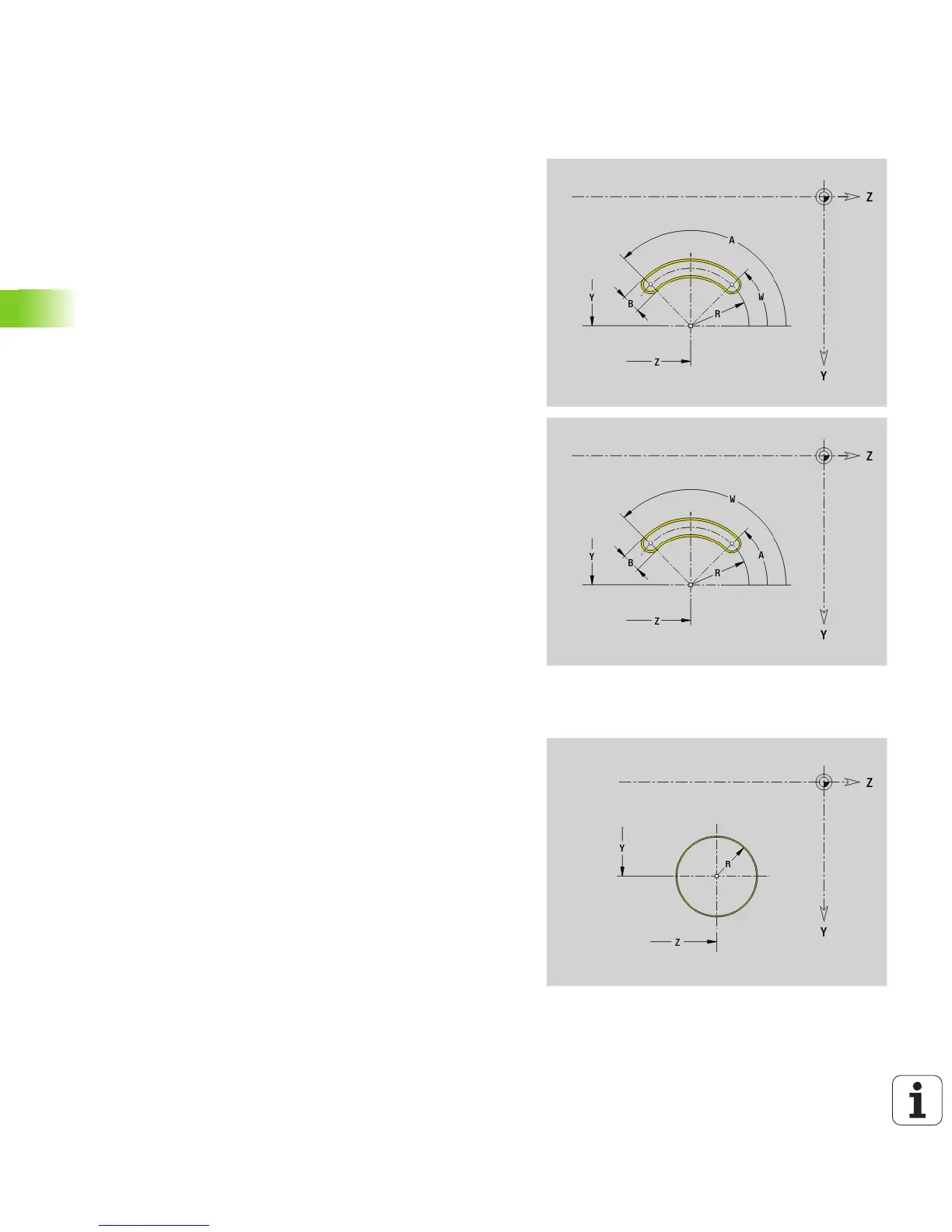

Circular slot in YZ plane G382-Geo/G383-Geo
G382/G383 defines a circular slot in the YZ plane.
 G382: Circular slot clockwise
 G383: Circular slot counterclockwise
Full circle in YZ plane G384-Geo
G384 defines a full circle in the YZ plane.
Parameters
Y Center of slot curvature
Z Center of slot curvature
X Reference diameter
 No entry: “X” from section code
 “X” overwrites “X” from section code
R Radius (reference: center point path of the slot)
A Starting angle (reference: X axis; default: 0°)
W Final angle (reference: X axis; default: 0°)
BSlot width
P Pocket depth (default: “P” from G308)
Parameters
Y Center of circle
Z Center of circle
X Reference diameter
 No entry: “X” from section code
 “X” overwrites “X” from section code
R Circle radius
P Pocket depth (default: “P” from G308)
