HEIDENHAIN MANUALplus 620 267
4.18 Contour Definitions in the Machining Section

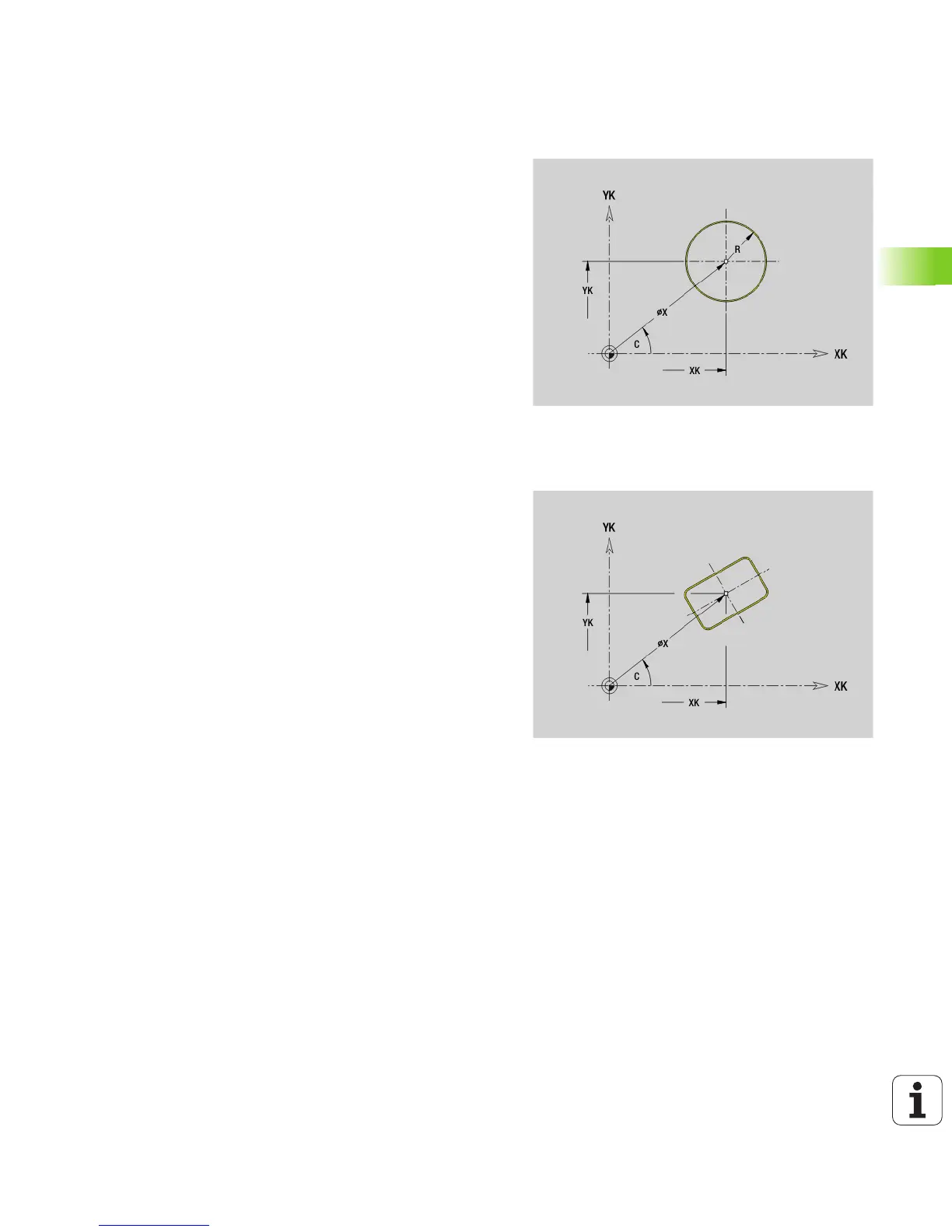

Full circle on front/rear face G304
G304 defines a full circle in a contour on the front face/rear face.
Program this figure in conjunction with G840, G845 or G846.
Rectangle on front/rear face G305
G305 defines a rectangle in a contour on the front face/rear face.
Program this figure in conjunction with G840, G845 or G846.
Parameters
XK Center in Cartesian coordinates
YK Center in Cartesian coordinates
X Diameter (center point in polar coordinates)
C Angle (center point in polar coordinates)
R Radius
P Depth/Height
 P<0: Pocket
 P>0: Island
Parameters
XK Center in Cartesian coordinates
YK Center in Cartesian coordinates
X Diameter (center point in polar coordinates)
C Angle (center point in polar coordinates)
A Angle to XK axis (default: 0°)
K Length
B (Height) width
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Depth/Height
 P<0: Pocket
 P>0: Island
