5.7 Milling Cycles for the Y Axis

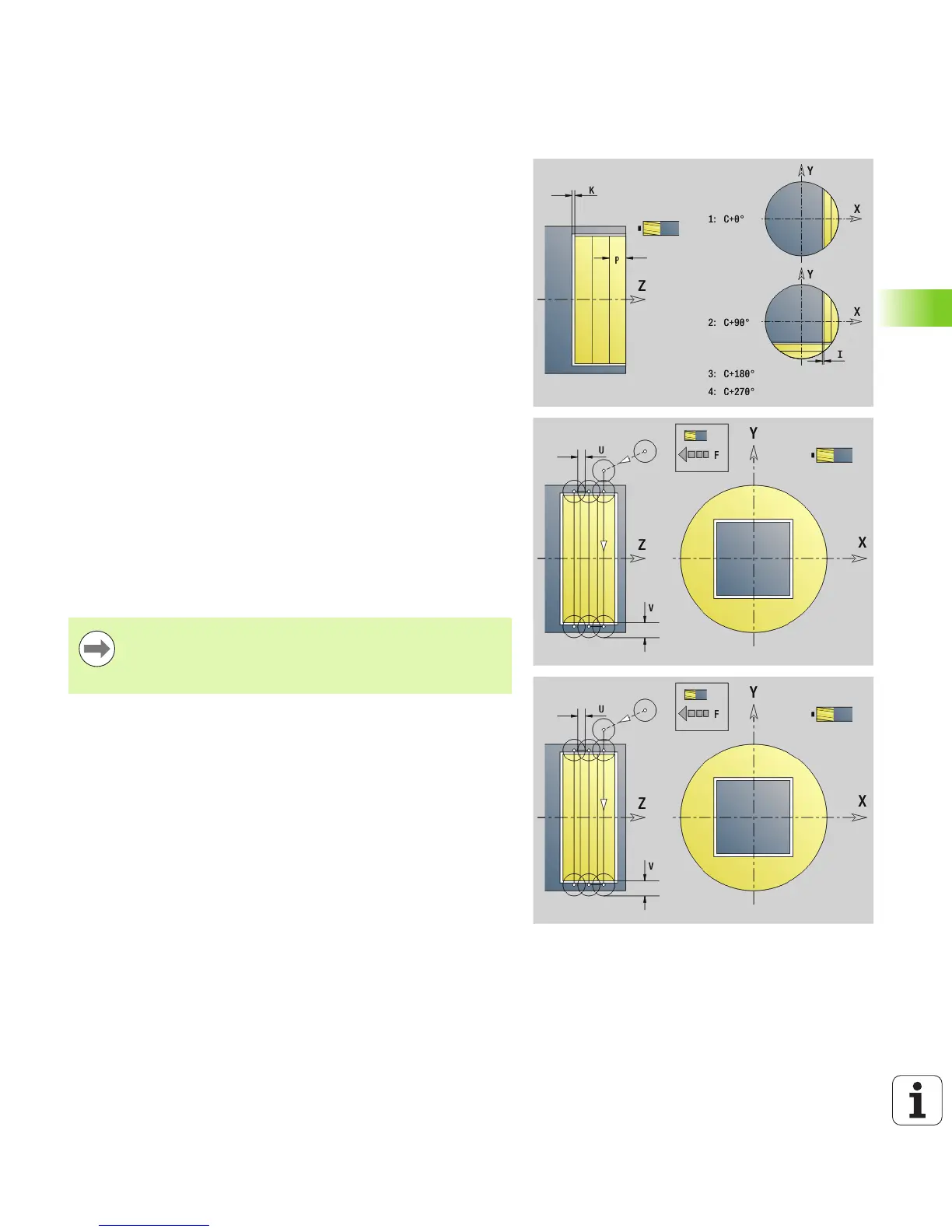

Centric polygon milling—roughing G843
G843 roughs centric polygons defined with G477-Geo (XY plane) or
G487-Geo (YZ plane). The cycle mills from the outside toward the
inside. The tool moves to the working plane outside of the workpiece
material.
Parameters
ID Milling contour—name of the contour to be milled
NS Block number—reference to the contour description
P Milling depth (maximum infeed in the working plane)
I Oversize in X direction
K Oversize in Z direction
U (Minimum) overlap factor. Defines the overlap of milling paths
(default: 0.5).
Overlap = U*milling diameter
V Overrun factor. Defines the distance by which the tool should
pass the outside radius of the workpiece (default: 0.5).
Overrun = V*milling diameter
F Approach feed for infeed (default: active feed rate)
RB Return plane (default: back to starting position)
 XY plane: Retraction position in Z direction
 YZ plane: Retraction position in X direction (diameter)
Oversizes are taken into account:
 G57: Oversize in X, Z direction
 G58: Equidistant oversize in the milling plane
Cycle run
1 Starting position (X, Y, Z, C) is the position before the cycle
begins.
2 Calculate the proportioning of cuts (infeeds to the milling planes,
infeeds in the milling depths) and the spindle positions.
3 Spindle turns to the first position. The tool moves to the safety
clearance and plunges to the first milling depth.
4 Mill the first plane.
5 Retract by the safety clearance, return and cut to the next milling
depth.
6 Repeat steps 4 and 5 until the complete area is milled.
7 The tool returns to “retraction plane J.” The spindle turns to the
next position. The tool moves to the safety clearance and plunges
to the first milling depth.
8 Repeat steps 4 to 7 until all polygonal surfaces are milled.
9 Returns to retraction plane RB.
