150 smart.Turn Units for the Y Axis
3.2 Units—Predrilling in Y axis

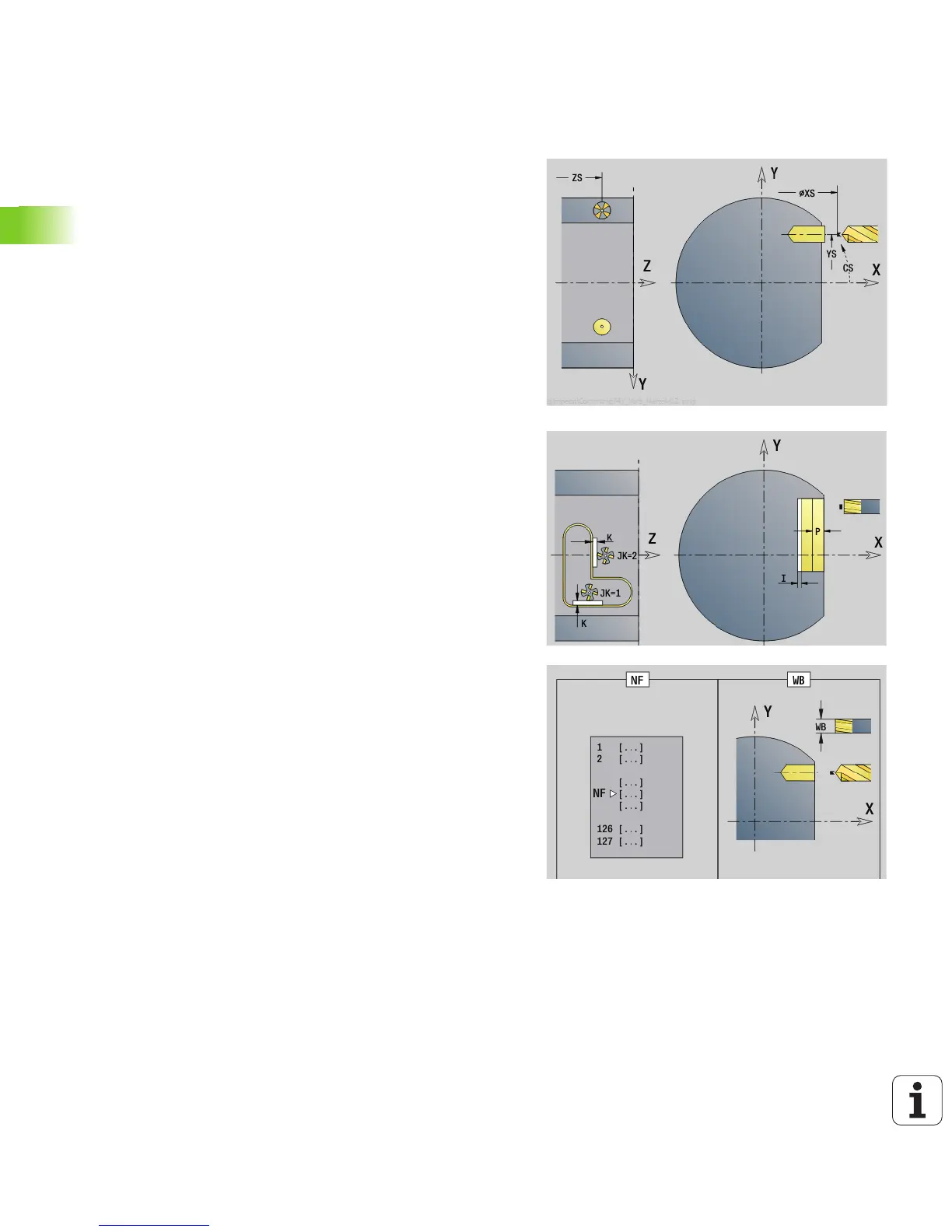

"Predrill, contour mill, ICP in YZ plane" unit
The unit determines the hole position and machines the hole. The
subsequent milling cycle obtains the hole position from the reference
stored in NF. If the milling contour consists of multiple sections, the
unit machines a hole for each section.
Unit name: DRILL_MAN_840_Y / Cycles: G840 A1 (see page 328);
G71 (see page 293)
Access to the technology database:
Machining mode: Drilling
Affected parameters: F, S
Parameters on the Contour form
FK see page 48
X1 Milling top edge (diameter value)
P2 Depth of contour (radius value)
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
JK Milling location
JK=0: On the contour
JK=1, closed contour: Within the contour
JK=1, open contour: Left of the contour
JK=2, closed contour: Outside the contour
JK=2, open contour: Right of the contour
JK=3: Depends on H and MD
H Mill cutting direction
0: Up-cut milling
1: Climb milling
I Contour-parallel oversize
K Infeed-direction oversize
R Approach radius
WB Cutter diameter
NF Position mark
E Delay (dwell time at end of hole) (default: 0)
D Retraction at
0: Rapid traverse
1: Feed rate
