392 DIN Programming for the Y Axis
5.2 Contours in the XY Plane

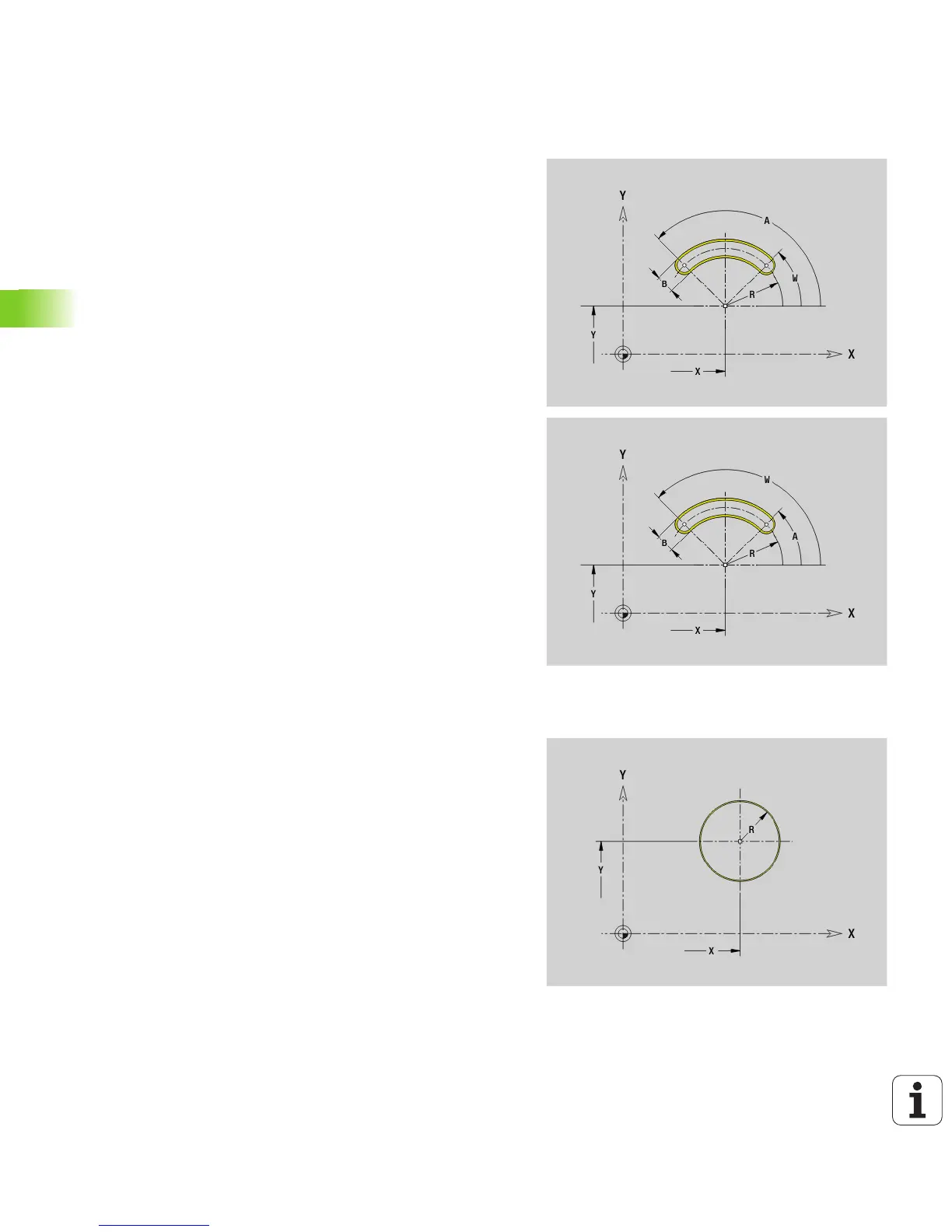

Circular slot in XY plane G372-Geo/G373-Geo
G372/G373 defines a circular slot in the XY plane.
G372: Circular slot clockwise
G373: Circular slot counterclockwise
Full circle in XY plane G374-Geo
G374 defines a full circle in the XY plane.
Parameters
X Center of slot curvature (radius)
Y Center of slot curvature
R Curvature radius (reference: center point path of the slot)
A Starting angle (reference: positive X axis; default: 0°)
W Final angle (reference: positive X axis; default: 0°)
BSlot width
P Depth/height (default: “P” from G308)
P<0: Pocket
P>0: Island
I Limit diameter (as cutting limit)
No entry: “X” from section code
“I” overwrites “X” from section code
Parameters
X Circle center (radius)
Y Circle center
R Circle radius
P Depth/height (default: “P” from G308)
P<0: Pocket
P>0: Island
I Limit diameter (as cutting limit)
No entry: “X” from section code
“I” overwrites “X” from section code
