144 smart.Turn Units for the Y Axis
3.1 Units—Drilling in Y Axis
3.1 Units—Drilling in Y Axis

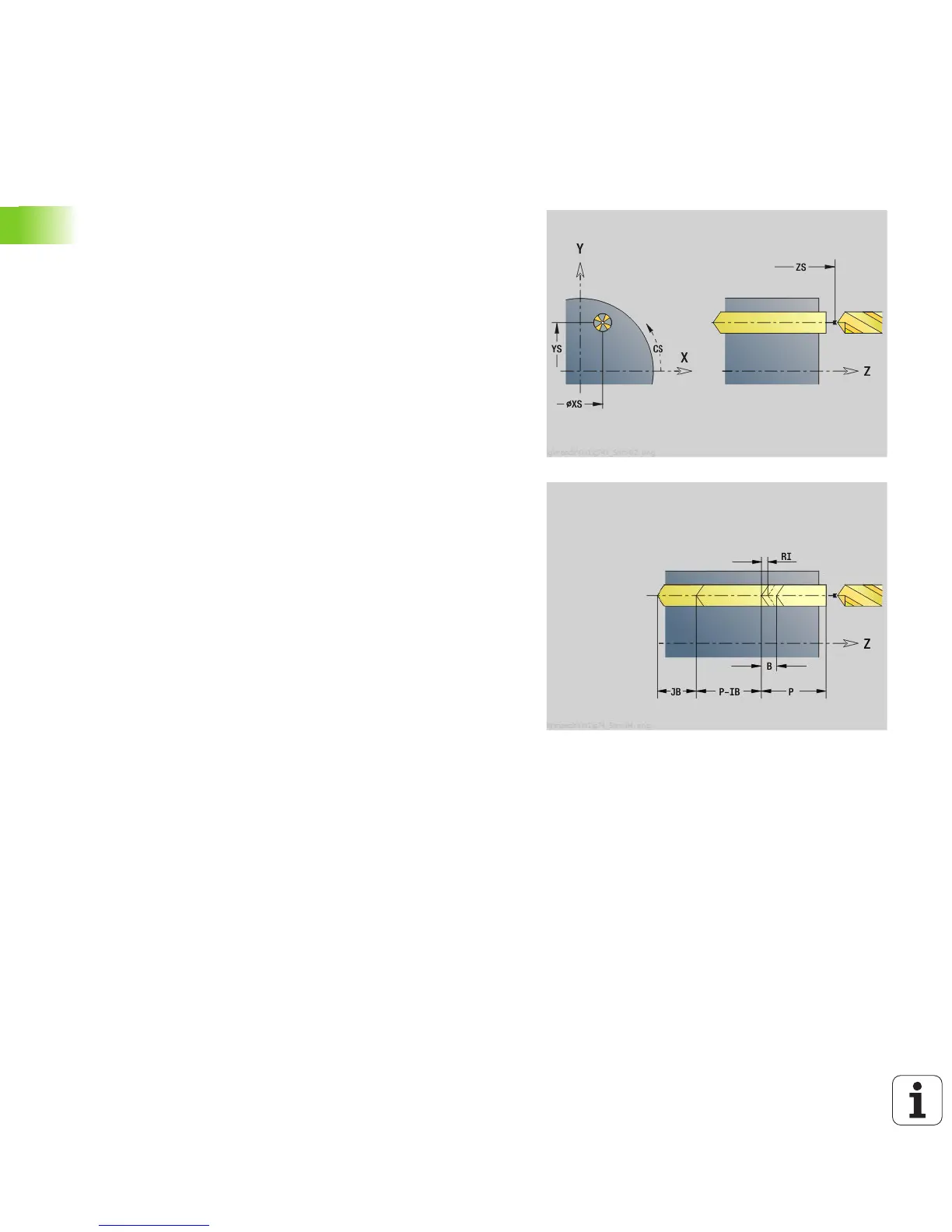

"ICP drilling, Y axis" unit
The unit machines a single hole or a hole pattern in the XY or YZ plane.
Using ICP, you define the holes as well as further details.
Unit name: G74_ICP_Y / Cycle: G74 (see page 299)
Access to the technology database:
Machining mode: Drilling
Affected parameters: F, S
Parameters on the Pattern form
FK see page 48
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
E Delay (dwell time at end of hole) (default: 0)
D Retraction at
0: Rapid traverse
1: Feed rate
V Feed rate reduction
0: No reduction
1: At the end of the hole
2: At the beginning of the hole
3: At the beginning and end of the hole
AB Spot drilling / through drilling length (distance for feed rate
reduction)
P 1st drilling depth
IB Drilling depth reduction value
JB Minimum hole depth
B Retraction distance
RI Internal safety clearance: Distance for reapproach inside
the hole (default: safety clearance SCK).
RB Return plane (default: return to the starting position or to
the safety clearance)
Further forms: see page 46
