136 smart.Turn Units
2.10 Units—Milling, Lateral Surface

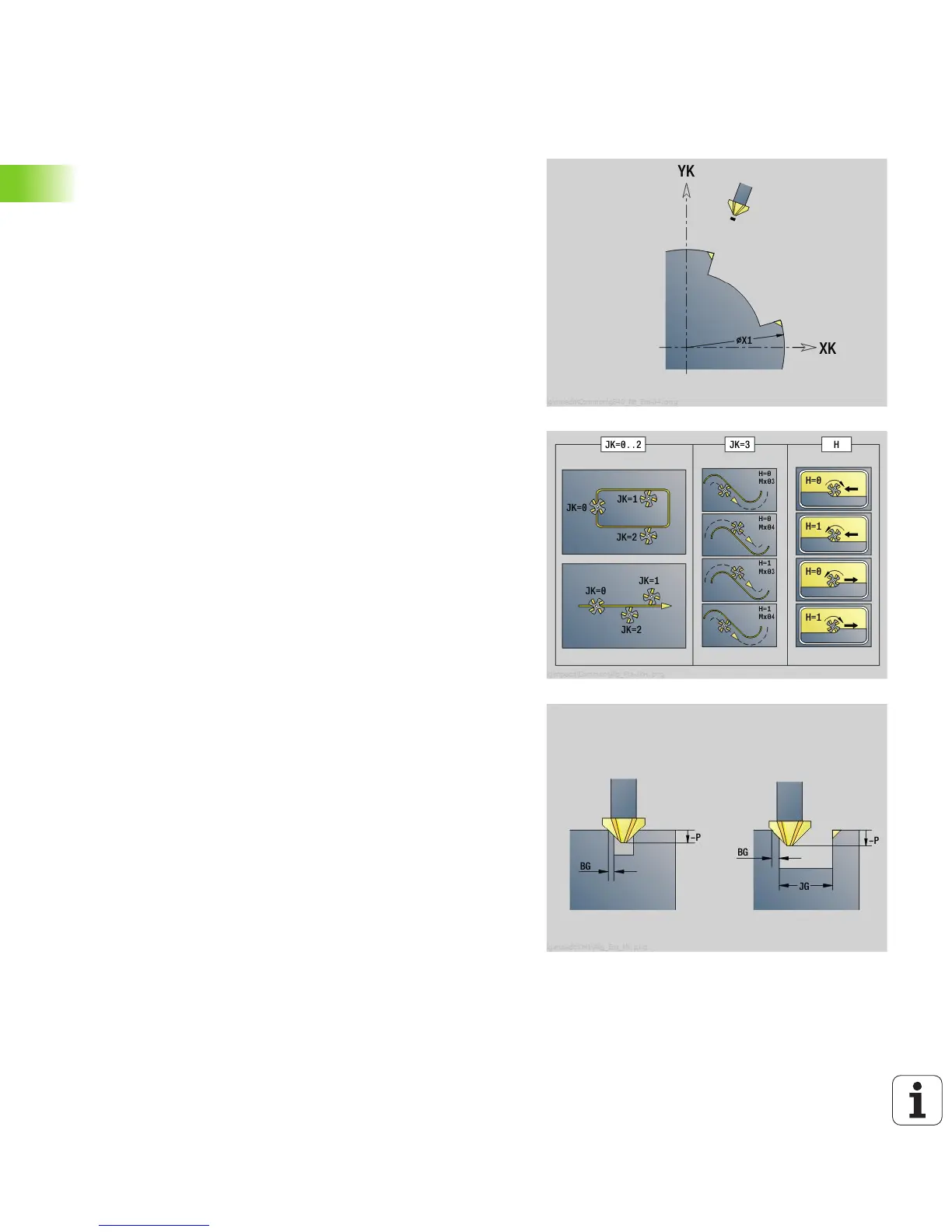

"Deburring, lateral surface" unit
The unit deburrs the contour defined with ICP on the lateral surface.
Unit name: G840_ENT_C_MANT / Cycle: G840 (see page 334)
Access to the technology database:
Machining operation: Deburring
Affected parameters: F, S
Contour form
FK see page 48
X1 Milling top edge (diameter value)
APP Approach: see page 51
DEP Departure: see page 51
Cycle form
JK Milling location
JK=0: On the contour
JK=1, closed contour: Within the contour
JK=1, open contour: Left of the contour
JK=2, closed contour: Outside the contour
JK=2, open contour: Right of the contour
JK=3: Depending on H and MD
H Mill cutting direction
0: Up-cut milling
1: Climb milling
BG Chamfer width
JG Preparation diameter
P Plunging depth (indicated as a negative value)
K Contour-parallel oversize
R Approach radius
FZ Approach feed (infeed rate)
E Reduced feed rate
RB Return plane
Further forms: see page 46
