HEIDENHAIN MANUALplus 620 131
2.10 Units—Milling, Lateral Surface
"Pocket milling, figures, lateral surface" unit
The unit mills the pocket defined by Q. In QK, select the machining
operation (roughing/finishing) and the plunging strategy.
Unit name: G84x_Fig_Mant_C / Cycles: G845 (see page 339); G846
(see page 343)
Access to the technology database:
Machining operation: Milling
Affected parameters: F, S, FZ, P

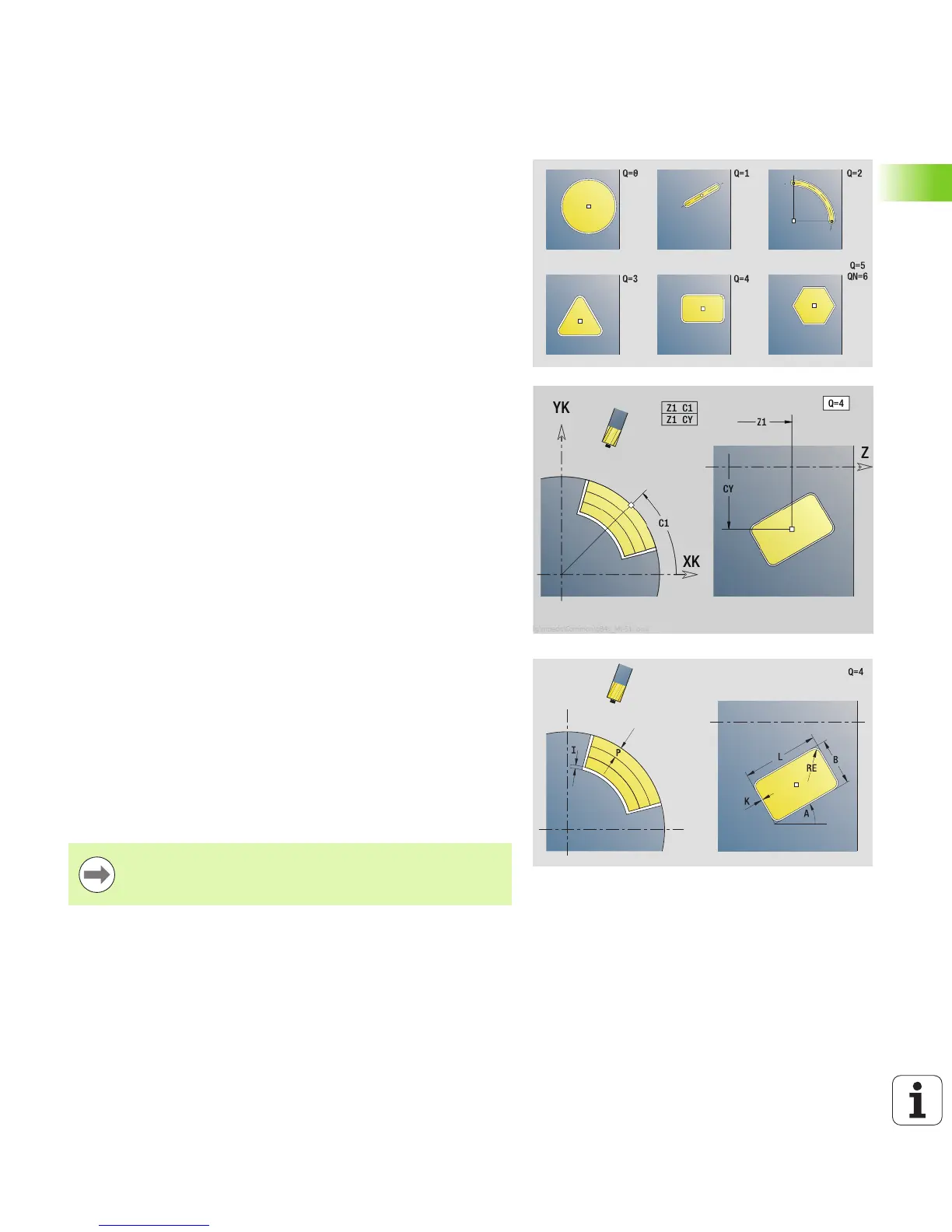

Figure form
Q Type of figure
0: Full circle
1: Linear slot
2: Circular slot
3: Triangle
4: Rectangle, square
5: Polygon
QN Number of polygon corners—only with Q=5 (polygon)
Z1 Figure center
C1 Angle of figure center
CY Figure center of unrolled lateral surface
X1 Milling top edge
P2 Depth of figure
L Edge length / width across flats
L>0: Edge length
L<0: Width across flats (inside diameter) for polygon
B Rectangle width
RE Rounding radius
A Angle to Z axis
Q2 Rotational direction of slot—only if Q=2 (circular slot)
cw: In clockwise direction
ccw: In counterclockwise direction
W Angle of slot end point—only if Q=2 (circular slot)
Program only the parameters relevant to the selected
figure type.
