HEIDENHAIN MANUALplus 620 123
2.9 Units—Milling, Face

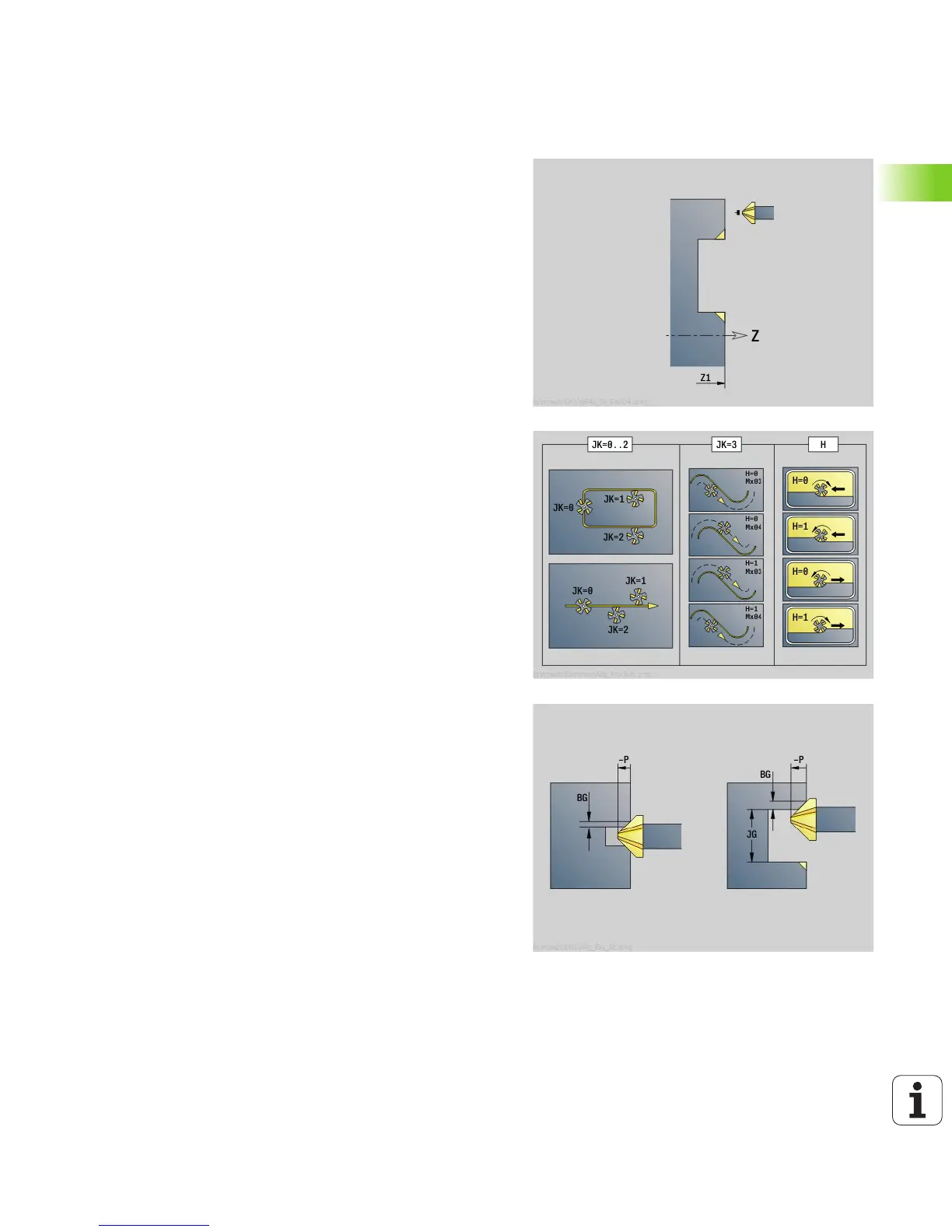

"Deburring, face" unit
The unit deburrs the contour defined with ICP on the face of the
workpiece.
Unit name: G840_ENT_C_STIRN / Cycle: G840 (see page 334)
Access to the technology database:
 Machining operation: Deburring
 Affected parameters: F, S
Contour form
FK see page 48
Z1 Milling top edge
APP Approach: see page 51
DEP Departure: see page 51
Cycle form
JK Milling location
 JK=0: On the contour
 JK=1, closed contour: Within the contour
 JK=1, open contour: Left of the contour
 JK=2, closed contour: Outside the contour
 JK=2, open contour: Right of the contour
 JK=3: Depending on H and MD
H Mill cutting direction
 0: Up-cut milling
 1: Climb milling
BG Chamfer width
JG Preparation diameter
P Plunging depth (indicated as a negative value)
I Contour-parallel oversize
R Approach radius
FZ Approach feed (infeed rate)
E Reduced feed rate
RB Return plane
Further forms: see page 46
