162 smart.Turn Units for the Y Axis
3.3 Units—Milling in Y Axis
"ICP pocket milling in YZ plane" unit

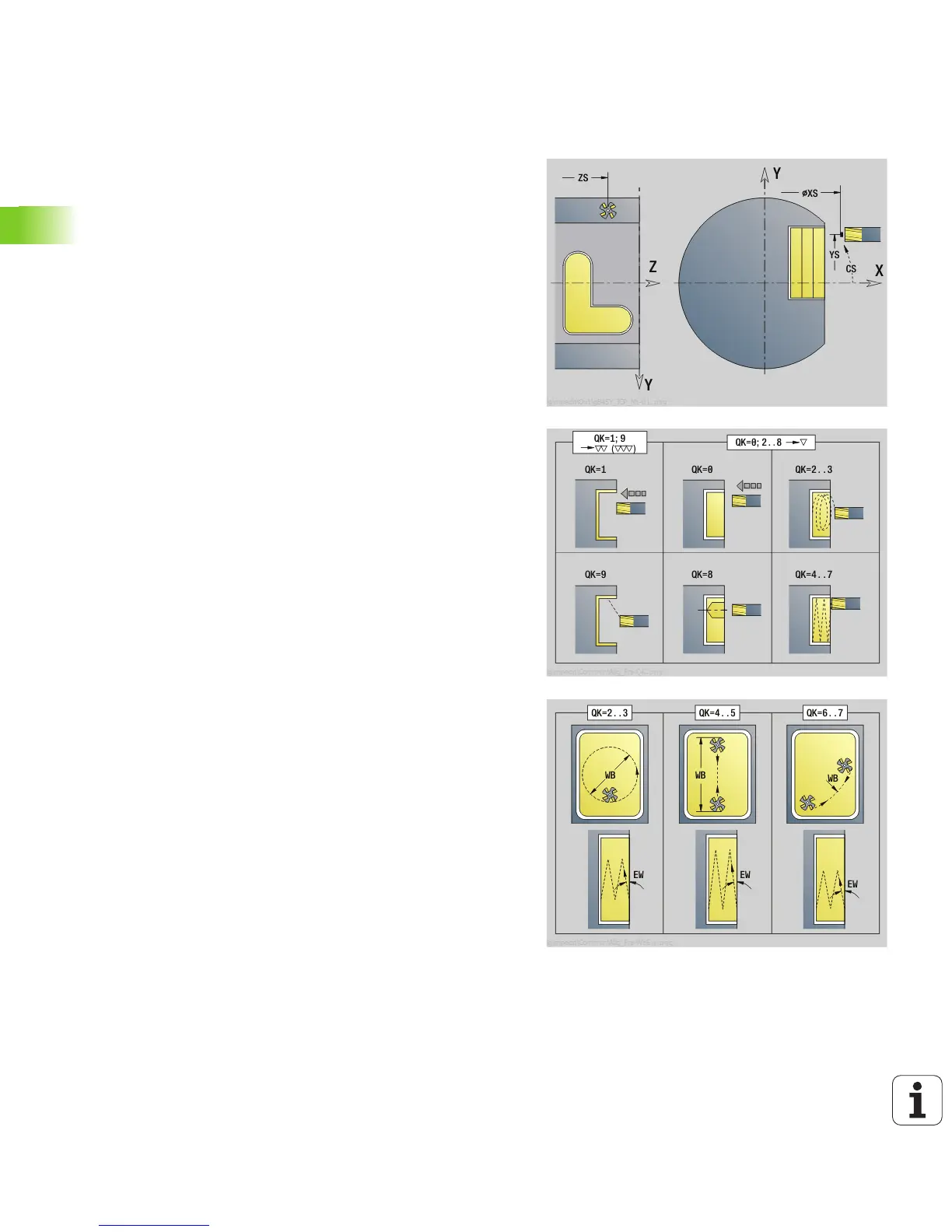

The unit mills the pocket defined with ICP in the YZ plane. In QK
(machining operation), select whether a roughing or finishing
operation is to be executed. For roughing, define the plunging
strategy.
Unit name: G845_Tas_Y_Mant / Cycles: G845 (see page 339); G846
(see page 343)
Access to the technology database:
Machining mode: Milling
Affected parameters: F, S, FZ, P
Parameters on the Contour form
FK see page 48
X1 Milling top edge (diameter value)
P2 Depth of contour
NF Position mark (only if QK=8)
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
QK Machining operation and plunging strategy
0: Roughing
1: Finishing
2: Helical roughing, manual
3: Helical roughing, automatic
4: Reciprocating linear roughing, manual
5: Reciprocating linear roughing, automatic
6: Reciprocating circular roughing, manual
7: Reciprocating circular roughing, automatic
8: Plunge roughing at premill position
9: Finishing with 3-D approach arc
JT Machining direction:
0: From the inside out (from the inside towards the
outside)
1: From the outside in (from the outside towards the
inside)
H Mill cutting direction
0: Up-cut milling
1: Climb milling
P Maximum approach (infeed)
I Infeed-direction oversize
K Contour-parallel oversize
