126 smart.Turn Units
2.10 Units—Milling, Lateral Surface

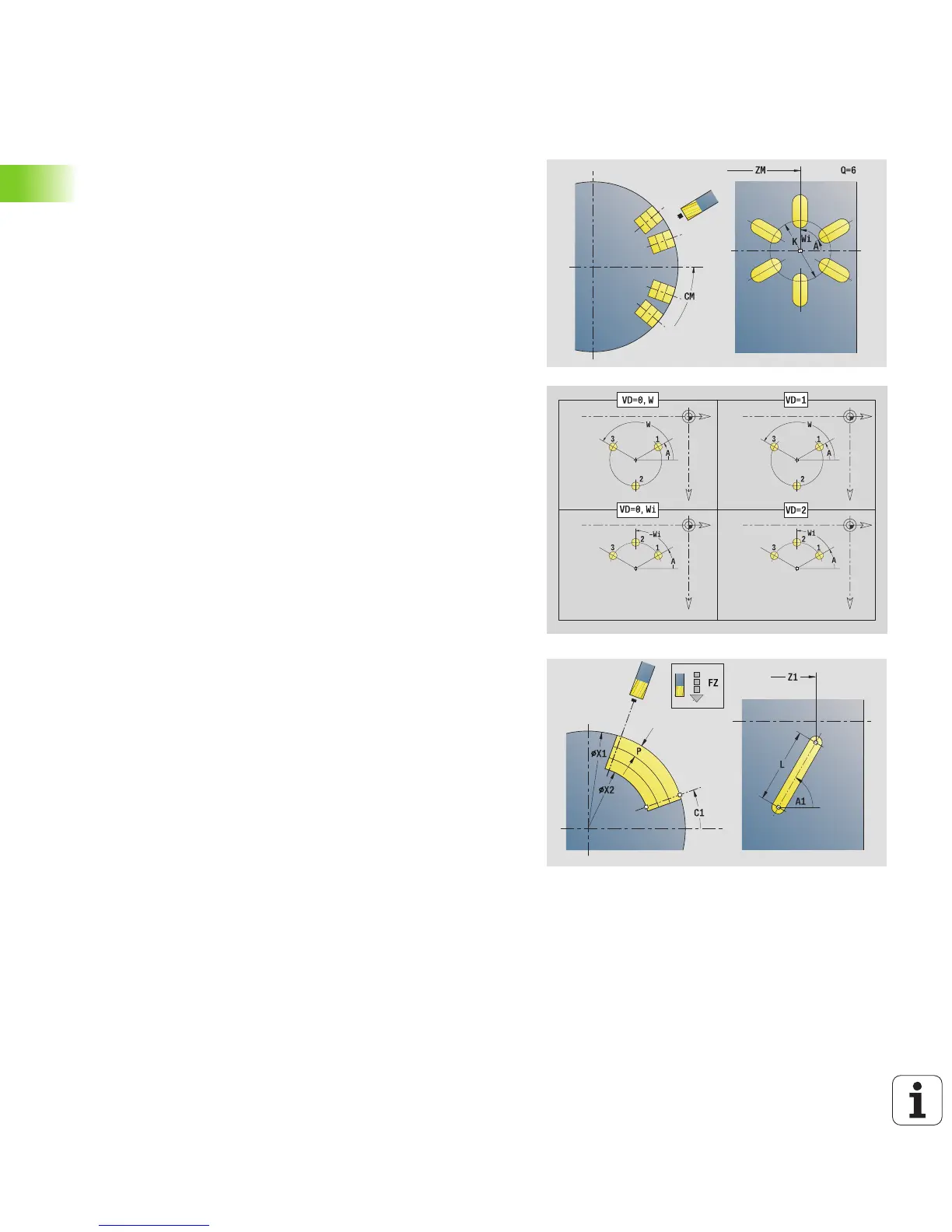

"Circular slot pattern, lateral surface" unit
The unit machines a circular slot pattern in which the individual
features are arranged at a regular spacing on the lateral surface. The
starting points of the slots correspond to the pattern positions. You
define the length and the position of the slots in the unit. The slot
width equals the diameter of the milling cutter.
Unit name: G792_Cir_Mant_C / Cycle: G792 (see page 318)
Access to the technology database:
Machining operation: Milling
Affected parameters: F, S, FZ, P
Pattern form
Q Number of slots
ZM, CM Center point of pattern
A Start angle
Wi Angle increment
K Pattern diameter
W Final angle
V Rotation direction (default: 0)
VD=0, without W: Figures are arranged on a full circle
VD=0, with W: Figures are arranged on the longer
circular arc
VD=0, with Wi: The algebraic sign of Wi defines the
direction (Wi<0: clockwise)
VD=1, with W: Clockwise
VD=1, with Wi: Clockwise (algebraic sign of Wi has no
effect)
VD=2, with W: Counterclockwise
VD=2, with Wi: Counterclockwise (algebraic sign of Wi
has no effect)
Cycle form
X1 Milling top edge (diameter value)
X2 Milling floor (diameter)
L Slot length
A1 Angle to Z axis
P Maximum infeed
FZ Infeed rate
Further forms: see page 46
