Appearance

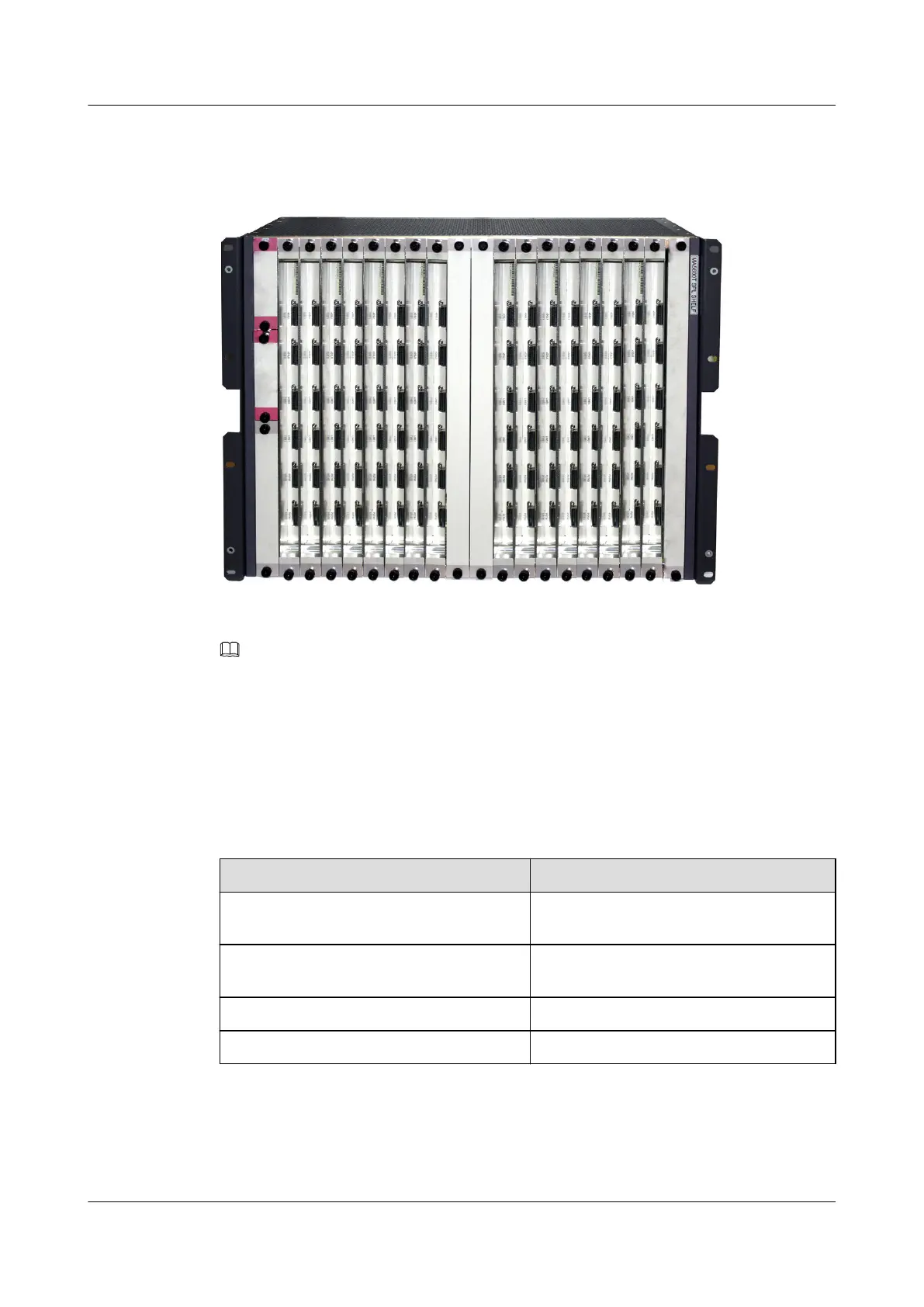

Figure 2-7 Appearance and composition of the ETSI SPL subrack
NOTE
Figure 2-7 shows the ETSI SPL subrack configured with the high-density SPL boards.
2.2.2 Physical Specifications
This topic provides the dimensions and weight of the ETSI SPL subrack.
Dimensions and Weight
Table 2-11 Specifications of the ETSI SPL subrack
Item
Specification
Dimensions (W x D x H, including
mounting brackets)
530.00 mm x 235.00 mm x 397.20 mm
Dimensions (W x D x H, excluding
mounting brackets)
490.00 mm x 235.00 mm x 397.20 mm
Maximum weight 22.50 kg
Maximum power consumption 0 W
2.2.3 Configuration
The ETSI SPL subrack can be configured with 16 SPL boards.
