Functions
The cable manager is configured under the service subrack or SPL subrack.
The cable manager supports the following functions:
l The main function of the upper cable manager is to clearly separate cables of each slot
from each other so that cables can be routed in order and cables in one slot do not affect
the insertion or removal of the board in the neighboring slot.
l The main function of the lower cable manager is to bear optical fibers.
1.1.9 Air Deflector
This topic describes the appearance, specifications and function of the air deflector.
Appearance

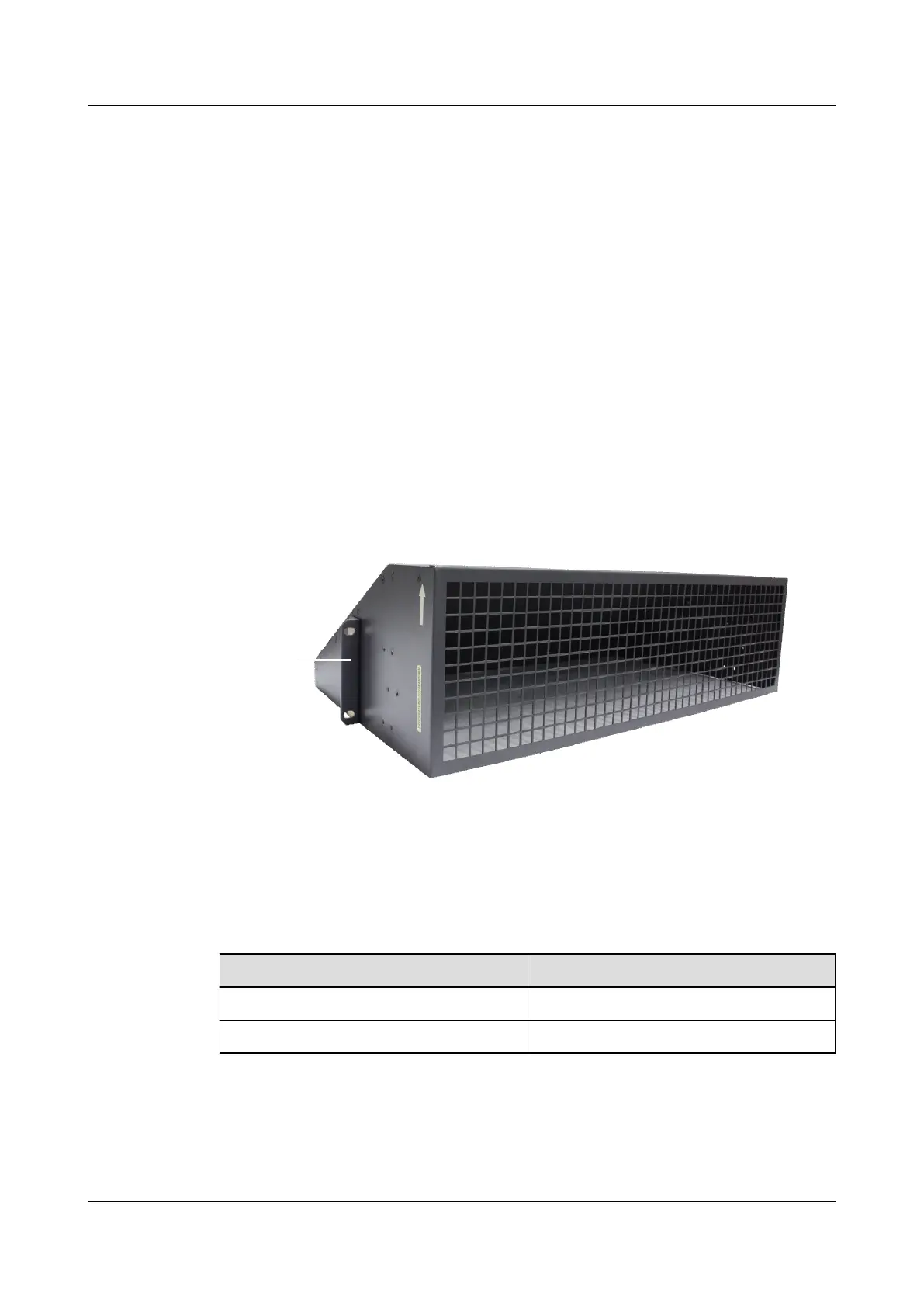

Figure 1-15 shows the appearance of the air deflector.
Figure 1-15 Appearance of the air deflector
Specifications
Table 1-4 lists the specifications of the air deflector.
Table 1-4 Dimensions and weight of the air deflector
Item
Specification
Dimensions (W x D x H) 493.7 mm x 289.2 mm x 147.2 mm
Weight 2.2 kg
Function
The N63E-22 cabinet needs the air deflector when it installed with two ETSI subracks. The
air baffle of the air deflector blocks the hot air from the lower service subrack and exhausts
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21
