Huawei SmartAX MA5600T Hardware Description

Technical Specifications
Specification Description
Connector DB44 connector
Cable type Coaxial cable
Characteristic impedance 75.0 ohms
Cable diameter 2.20 mm
Wire diameter of the inner conductor 0.25 mm
DC resistance of the inner conductor <= 355.0 ohms/km
Frequency attenuation 4.2 dB/100 m@2 MHz
Capacitance <= 64 pF/m

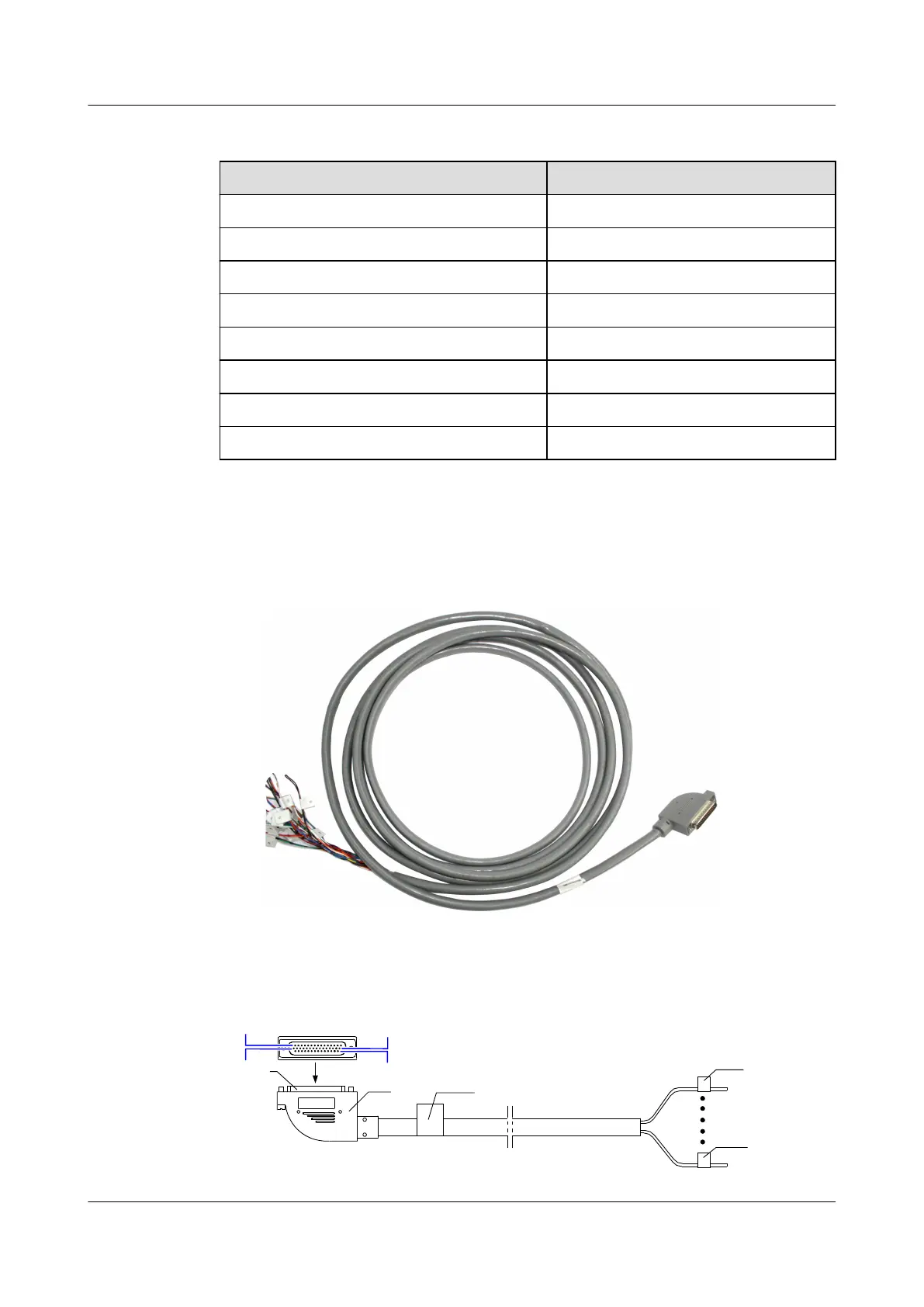

5.3.2 120-ohm E1 Trunk Cable
A 120-ohm E1 trunk cable is a communication cable used for transmitting E1 trunk signals.
Cable Connector
DB44 connector
Connected to an E1
port on a board
Connected to
the DDF
Cable Structure
Main Label
W
Label 1
A
Pos.1
Pos.44
1
DB44
X1
Pos.16
Pos.30
Label 16
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
893
