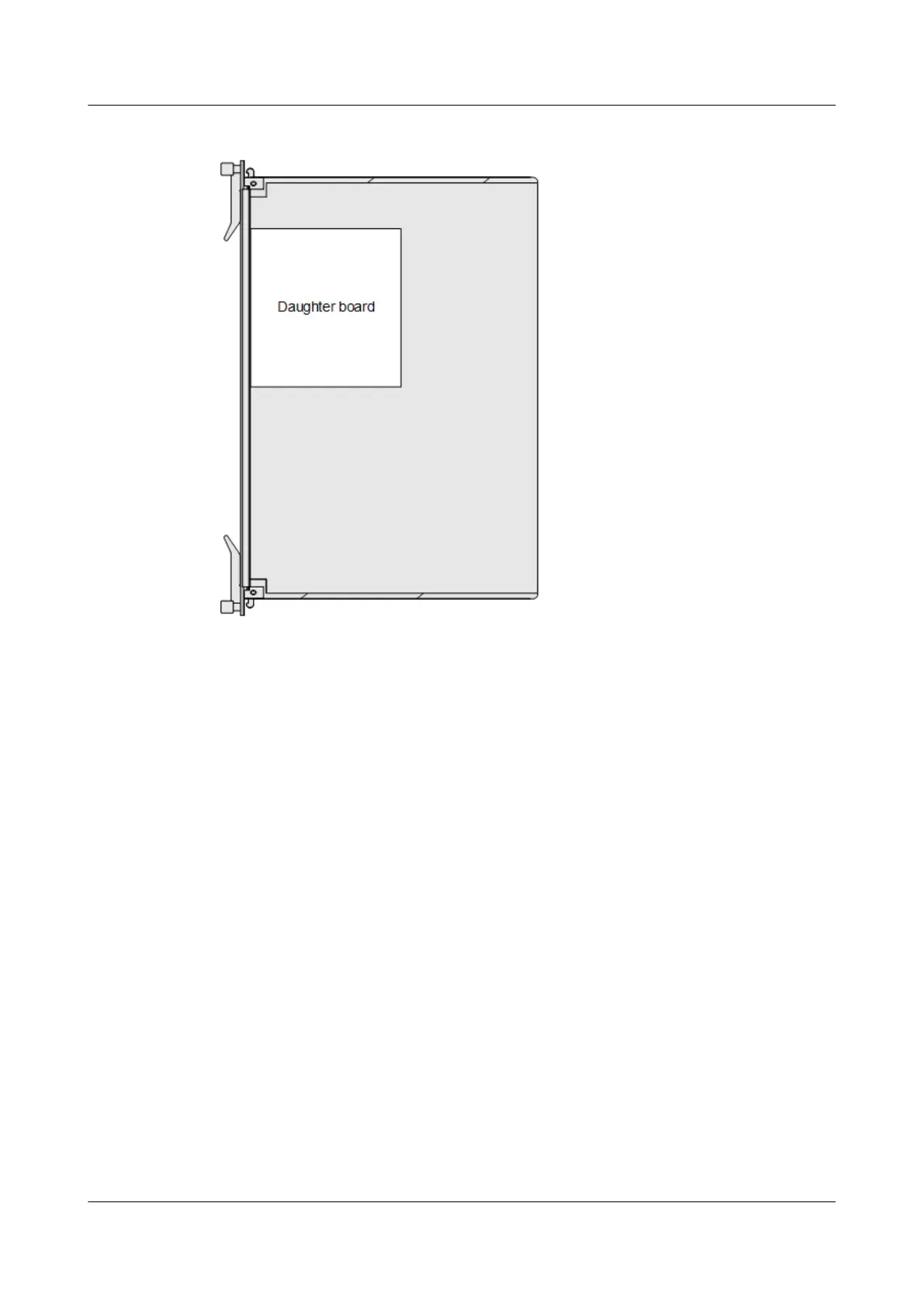

Figure 3-6 Position of the daughter board on the H801SCUB board
3.6.3 H802SCUB Board Description
The H802SCUB board is a super control unit board. It is the core of the system control and
service switching and aggregation. It can also function as the management and control core of
the network management system (NMS). The H802SCUB board communicates with service
boards about the key management and control information through the master/slave serial port
and inband GE channel. In this way, the H802SCUB configures, manages, and controls the
device. The H802SCUB also implements the simple route protocol function.
Functional Specifications
Please refer to "SCU boards Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
