Silk
Screen
Signal Port Pin Function
JTD1-JTD7 Input ports of the
standby Boolean
value
l Pin 1 is for the +24 V power supply.
l Pin 2 is for the +12 V power supply.
l Pin 3 is for the signal cable.
l Pin 4 is for grounding.
According to the actual requirements, access related
passive digital signals to pins 2 and pin 3.
J1 DB50 port The port connects the monitoring transfer board and
the monitoring board to input the sensor signals and
the output the control signals.
Specifications
Table 6-35 lists the specifications of the PMIB01 sensor transfer box.
Table 6-35 Specifications of the PMIB01 sensor transfer box
Sensor Transfer Box
Dimensions (W x D x H)
PMIB01 140 mm x 96 mm x 31 mm
6.8 PMIB02 Sensor Transfer Box
This topic describes the application and front panel of the sensor transfer box, and provides
the specifications of the sensor transfer box.
Function
The sensor transfer box provides various sensor ports to connect the EMU and external
sensors.
Overview
The sensor transfer box is an optional part. It provides diverse Sensor ports to connect the
monitoring unit to the external sensors.
Front Panel
Figure 6-34 shows the PMIB02 sensor transfer box.

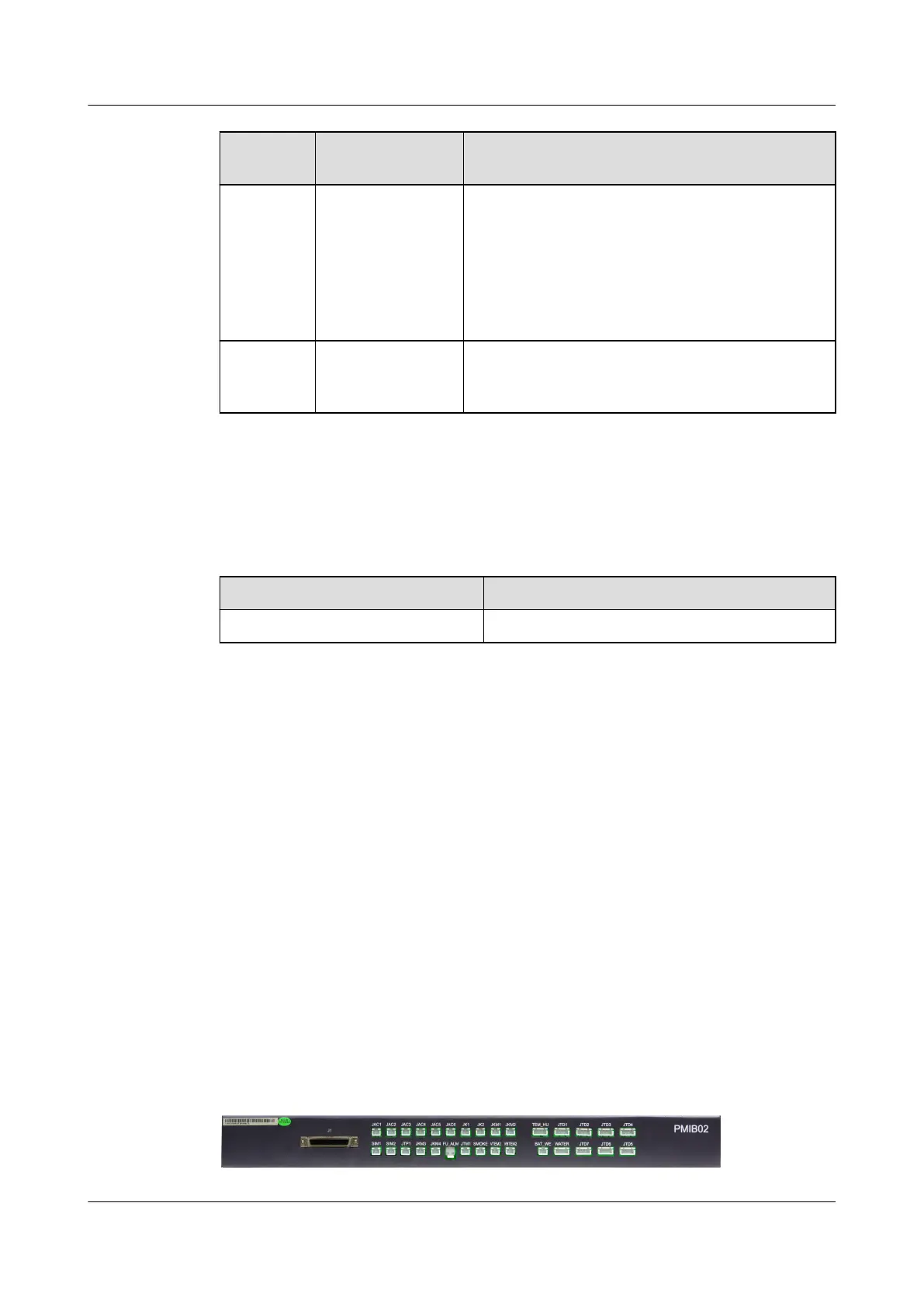

Figure 6-34 Front panel of the PMIB02 sensor transfer box
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
949
