The N66E-22 cabinet consists of the rack (main frame), a front door, a rear panel fixed by
screws, and side panels on the left and right sides.
The door of the N66E-22 cabinet is removable and the top of the cabinet has the grounding
point. All N66E-22 cabinets have the same key for the front door.

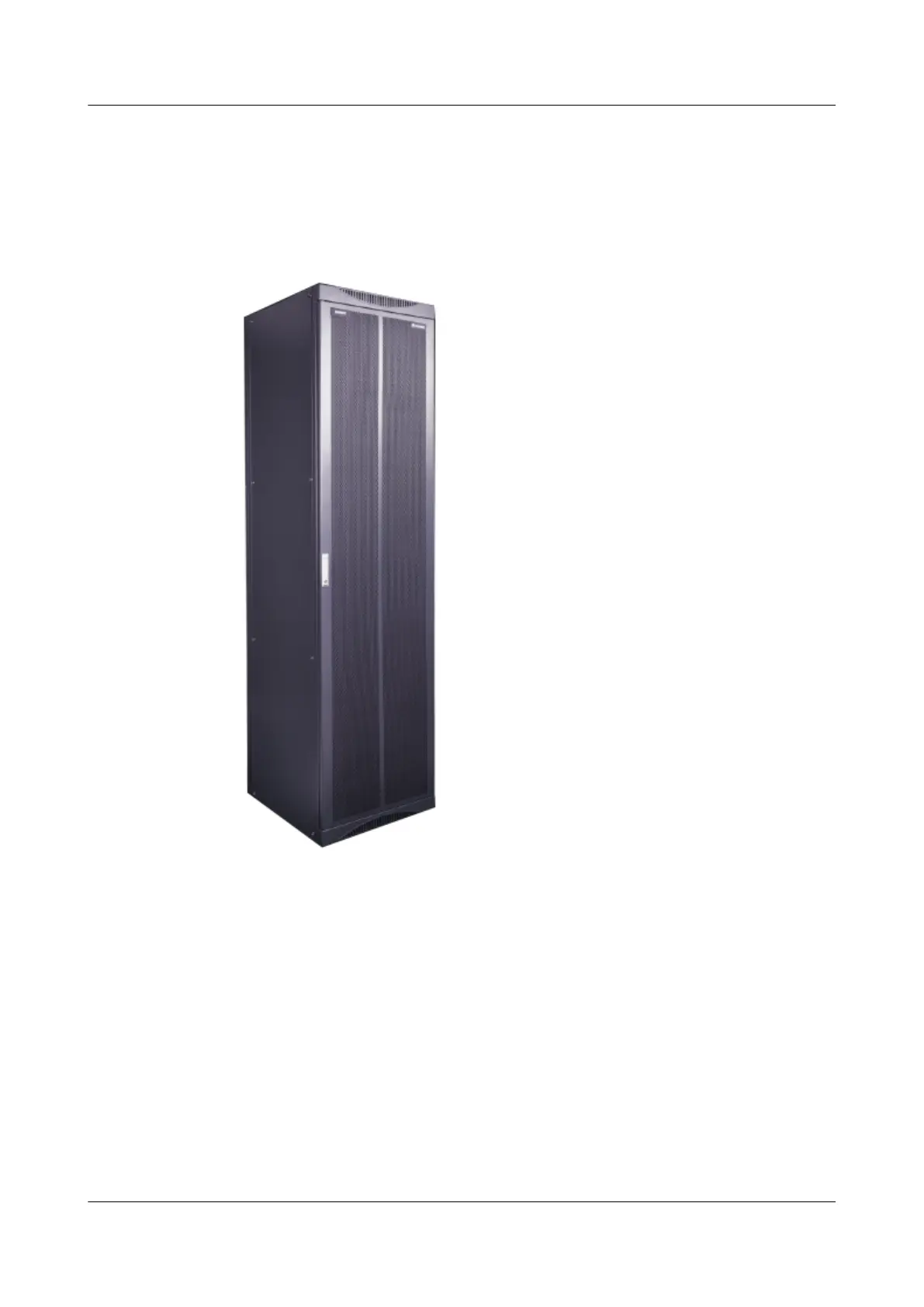

Figure 1-48 Appearance of the N66E-22 cabinet
1.3.2 Physical Specifications
This topic provides the dimensions, weight and power specifications of the N66E-22 cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
56
