Huawei SmartAX MA5600T Hardware Description

Specification Description
Diameter of the cable 3.9 mm
Diameter of the inner conductor 0.34 mm
DC resistance of the inner
conductor
224.0 ohms
Frequency attenuation 3 dB/100 m @2 MHz
Capacitance 69 pF/m

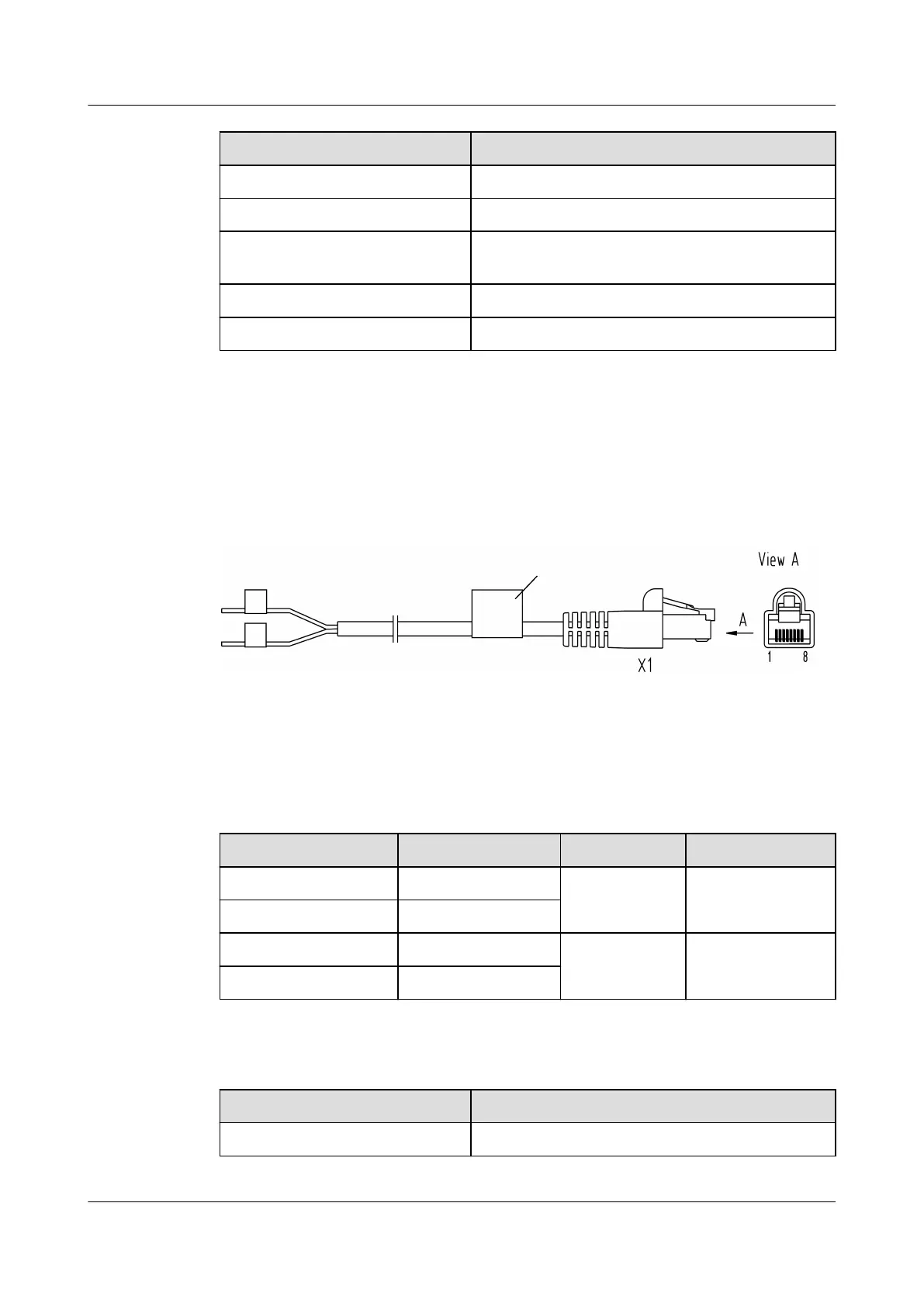

5.4.2 120-ohm Clock Cable
A 120-ohm clock cable is used to transmit clock signals.
Cable Connector
RJ45 connector
Connected to the clock
port of the CITD board
Main Label
Connected to the upper layer
or lower layer clock device
W1
W2
T
R
Pin Assignment
Connector Pin
Color Relation Core No.
X1.1 Blue Twisted pair W1
X1.2 White
X1.4 Orange Twisted pair W2
X1.5 White
Specification
Specification
Description
Connector RJ45 connector
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
896
