Specification Description
Frequency range Default
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

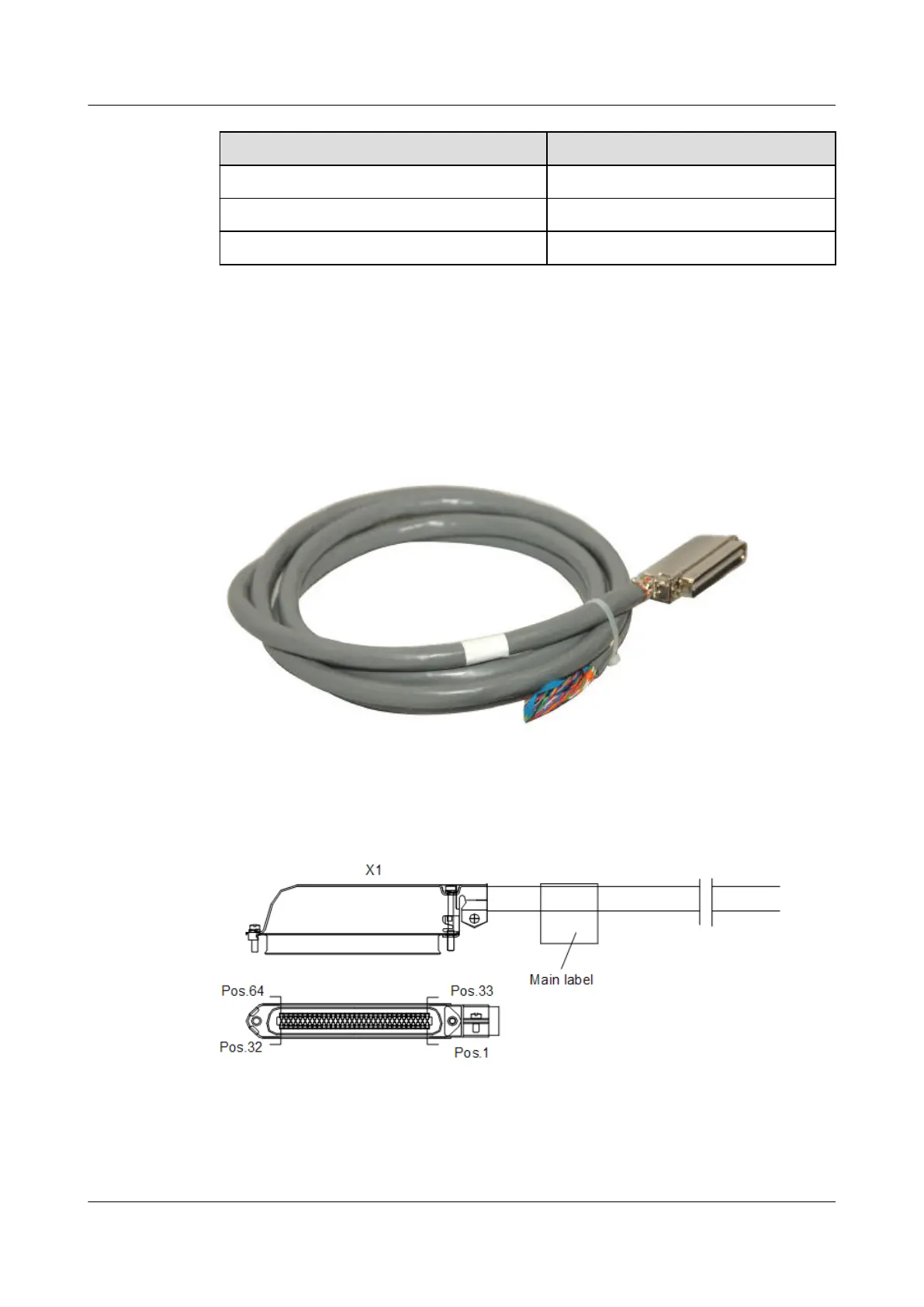

5.2.9 32-Channel xDSL Subscriber Cable (old pin assignments)
xDSL subscriber cable connects the service board or SPL board to the MDF to transmit audio,
video, and data signals.
Cable Connector
Champ 64-pin connector
Connected to the PSTN or
LINE port of the SPL board,
the PSTN or xDSL port of
the service board
Connected to the MDF
Cable Structure
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
889
