Huawei SmartAX MA5600T Hardware Description

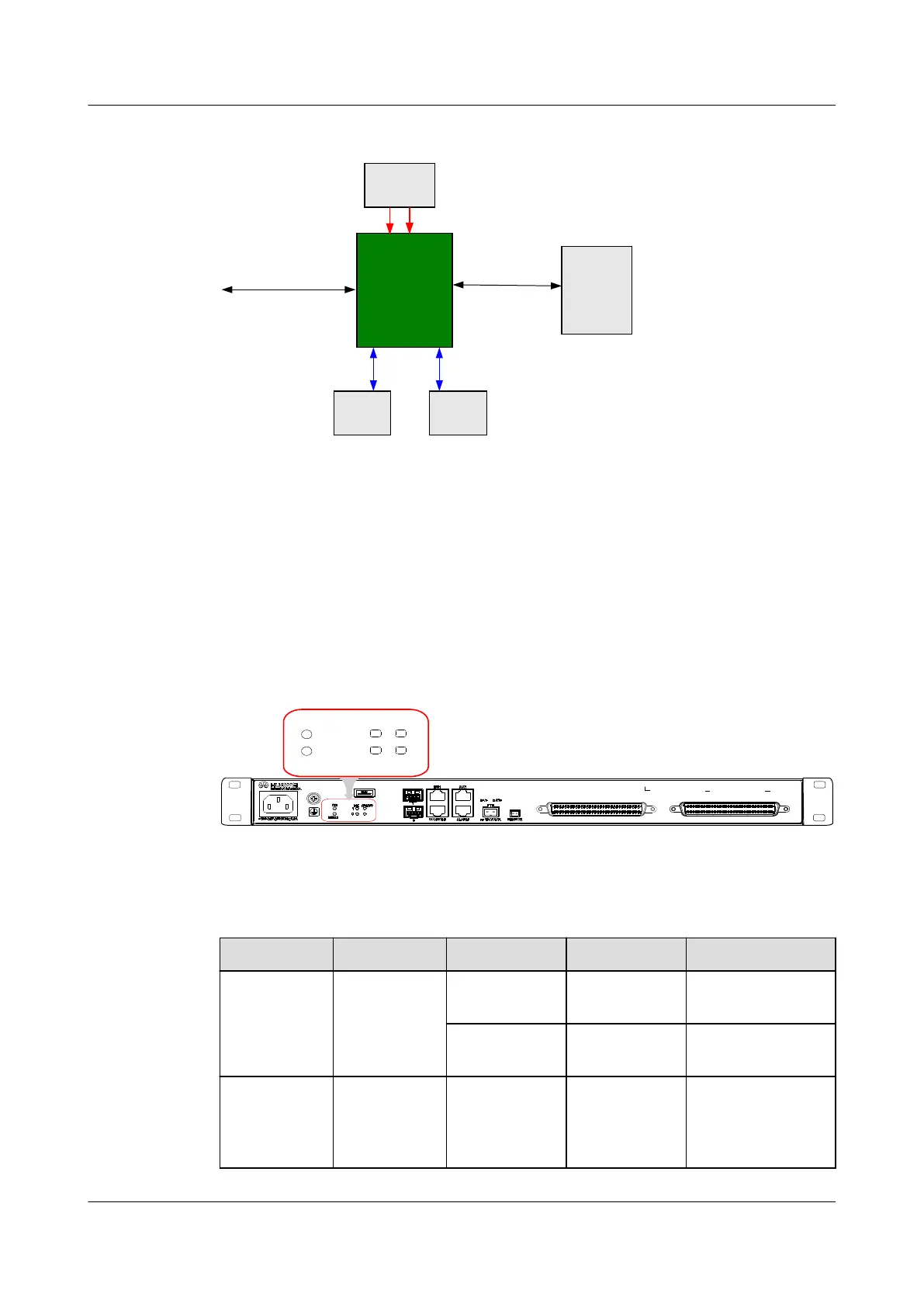

Figure 2-16 External connections of the MA5623AR extended subrack
PDU
ESC
Serial port signal
MA5623AR
220 V input
VDSL2 access
GE optical port
upstream
Clock
source
Clock signal
ETHB
board on
the main
surbrack
2.4.4 Indicators
The MA5623AR provides various indicators on the panel to help users learn about the
running status of the device.
Figure 2-17 shows the panel indicators provided by the MA5623AR and Table 2-30
describes the status and meanings of these indicators.
Figure 2-17 Indicators provided by the MA5623AR
RUN/ALM
PWR
LINK AUTH/ACT
1
0
xDSL1
xDSL0
Table 2-30 Status and meanings of the indicators provided by the MA5623AR
Indicator
Name Color Status Description
PWR Power supply
status
indicator
Green On The device is
powered on.
- Off The device is
powered off.
RUN/ALM Running
status
indicator
Red Blinking (on
for 0.25 s and
off for 0.25 s
repeatedly)
The device is
starting up.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
113
