Huawei SmartAX MA5600T Hardware Description

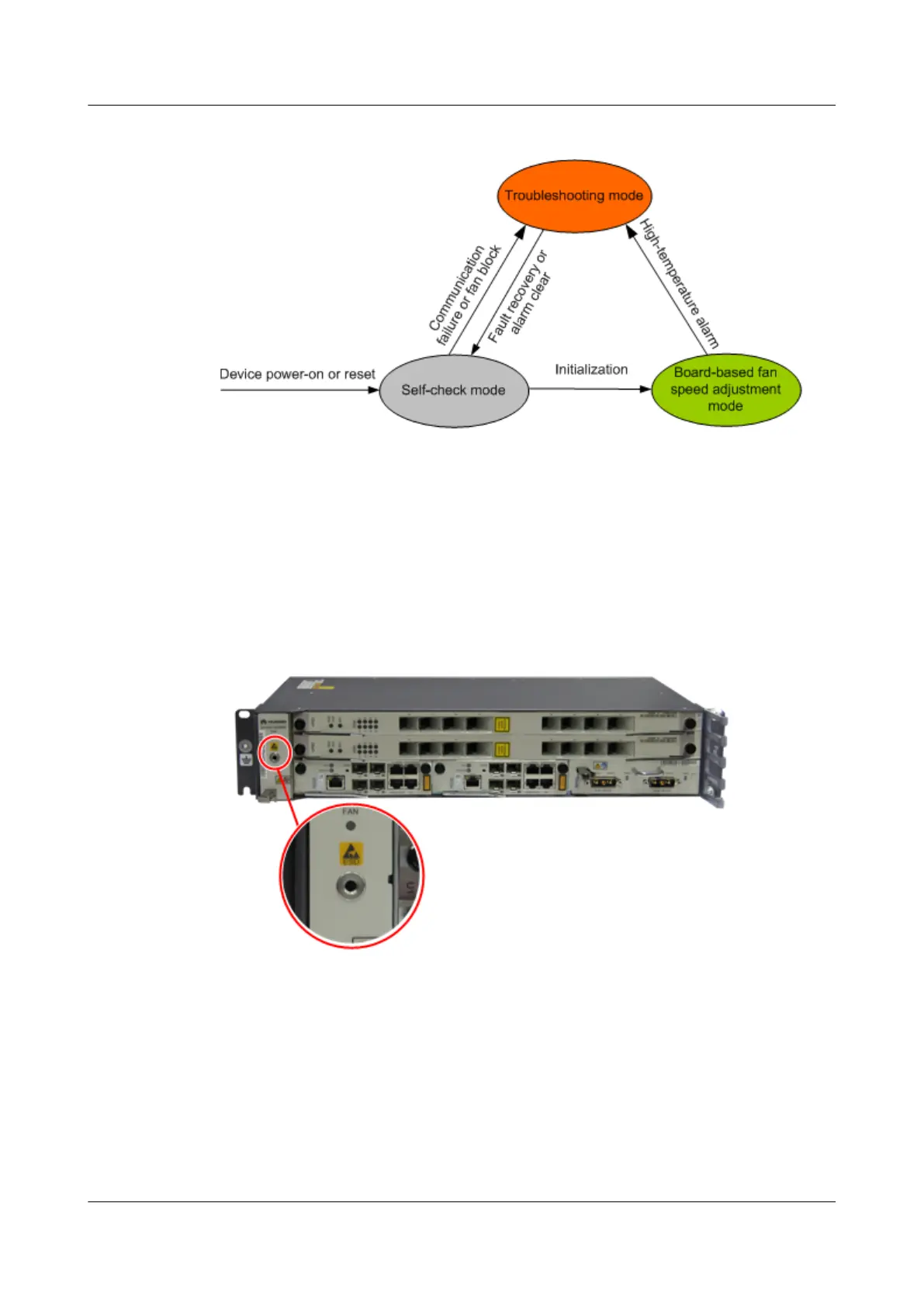

Figure 2-31 Fan status transfer
2.6.5 ESD Jack
The ESD jack of the MA5608T chassis is on the middle of the fan tray, which is used to
connect the ESD wrist strap to prevent device damage caused by electrostatic discharge.
The position of the MA5608T chassis ESD jack, as shown in Figure 2-32.
Figure 2-32 Position of the MA5608T chassis ESD jack
2.6.6 Grounding
This topic describes the grounding principle of the MA5608T chassis and the position of the
ground point.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
138
