Huawei SmartAX MA5600T Hardware Description

Board Port
Quanti
ty
Port Impedance Applicable
Line
Applicable
Service
Board
H801VSP
LC
64 Complex impedance (ETSI TS 101
952 01 01 option B)
POTS 64-port
VDSL2 over
POTS
Service
Board
NOTE
l More information about the boards supported by the product version, please reference the 3.2
Mapping Between Boards and Software Versions.
l More information about the boards function supported by the version, please reference the related
board description topic.

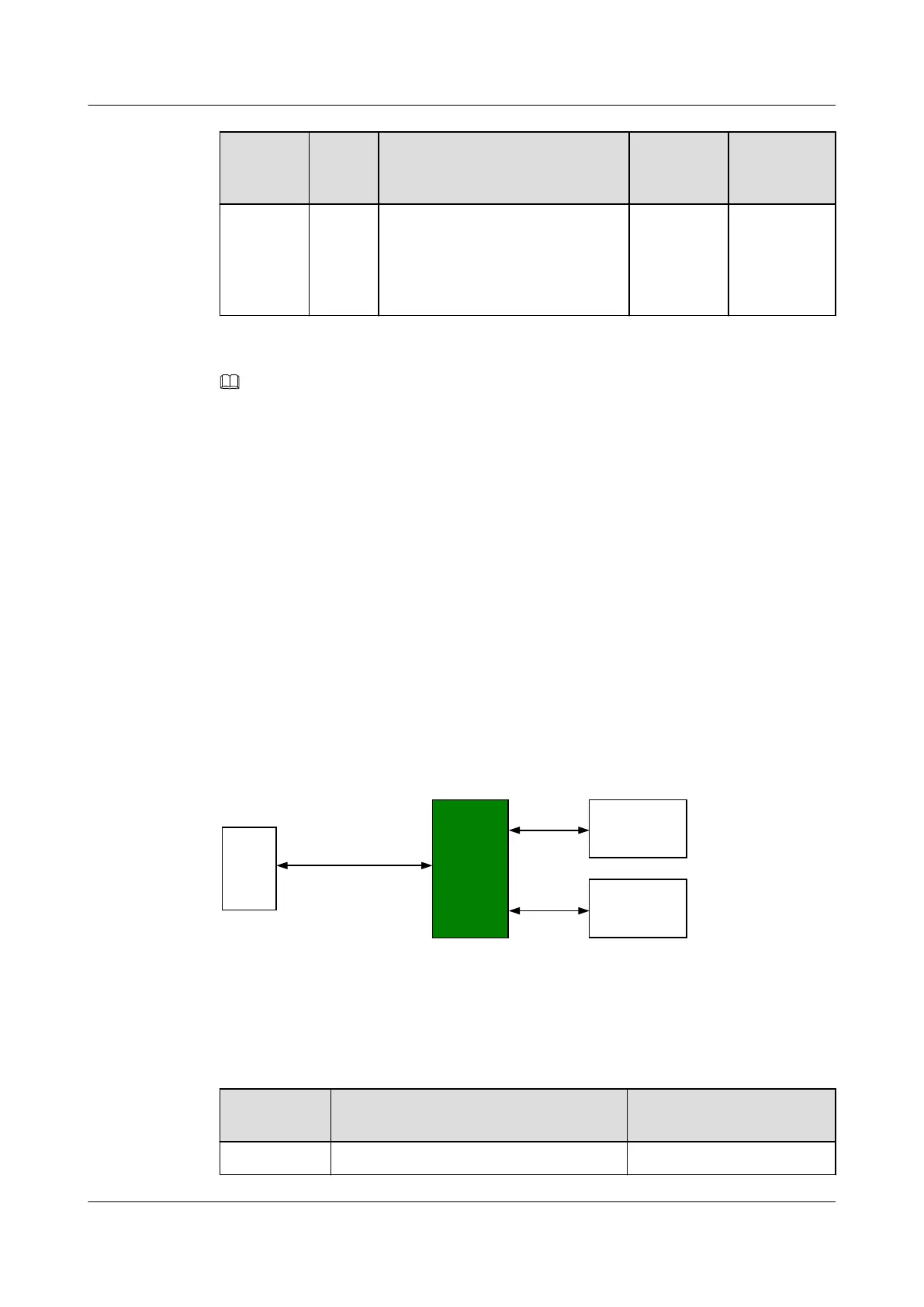

3.26.2 H801VSTH Board Description
The H801VSTH board is a 24-port VDSL2 over ISDN splitter board, separating 24-channel
VDSL signals from ISDN signals.
Functional Specifications
The H801VSTH board supports the following function:
l Separating 24-channel VDSL2 signals from ISDN signals
l Supporting 2B1Q/4B3T coding
Figure 3-156 shows the external connections of the H801VSTH board.
Figure 3-156 External connections of the H801VSTH board
PSTN device
VTU-R VSTH
VDSL2 over ISDN
ISDN
VDSL2
24-channel
VDSL2
service board
Technical Specifications
Table 3-203 Technical specifications of the H801VSTH boards
Board
Dimensions (W x D x H) Maximum Power
Consumption
H801VSTH 22.86 mm x 237.00 mm x 395.40 mm 0 W
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
804
