NOTE
The power consumption of the subrack is tested in the following conditions:
l Working voltage: -53.5 V DC
l Ambient temperature: 25°C
l Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports
hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports
l Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS
ports concurrently pick up phones and the feeding current is 20 mA.
l Typical power consumption: half of the total value of static power consumption and maximum
power consumption.
l The preceding table lists power consumption under typical configuration. For power consumption
under other configurations, use Access Network Hardware Configuration Tool.
l In the case of Access device, power consumption is generally transformed into heat consumption.
Hence, heat consumption (BTU/h) and power consumption (W) can be converted to each other in
the formula: 1 BTU/h = 0.2931 W.
2.5.3 Configuration
This topic provides the configuration of the boards in the MA5603T chassis, and lists the type
of the boards.
H801MABO and H802MABO are the backplanes supported by the MA5603T. H801MABO
does not support the Vectoring feature, and H802MABO supports the Vectoring feature.

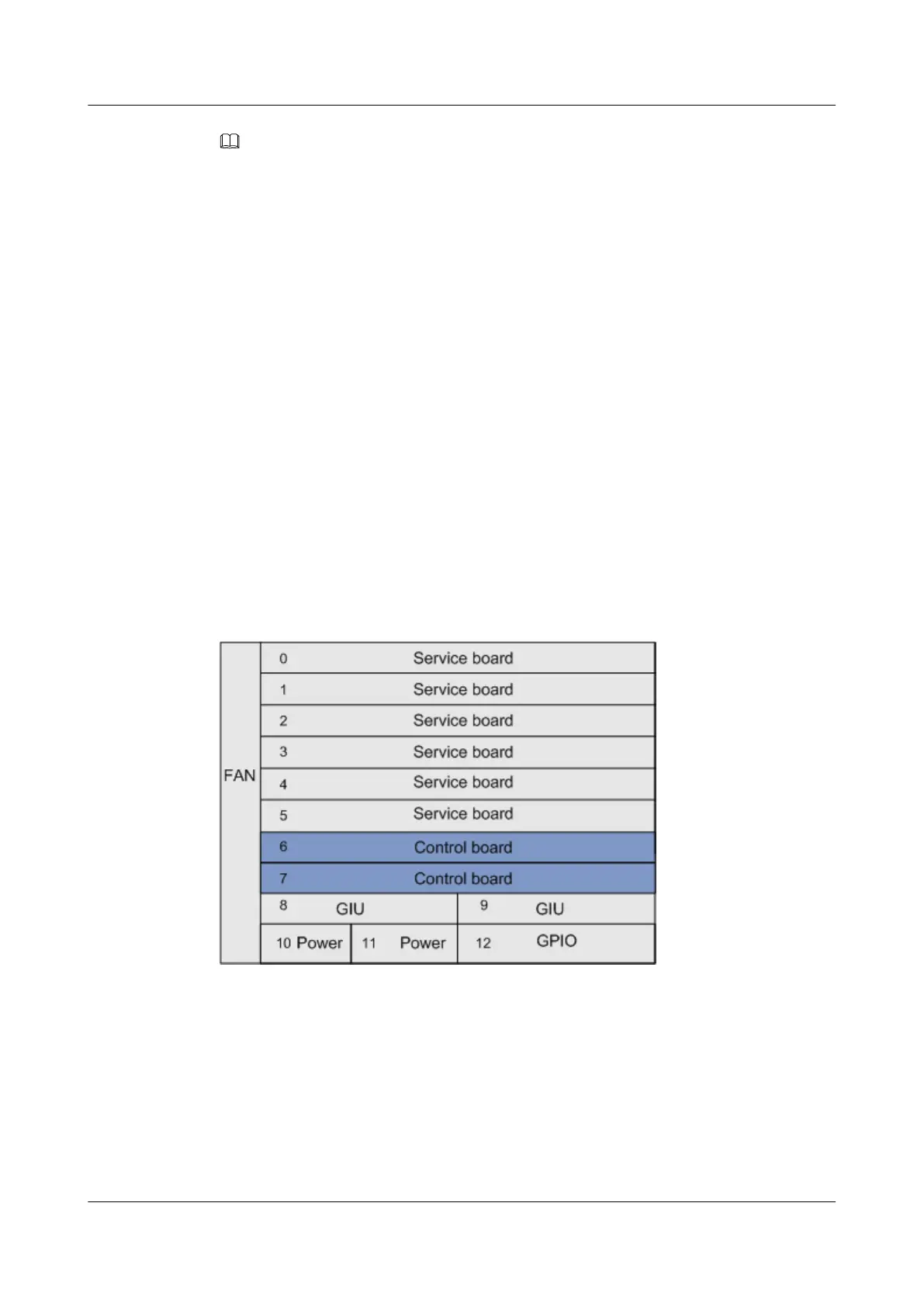

Figure 2-21 Configuration of boards in the MA5603T chassis
Table 2-34 lists the configuration of boards in the MA5603T chassis. For details, see 3.4
Board Configuration(MA5600T/MA5603T).
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
