3.17.2 H801OPFA Board Description
The H801OPFA board is a FE P2P optical interface board, providing 16 channels of FE
optical signals.
NOTE
The H801OPFA board is upgraded from VER.B to VER.C, wherein the function of synchronous
Ethernet clocks issuing is added.
Functional Specifications
Please refer to "P2P Interface Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

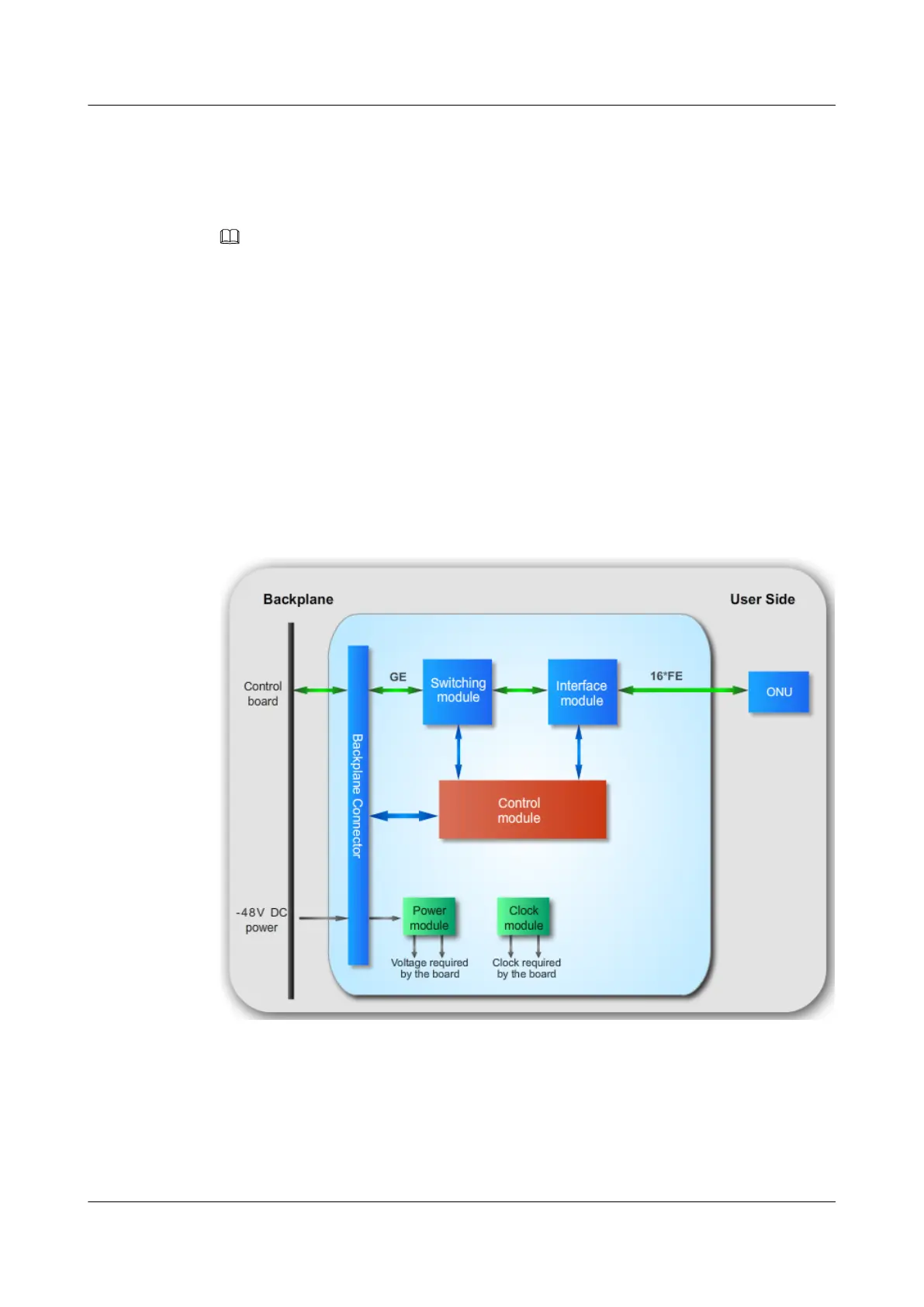

Figure 3-75 Working principle of the H801OPFA board
The basic working principle of the H801OPFA board is as follows:
l The control module loads the board software, controls the running of the board, and
manages the entire board.
l The interface module receives signals and then transmits the signals.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
404
