Huawei SmartAX MA5600T Hardware Description

Slot Type Slot Supported Board Remarks
Service board
slot
1-6,9-16
l Service board
– SPU board
– TDM service
processing board
– Combo board
– Voice board
– ADSL2+ service
board
– VDSL2 service
board
– Vectoring
processing board
– SHDSL service
board
– P2P service board
– GPON service
board
– 10G GPON
service board
l SPL board
– ADSL SPL board
– ,
– VDSL SPL board
l Extension board
Mixed configuration of service
boards is supported.
NOTE
l GPON boards are recommended
to be installed from left to right
and other boards are
recommended from right to left.
l A vectoring processing board
can be installed only in slots 9
and 10. When installed in slot 9,
the board processes the
vectoring services of slots 1-6.
When installed in slot 10, the
board processes the vectoring
services of slots 11-16.
2.3.4 IEC Fan Tray (FCBC)
A fan tray functions heat dissipation, monitoring, and fan speed adjustment, which ensures
that the device works at a stable temperature.

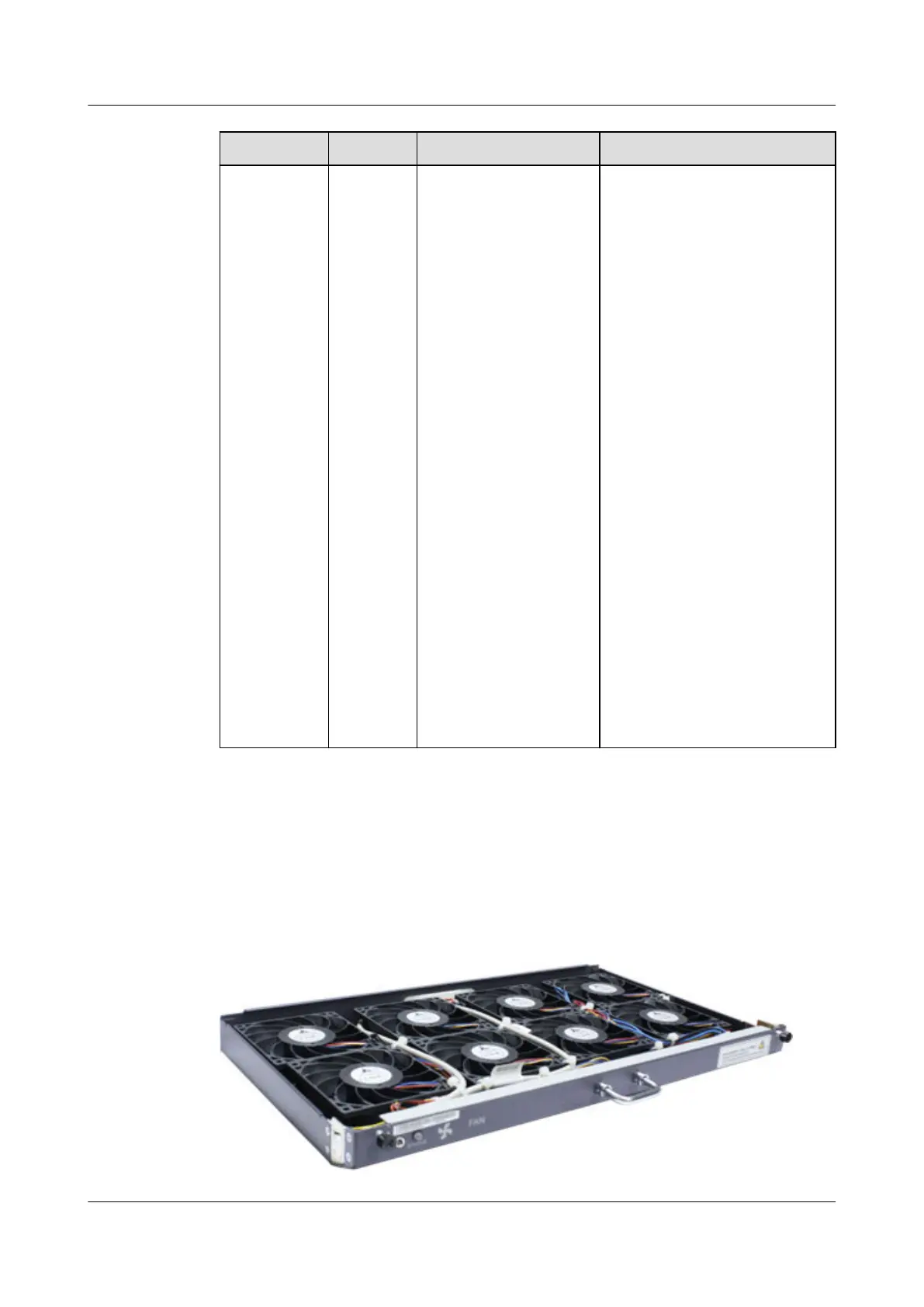

Appearance
Eight fans are configured in the IEC fan tray (FCBC) of the MA5600T.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
93
