Huawei SmartAX MA5600T Hardware Description

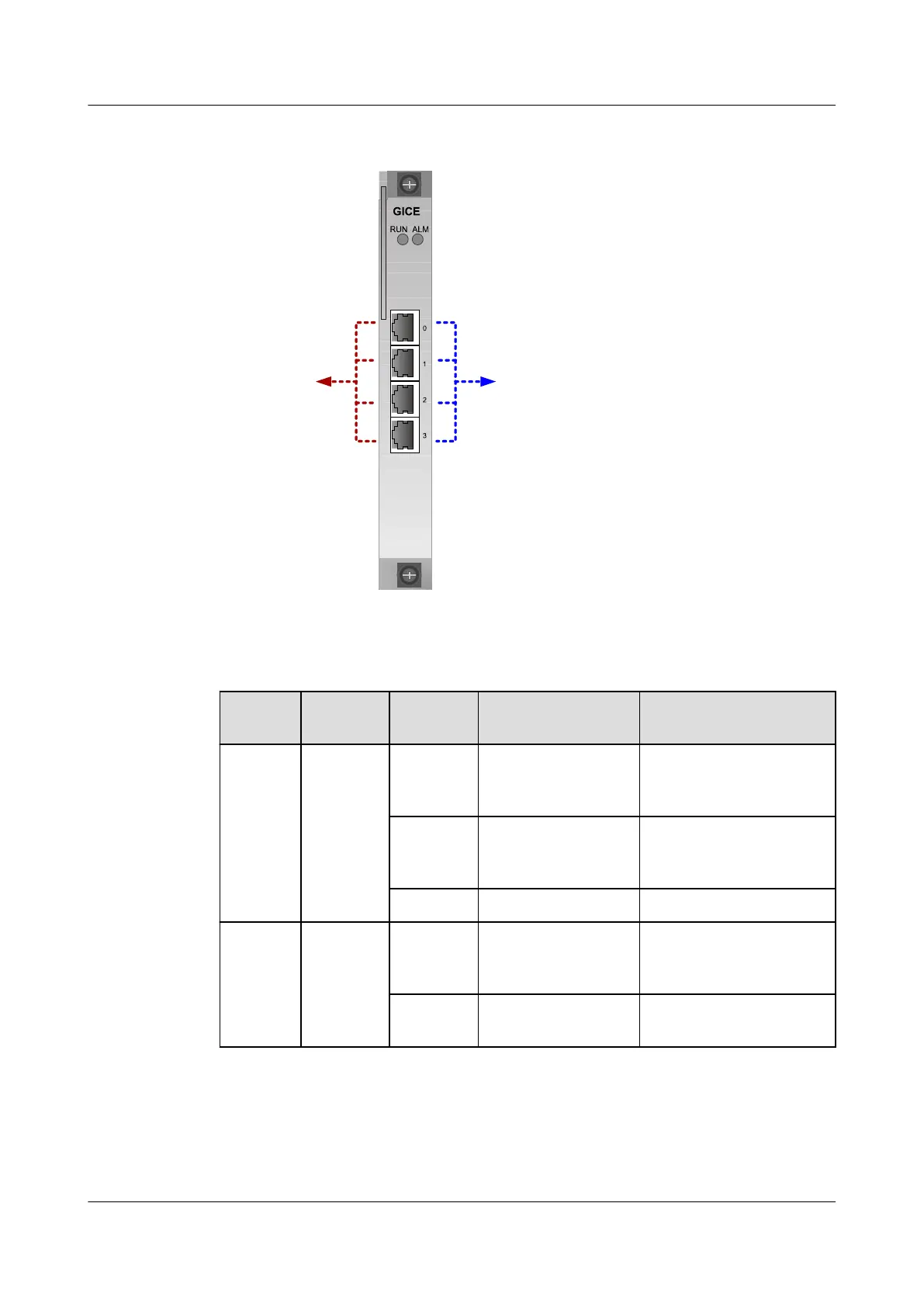

Front Panel Port
Connected to the GE port
of the upper-layer device
or the cascaded device
GE Electrical
upstream or
cascaded port
Indicator
Indicato
r
Name Color Status Meaning
RUN Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board functions
properly
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board starts up and is
being loaded with software
- Off The board is faulty
ALM Alarm
indicator
Red On The board is faulty or its
CPLD software is being
updated
- Off The board functions
properly
3.8.4 H801GICF Board Description
The H801GICF board is a 2-port GE optical interface card, providing upstream or cascading
optical ports.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
264
