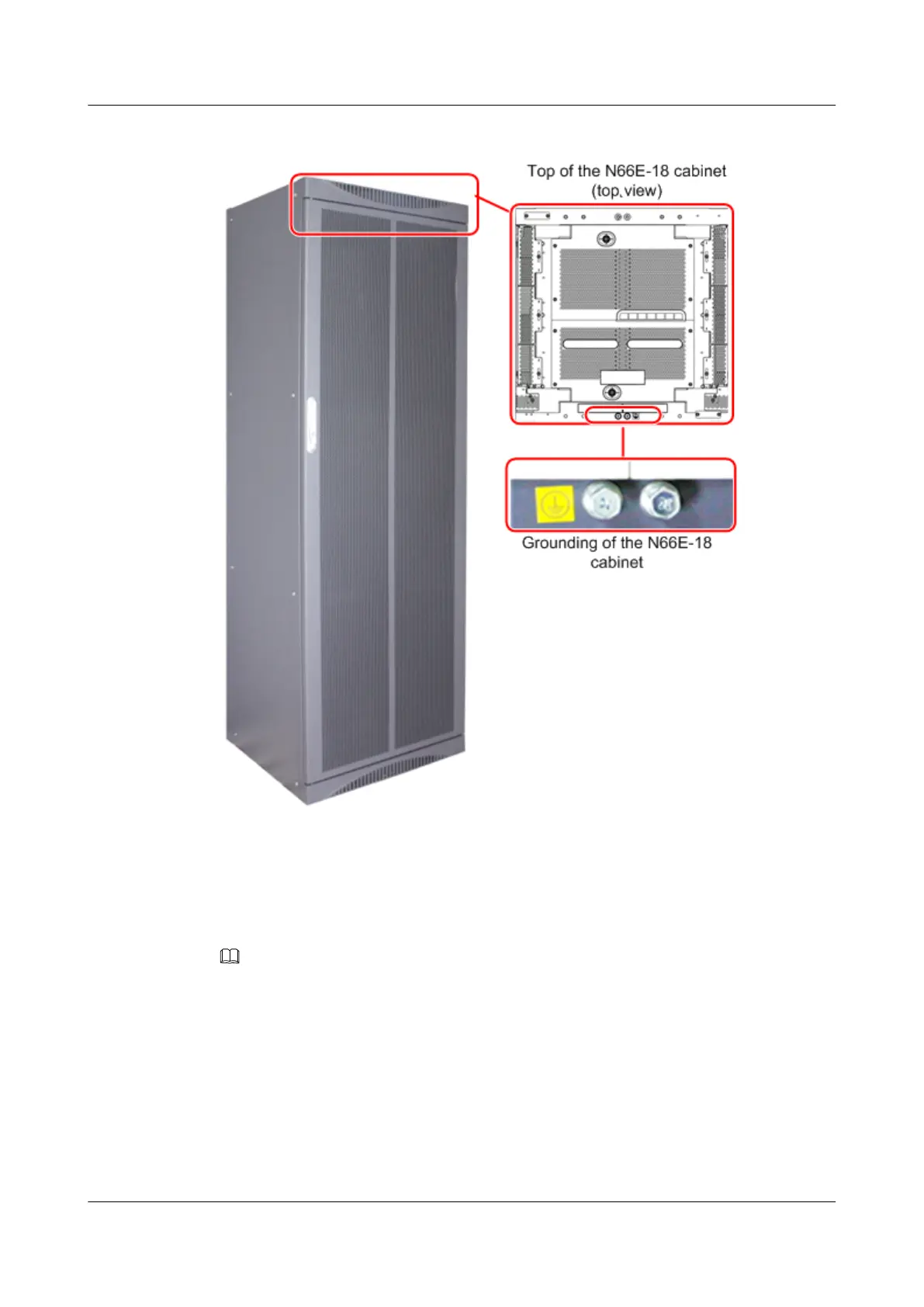

Figure 1-40 Grounding of the N66E-18 cabinet
1.2.10 External Connections
This topic describes the external connections of the N66E-18 cabinet.
NOTE
External cables are not used in the assembly and debugging of the integrated equipment, but are
delivered to the customers and installed on site.
For the external connections of the MA5600T (DC/AC-powered, two service subracks or one service
subrack+one SPL subrack) and MA5603T (DC-powered, two chassis), see the following similar figures.
External Connections of the DC-powered Cabinet with One Service Subrack and
One SPL Subrack (MA5600T)
Figure 1-41 and Figure 1-42 show the external connections of the DC-poweredN66E-18
cabinet installed with one service subrack and one SPL subrack.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
