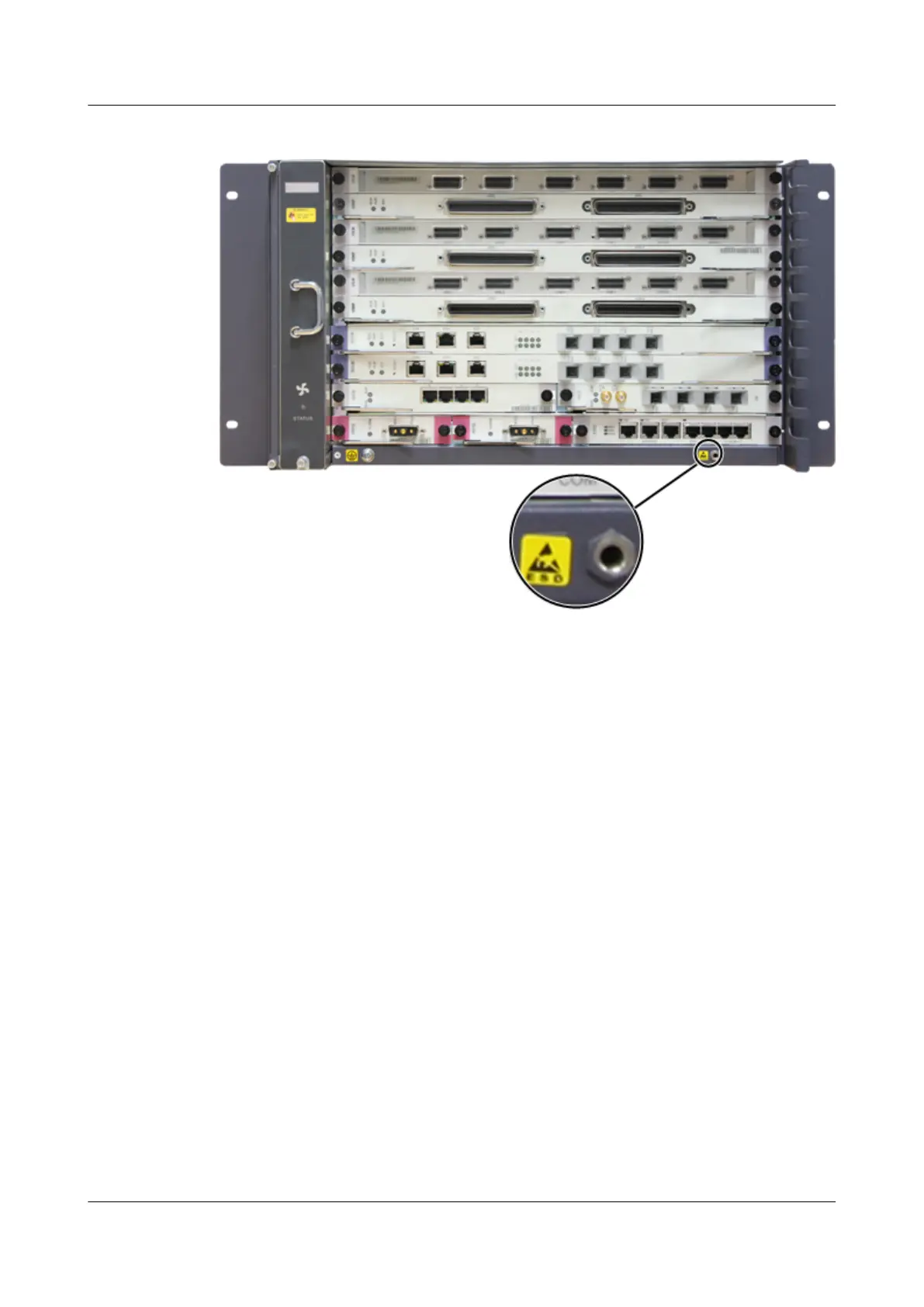

Figure 2-22 Position of the MA5603T chassis ESD jack
2.5.7 Air Filter
In the MA5603T chassis, the air filter is installed at the left of the chassis. This topic provides
the appearance, dimensions, and function of the air filters used in the MA5603T chassis.
Appearance and Dimensions
Figure 2-23 shows the appearance of the air filter in the MA5603T chassis.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
