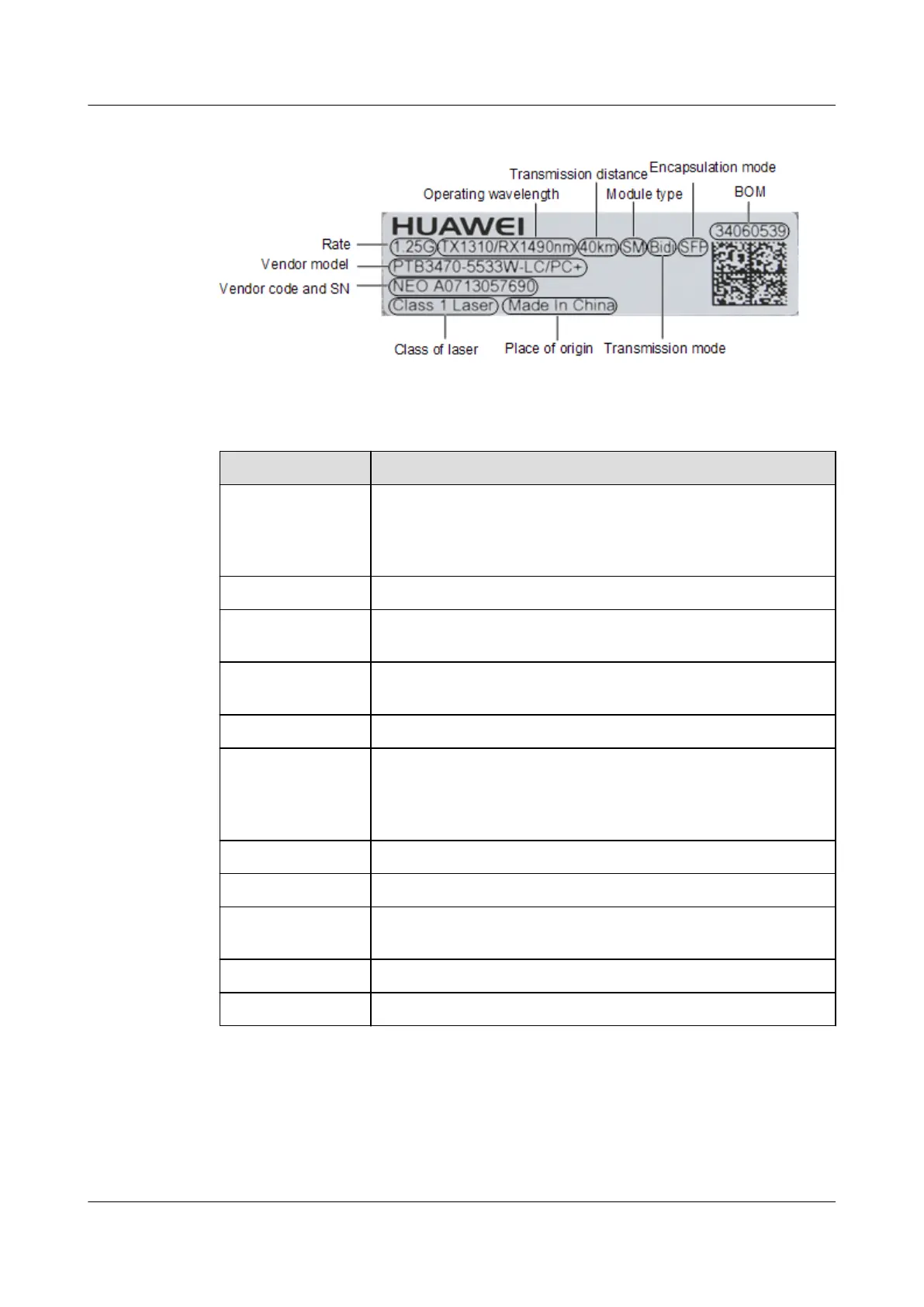

Figure 4-2 Appearance of the Label on a 10GE/GE/FE Optical Module
Table 4-2 Description of the Label on a 10GE/GE/FE Optical Module
Item
Description
Item number
(BOM)
Part identification code. It consists of 8-17 digits containing letters,
number, and symbols "-" and "=". It is also called part number (PN
for short). The BOM of optical and electrical modules consist of 8
or 12 digits.
Rate Rate of an optical module.
Operating
wavelength
Operating wavelength of an optical module.
Transmission
distance
Transmission distance of an optical module.
Fiber type The fiber type can be single-mode (SM) or multimode (MM).
Transmission mode Transmission mode of an optical module. For example, BIDI
indicates a one-fiber bi-directional optical module.
NOTE
This field is displayed on only GE optical modules.
Encapsulation mode Encapsulation mode of an optical module.
Vendor model Model of an optical module vendor.
Vendor code and
SN
Code and SN of an optical module vendor.
Class of laser Class of laser (CLASS 1 LASER) of an optical module.
Place of origin Place where an optical module is produced.
4.2 PON Optical Module
This topic describes the types, parameters, and relation with boards of PON optical modules.
Table 4-3 shows the relation between PON optical modules and boards.
