Specification Description
Wire gauge of the inner conductor 24 AWG
DC resistance of the inner conductor 98.0 ohms/km
Frequency attenuation <= 2.20 dB/100 m@1.024 MHz
Capacitance <= 56.0 pF/m@1 KHz
5.4 Clock Cable
This topic covers the applications, appearances, and technical specifications of Clock cables.

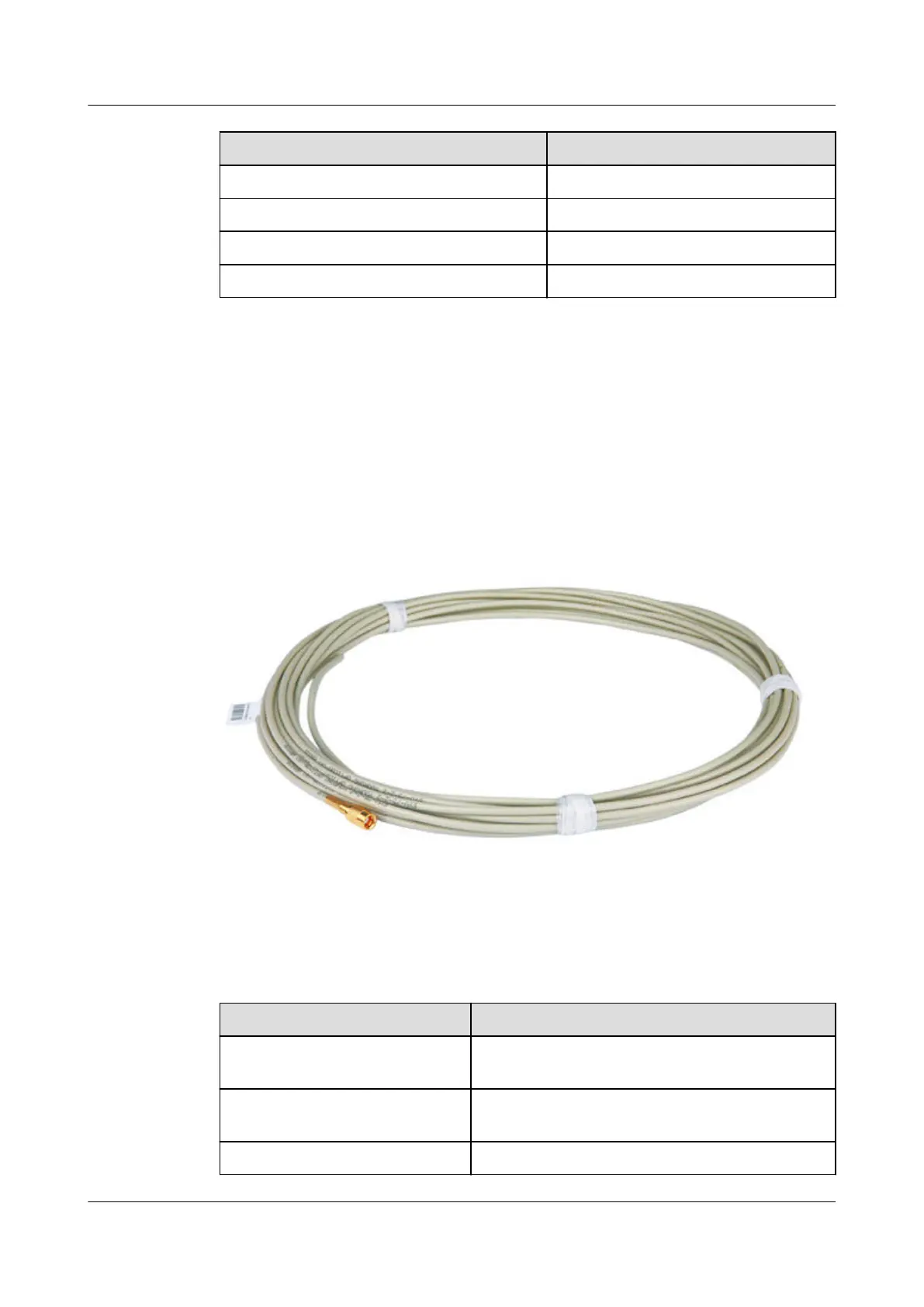

5.4.1 75-ohm Clock Cable
A 75-ohm clock cable is used to transmit clock signals.
Cable Connector
SMB connector
Connected to the clock port of
the BITS board
ConnectEd to the upper
layer or lower layer clock
device
Specification
Specification
Description
Connector Coaxial connector-SMB connector-75 ohms,
straight, female
Type Coaxial cable-75 ohms-3.9 mm-2.1 mm-0.34 mm-
shielded
Characteristic impedance 75.0 ohms
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
895
