Huawei SmartAX MA5600T Hardware Description

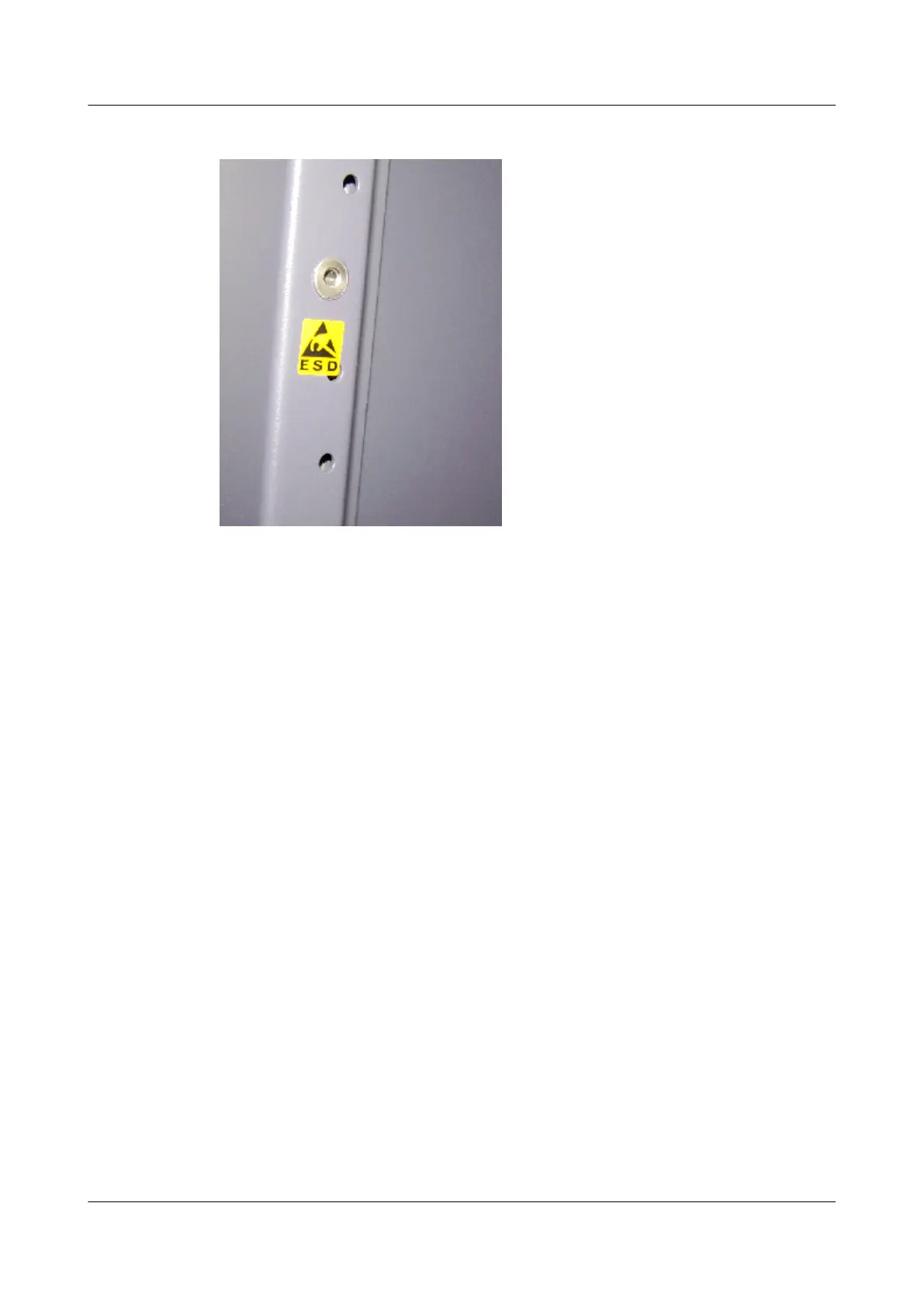

Figure 1-53 ESD jack of the N66E-22 cabinet
1.3.6 Air Filter
The N66E-22 cabinet is installed with an air filter on the inner side of the front door and at the
bottom. This topic provides the appearance and dimensions of the air filters, and describes the
material and maintenance of the air filters.
Appearance and Dimensions
In the N66E-22 cabinet, the air filters are installed on the inner side of the front door and at
the bottom of the cabinet.
Figure 1-54 and Table 1-9 lists the materials and dimensions of the air filter on the inner side
of the front door of the N66E-22 cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61
