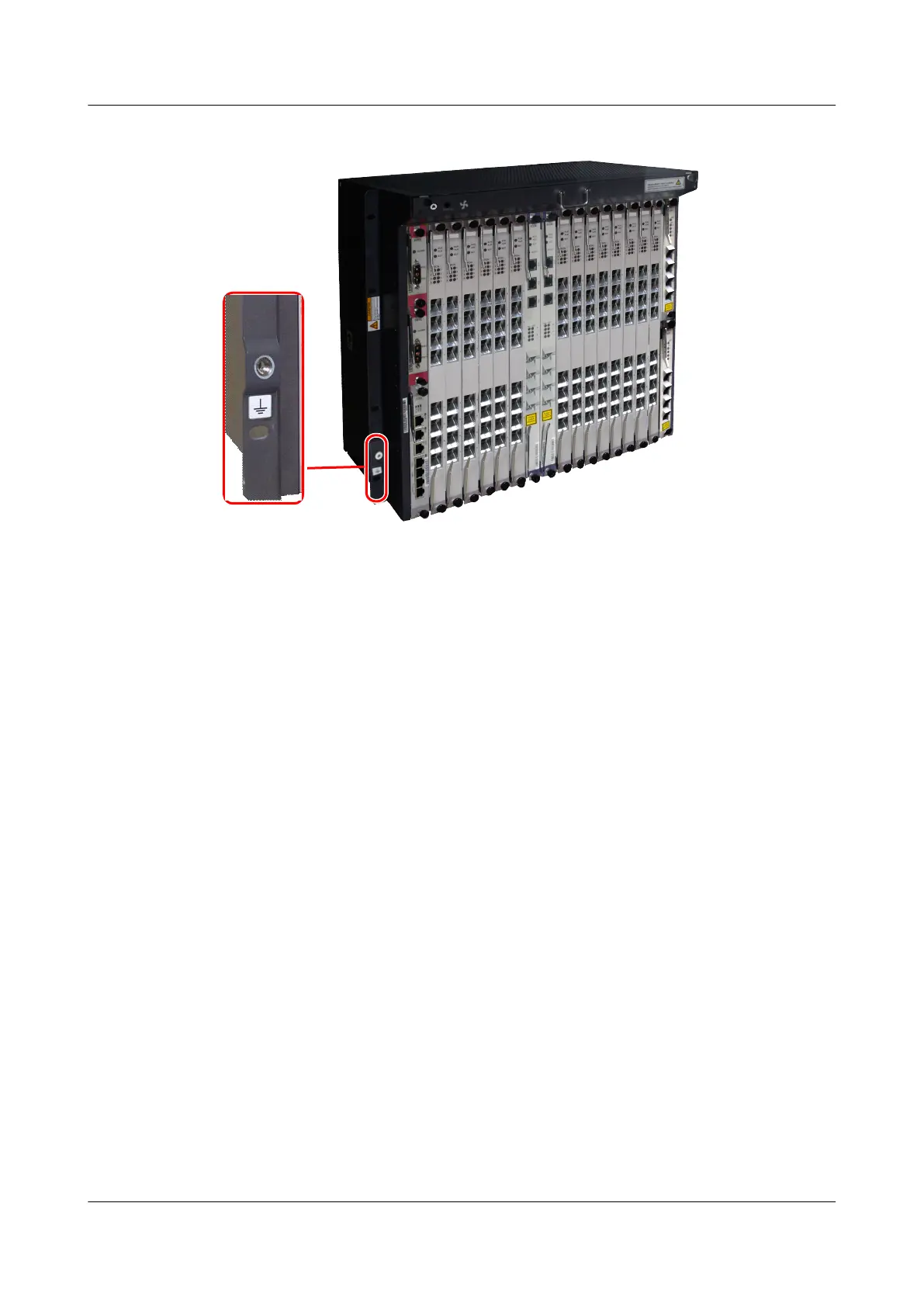

Figure 2-12 Grounding of the IEC subrack
2.3.8 Heat Dissipation
This topic describes the ventilation of the MA5600T IEC service subrack.
The MA5600T IEC service subrack has a fan tray at the top to exhaust hot air for heat
dissipation.
The airflow is as follows: The cool air enters the MA5600T IEC service subrack at the
bottom, and is blown towards the top side by the fans, and finally, exits at the top side of the
MA5600T IEC service subrack.Figure 2-13 shows the heat dissipation of the MA5600T IEC
service subrack.
