Huawei SmartAX MA5600T Hardware Description

Technical Specifications
Specification Description
Connector type DB-9 female + Ethernet port 8-pin/DB-25 female
Cable type Symmetrical twisted pair
Color Dark blue
Wire diameter of the inner
conductor
0.38 mm
Wire gauge of the inner
conductor
28 AWG (cross-sectional area ≈ 0.08 mm
2
)
Number of wires 8

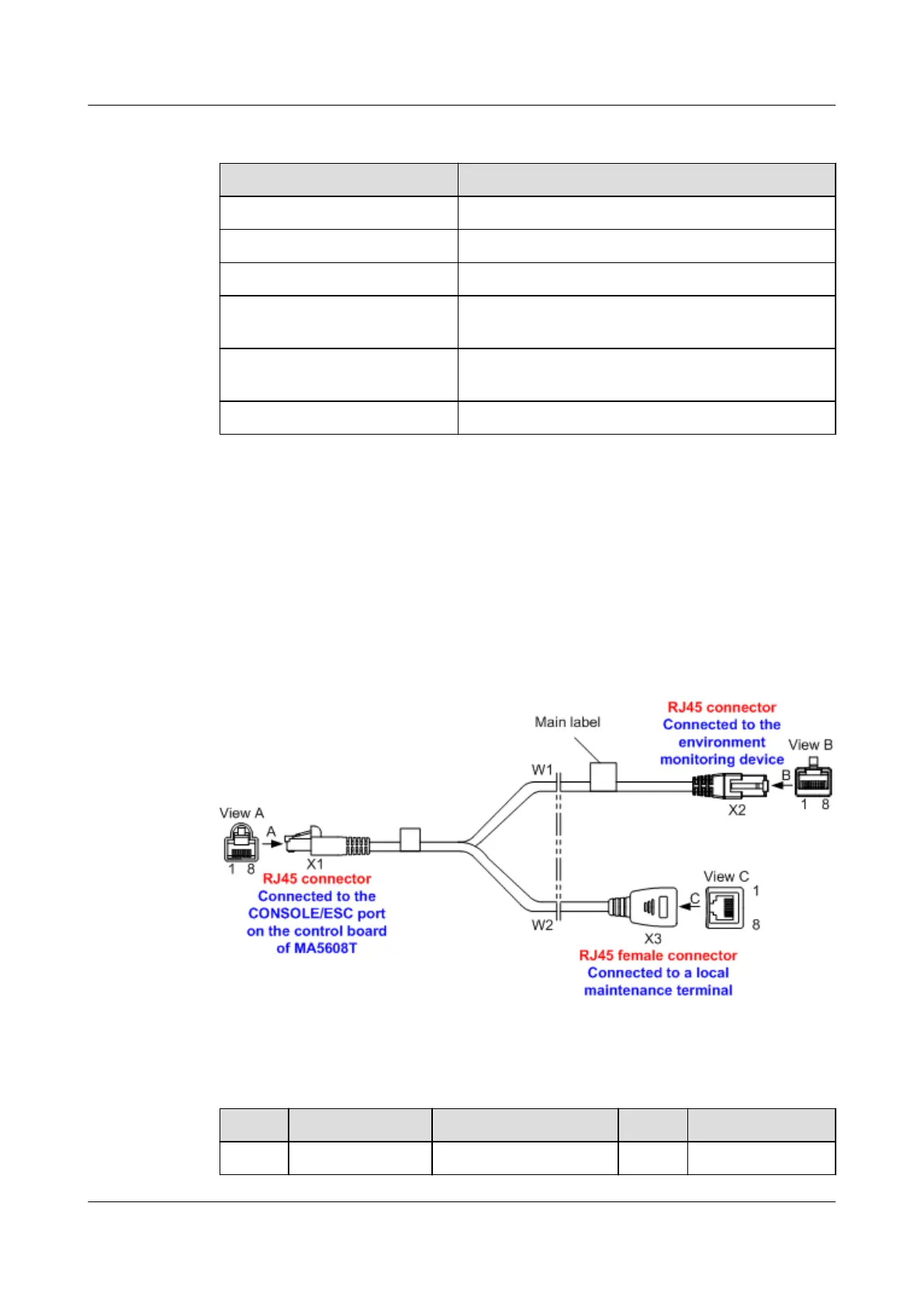

5.9 Local Maintenance and Environment Monitoring
Combo Cable
A local maintenance and environment monitoring combo cable is connected to a local
maintenance terminal or an environment monitoring device for debugging and maintaining
the main device or reporting the monitoring information to the control board.
Cable Connector
Pin Assignments
Cable
Connector X1 Connectors X2 and X3 Color Relationship
W1 X1.1 X2.4 White Pair
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
906
