Huawei SmartAX MA5600T Hardware Description

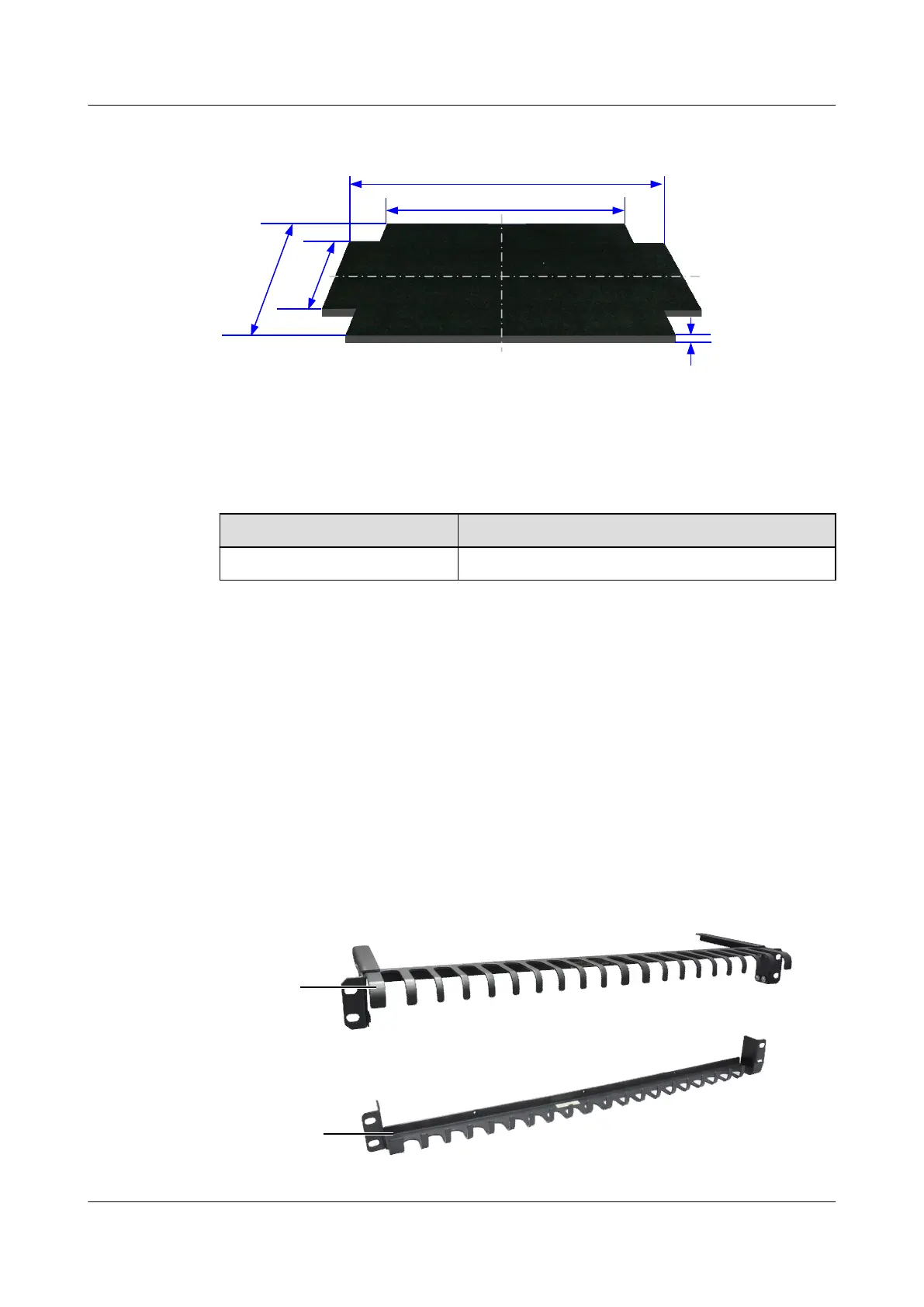

Figure 1-13 Appearance of the air filter at the bottom of the N63E-22 cabinet
1
1
6
m
m
7mm
1
8
0
m
m
269mm
345mm
Table 1-3 lists the materials and dimensions of the air filter at the bottom of the N63E-22
cabinet.
Table 1-3 Materials of the air filter at the bottom of the N63E-22 cabinet
Cabinet
Material
N63E-22 50PPI (50 sponge picks per inch) black sponge
Function
The air filter on the inner side of the front door prevents dust from entering the cabinet.
During the ventilation, cool air enters the cabinet through the air intake vent at the bottom of
the cabinet. The air filter at the bottom of the cabinet prevents dust from entering the cabinet.
1.1.8 Cable Manager
This topic describes the appearance and functions of the cable manager.
Appearance
Figure 1-14shows the appearance of the cable manager.
Figure 1-14 Appearance of the cable manager
Upper
cable
manager
Lower
cable
manager
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
