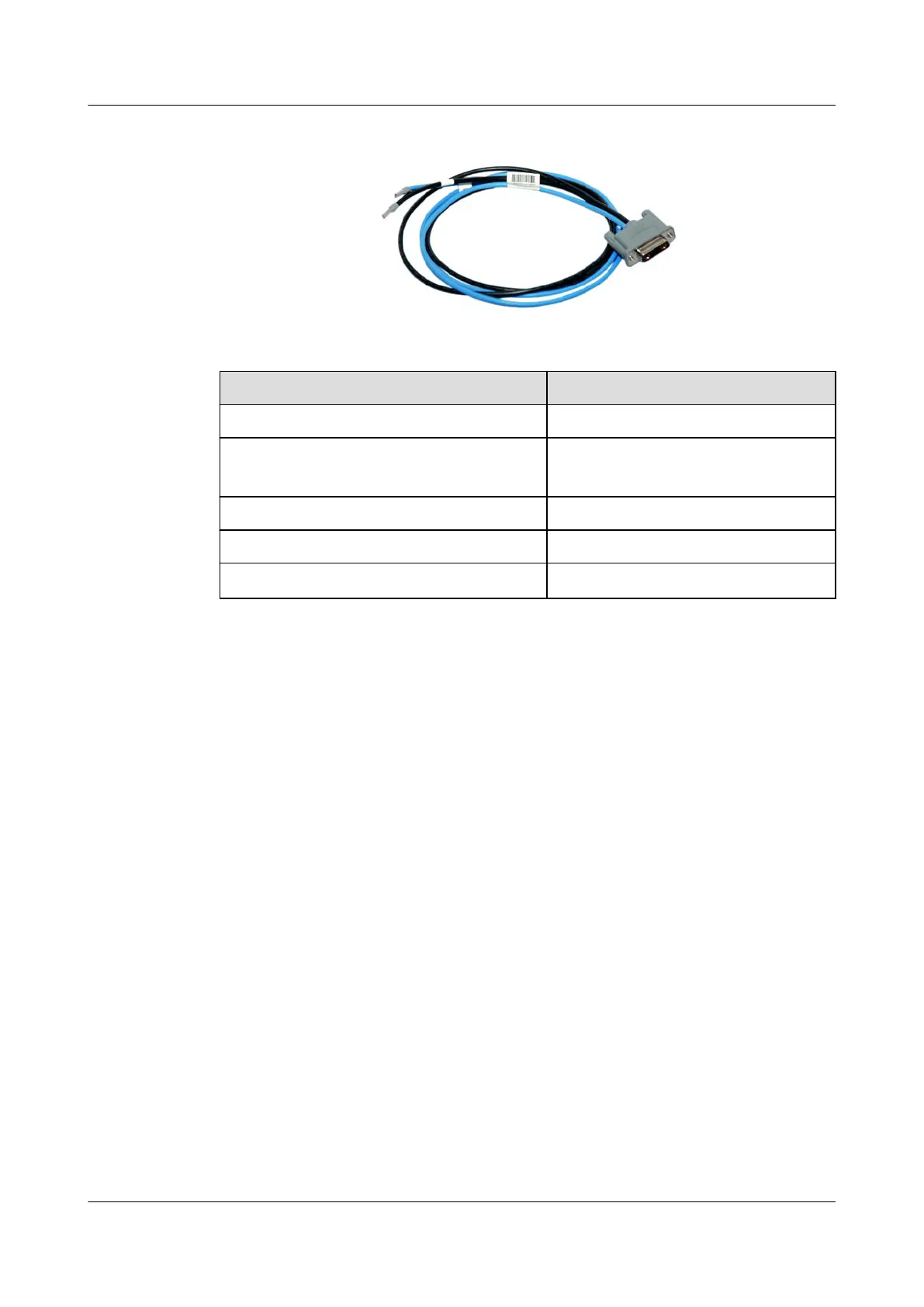

Cable Connector
Cord end terminals
Connected to the output
port of the DC power
supply
D type 3PIN female
Connected to the input
port on the power board
of the device
Specification
Specification
Description
Type Electric power cable
Color
l Blue (-)
l Black (+)
DC resistance of the inner conductor 3.3 ohms/km
Maximum current 40 A
Cross-sectional area of the conductor
6 mm
2
5.1.3 AC Power Cable (Cabinet)
AC power cable supplies power and ensures that the load works in the normal state.
Application
The AC power cable connects the power port of the device to the external power supply. The
AC power cable is connected as follows:
l One end of the AC power cable connects to the output port of the AC power supply.
l The other end of the AC power cable connects to the input port on the power system of
the device.
Appearance
Figure 5-3 shows the appearance of the AC power cable.
