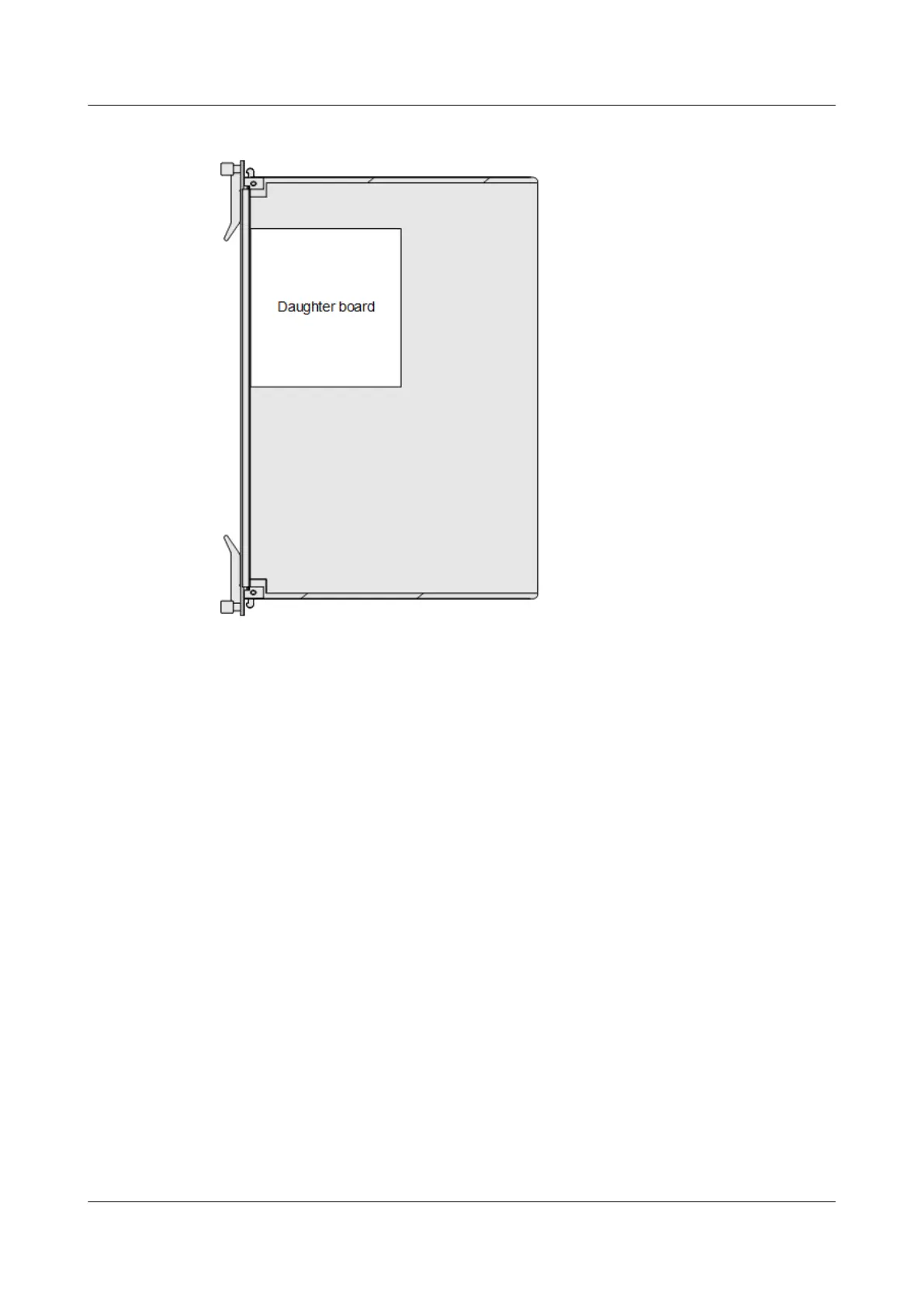

Figure 3-10 Position of the daughter board on the H801SCUF board
3.6.5 H801SCUH Board Description
The H801SCUH board is a super control unit board. It is the core of the system control and
service switching and aggregation. The H801SCUH board can also function as the
management and control core of the integrated network management system (NMS). It
communicates with service boards about the key management and control information
through the master/slave serial port and inband 10GE/20GE channel. In this manner, the
H801SCUH board configures, manages, and controls the device, and also implements the
simple route protocol functions.
Functional Specifications
Please refer to "SCU boards Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
