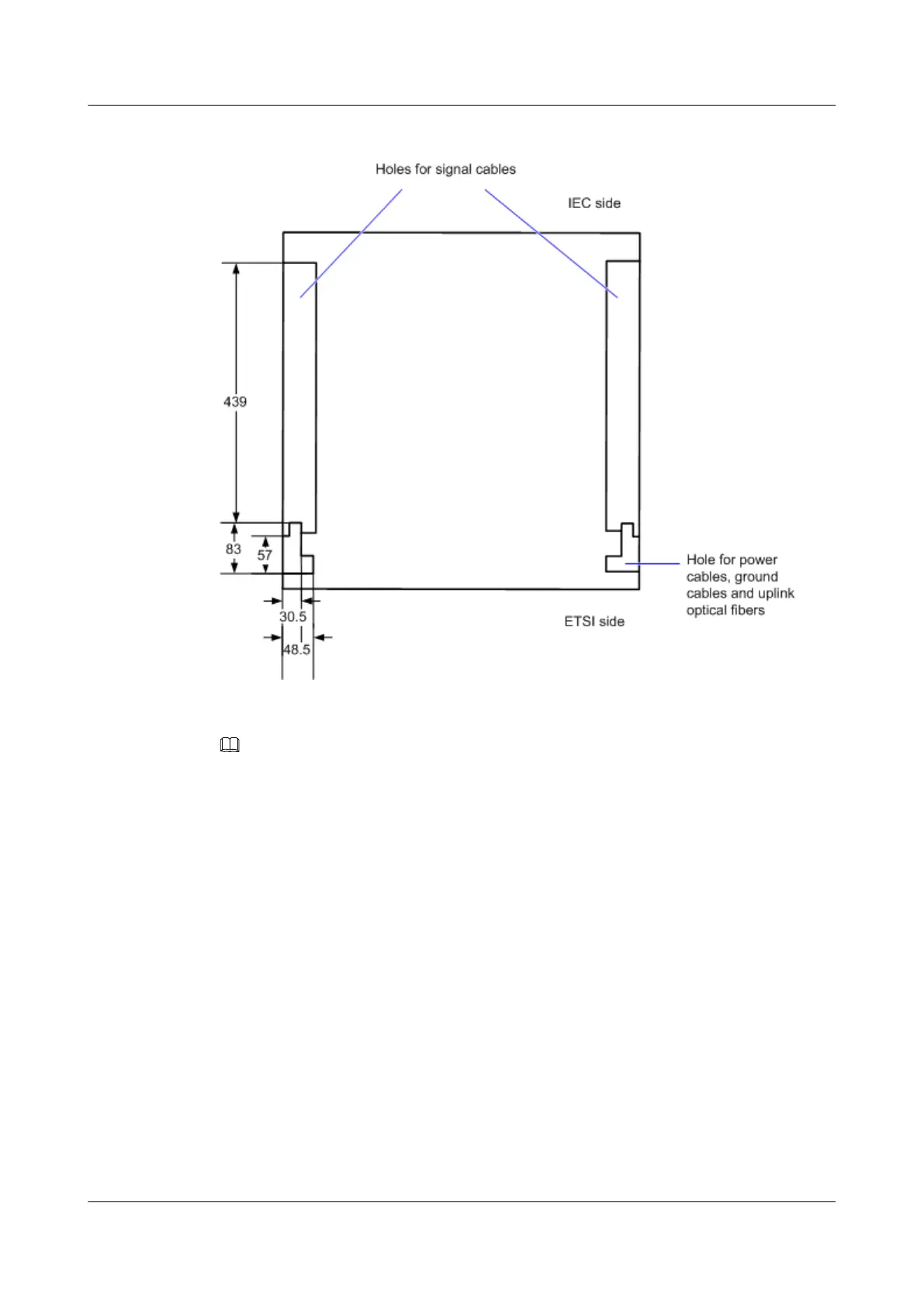

Figure 1-35 Cable holes at the bottom of the cabinet (top view)
NOTE
The unit for figures in this topic is mm, unless otherwise stated.
1.2.6 ESD Jack
The ESD jack of the N66E-18 dual-standard cabinet is on the middle of the left mounting
angle, which is used to connect the ESD wrist strap to prevent device damage caused by
electrostatic discharge.
The position of the N66E-18 dual-standard cabinet ESD jack, as shown in Figure 1-36.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
43
