3.9.4 H801CITD Board Description
The H801CITD board is a combo interface transfer board. It provides the input and output
clock source for the system and supports functions such as input and output of alarm digital
parameters.
NOTE
As shown in Figure 3-41, the H801CITD board has the following changes after an upgrade from Ver.A
to Ver.B:
l Ports are adjusted by 180 degrees.
l An ejector lever is added, facilitating board insertion and removal.

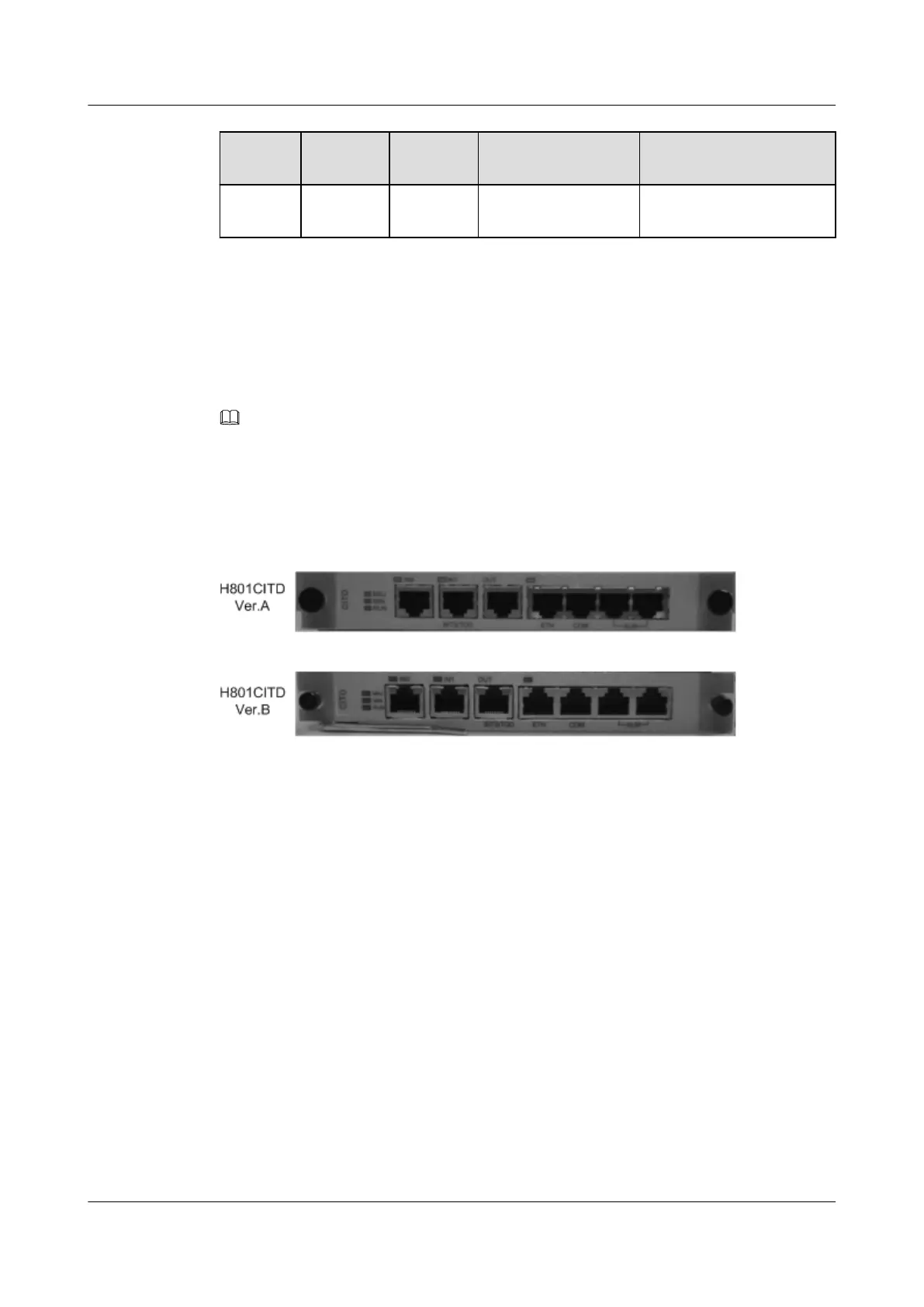

Figure 3-41 Differences in appearance between Ver.A and Ver.B
Functional Specifications
The H801CITD board supports the following functions:
l Seven inputs of alarm digital parameters and one output of digital controlling parameters
l External monitoring Ethernet port to transparently transmit monitored data
l When configured with the BITSB clock daughter board, the CITD board also provides
the following functions:
– Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
– Two inputs of 1 PPS+TOD time signals(supported in V800R013C10 and later
versions)
– One output of 2 Mbit/s or 2 MHz clock signals
– One output of 1PPS time signals (supported in V800R013C10 and later versions)
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
